24" large-format printer - color - ink-jet - Roll A1 (24 in x 300 ft) - 2400 x 1200 dpi - up to 0.4 min/page (mono) / up to 0.4 min/page (color) - USB 2.0, Gigabit LAN, Wi-Fi(n) - cutter
| Main Specifications | |
|---|---|

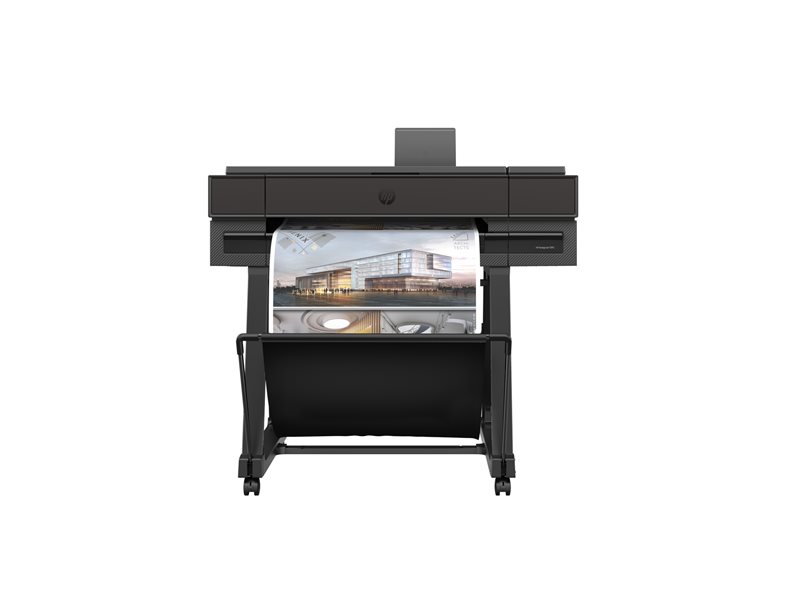

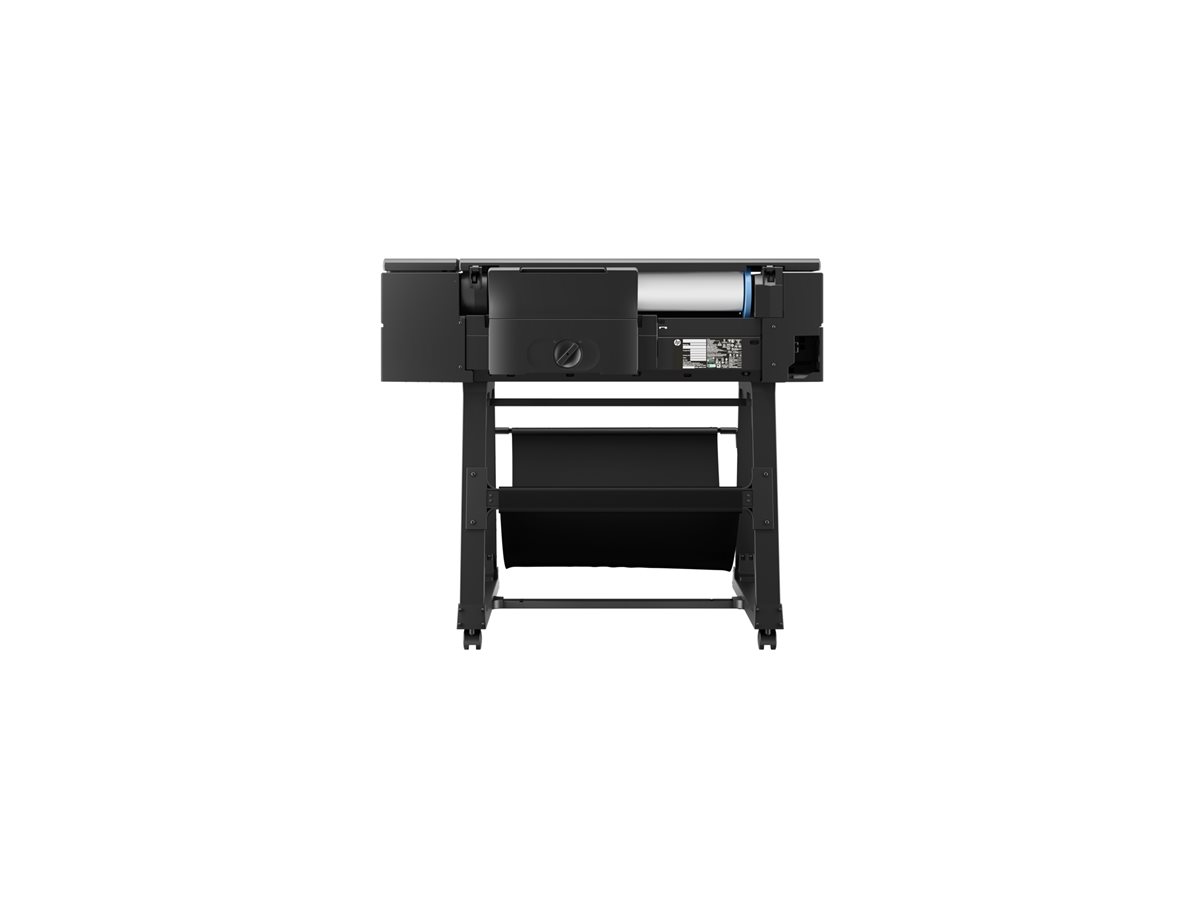

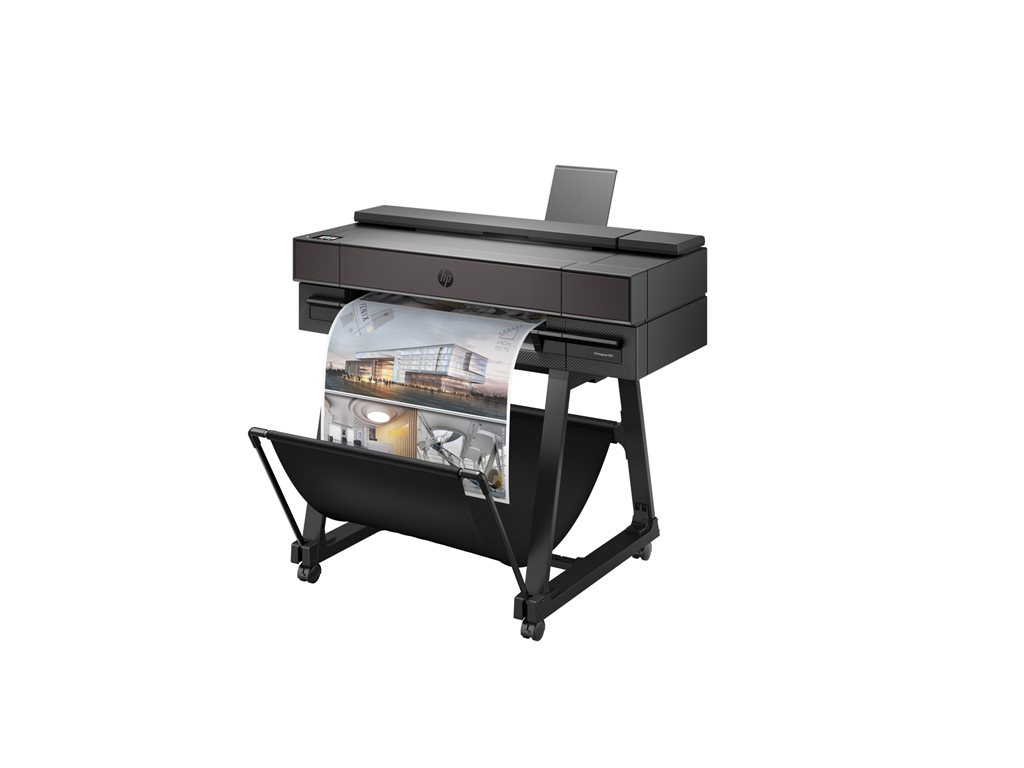

| Product Description | HP DesignJet T870 - large-format printer - color - ink-jet |
| Printer Type | 24" large-format printer - ink-jet - color |
| EU Data Act | Https://compliance-euda.hp.com/ |
| Weight | 84.88 lbs |
| Localization | English, French, Portuguese, Spanish / Canada, Latin America, United States |
| Inkjet Technology | HP Thermal Inkjet |
| Ink Palette Supported (Colors) | 4-ink - pigment cyan, pigment magenta, pigment yellow, pigment matte black |
| Max Media Size | Roll A1 (24 in x 300 ft) |
| Max Media Size (Custom) | 24 in |
| Print Speed | Up to 0.4 min/page - A1 (23.4 in x 33.1 in) ¦ Up to 3 ppm - ANSI D (22 in x 34 in) |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Cutter | Yes |
| Interface | USB 2.0, Gigabit LAN, Wi-Fi(n) |
| AirPrint Enabled | Yes |
| RAM Installed (Max) | 1 GB (1 GB) |
| Language Simulation | HP RTL, CALS G4, HP GL/2, PDF, TIFF, URF, JPEG |
| Media Type | Bond paper, film, opaque banner, photographic paper, technical paper, self-adhesive paper, heavy paper, coated paper |
| Networking | Print server |
| Printer Features | Wireless Direct Print, 8 kg max roll weight, 2.7 GB job storage memory |
| Power | AC 100-240 V |
| Manufacturer Warranty | 2-year warranty |
| Dimensions (WxDxH) | 43.3 in x 27.2 in x 36.8 in |
| General | |
| Printer Type | 24" large-format printer - ink-jet - color |
| EU Data Act | Https://compliance-euda.hp.com/ |
| Localization | English, French, Portuguese, Spanish / Canada, Latin America, United States |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 ¦ 1 x Gigabit LAN |
| Manufacturer Warranty | |
| Service & Support | Limited hardware warranty - 2 years |
| Miscellaneous | |

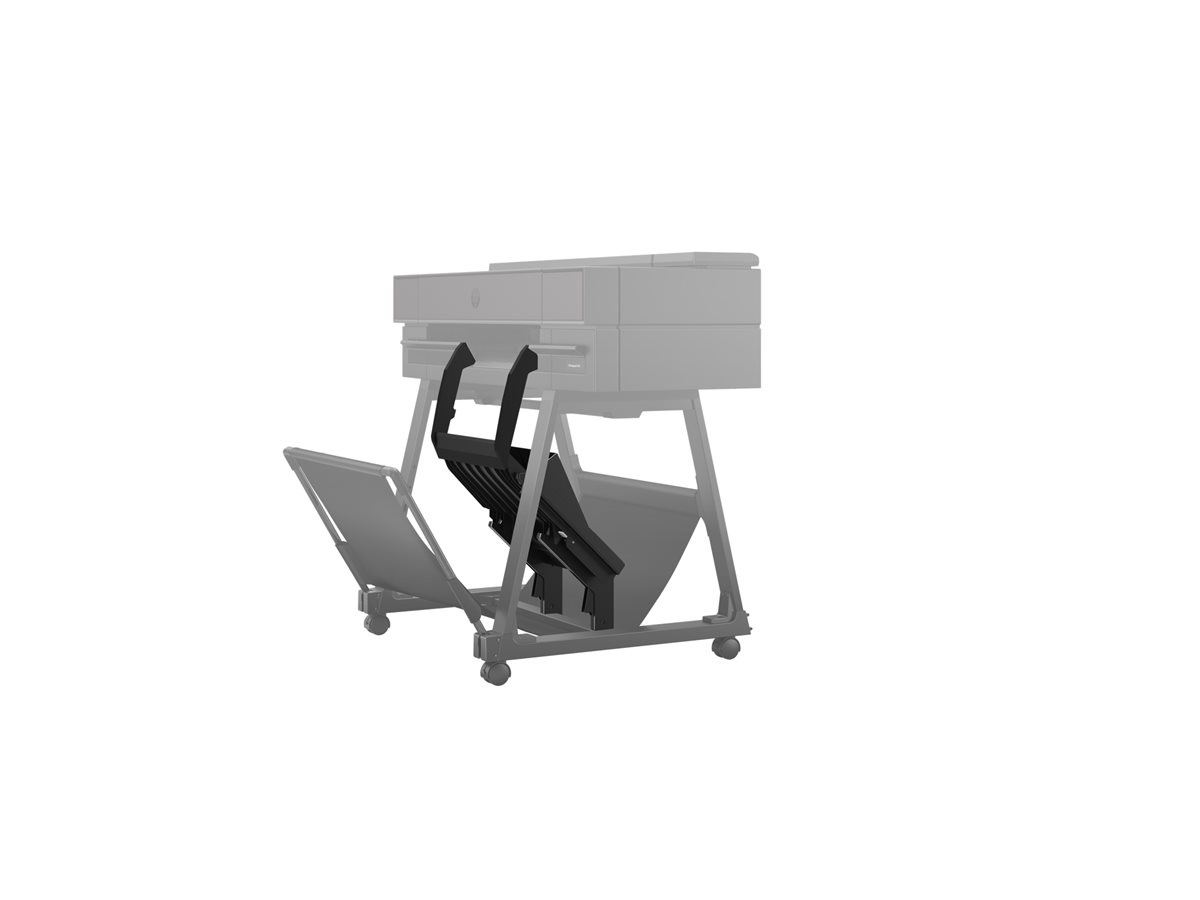

| Included Accessories | Spindle, stand |
| Consumables Included | 1 x ink cartridge (cyan) ¦ 1 x ink cartridge (magenta) ¦ 1 x ink cartridge (yellow) ¦ 1 x ink cartridge (matte black) ¦ 1 x printhead |
| Compliant Standards | FCC Class B certified, CSA, CCC, PSB, IRAM, RoHS, ICES Class B, CCC Class B, WEEE, REACH, KCC Class B, ERP, VCCI Class B, BIS, EN 62368-1, RED, NYCE, UL ECOLOGO certified inks, ACMA Class B, RSM Class B |
| Printer | |
| Inkjet Technology | HP Thermal Inkjet |
| Ink Palette Supported (Colors) | 4-ink - pigment cyan, pigment magenta, pigment yellow, pigment matte black |
| Nozzle Configuration | 5504 nozzles |
| Ink Cartridge Configuration | 4 cartridges (1 each: pigment cyan, pigment magenta, pigment yellow, pigment matte black) |
| Print Speed | Up to 0.4 min/page - A1 (23.4 in x 33.1 in) ¦ Up to 3 ppm - ANSI D (22 in x 34 in) |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, Gigabit LAN, Wi-Fi(n) |
| AirPrint Enabled | Yes |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Language Simulation | HP RTL, CALS G4, HP GL/2, PDF, TIFF, URF, JPEG |
| Cutter | Yes |
| Printer Features | Wireless Direct Print, 8 kg max roll weight, 2.7 GB job storage memory |
| RAM | |
| RAM Installed (Max) | 1 GB / 1 GB (max) |
| Media Handling | |
| Media Type | Bond paper, film, opaque banner, photographic paper, technical paper, self-adhesive paper, heavy paper, coated paper |
| Max Media Size | Roll A1 (24 in x 300 ft) |
| Max Media Size (Custom) | 24 in |
| Media Weight | 60 g/m² - 280 g/m² |
| Media Feeders | ADF: - 50 sheets |
| Networking | |
| Networking | Print server |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 35 watt |
| Power Consumption Stand by | 5.5 watt |
| Power Consumption Sleep | 2.5 watt |
| Software / System Requirements | |
| Software Included | HP Click |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 70% RH (non-condensing) |
| Sound Emission (Operating) | 40 dBA |
| Dimensions & Weight | |
| Width | 43.3 in |
| Depth | 27.2 in |
| Height | 36.8 in |
| Weight | 84.88 lbs |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 51.6 in |
| Depth (Shipping) | 22.4 in |
| Height (Shipping) | 25.2 in |
| Weight (Shipping) | 106.92 lbs |
| Environmental Standards | |
| ENERGY STAR | Yes |
