Voltage sensor
| Main Specifications | |
|---|---|

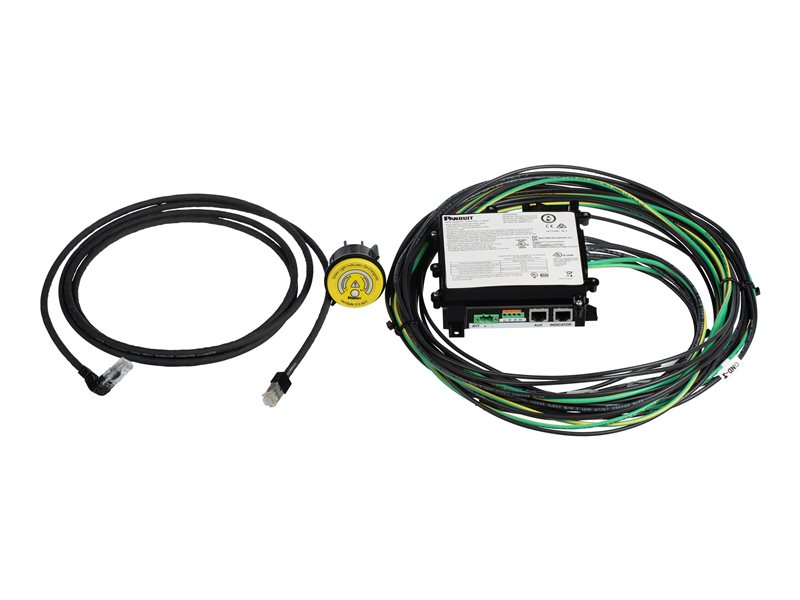

| Product Description | Panduit VeriSafe - voltage sensor |
| Product Type | Voltage sensor |
| Placing / Mounting | Wall-mounting |
| Power Source | Hardwired, PoE |
| Dimensions (WxDxH) | 1.8 in x 2.4 in x 1.8 in |
| General | |
| Product Type | Voltage sensor |
| Power Source | Hardwired, PoE |
| Placing / Mounting | Wall-mounting |
| Features | Overvoltage protection, LED indicator, voltage indicatior, up to 1000V detection range, 3 phase |
| Miscellaneous | |
| Included Accessories | Sensor cable (3 m), cable (2.4 m) |
| Voltage Required | DC 12-24 V / PoE V |
| Compliant Standards | IP66, NEMA Type 4X, UL 1436, CSA C22.2 No. 61010-1, EN 61010-1, UL 61010-1, CSA C22.2 No. 14, UL 508, IEC 61508, CISPR 11, EN 55011, EN 61326, FCC CFR47 Part 15, CAN ICES-1, UL 50E, CSA C22.2 No. 94.2-15, IEC 60529, IEC 61508-2, IEC 61508-3, CSA C22.2 No.14-13, CSA C22.2 No.61010-2-030-12, IEC 61010-1, IEC 61010-2-030, UL 61010-2-030, EN 61326-1, ICES-001, EN 61000-6-2, FCC Subpart B 15.107, RoHS |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.8 in |
| Depth | 2.4 in |
| Height | 1.8 in |
| Dimensions & Weight Details | Isolation module: 4.3 in x 5.3 in x 1.7 in |
