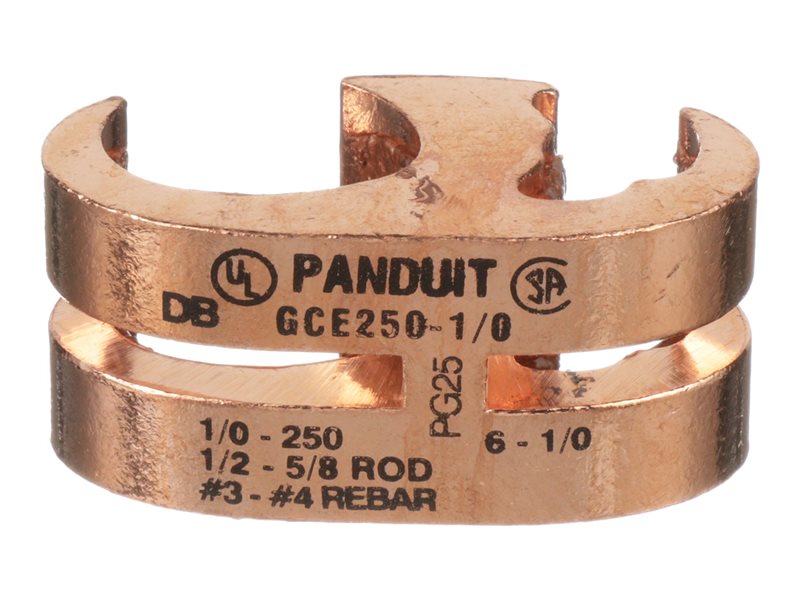

Grounding connector - E-Style (pack of 25)
| Main Specifications | |
|---|---|
| Product Description | Panduit StructuredGround grounding connector - E-Style |
| Product Type | Grounding connector - E-Style |
| Packaged Quantity | 25 (specifications are for single item) |
| Dimensions (WxDxH) | 1.1 in x 1 in x 2.7 in |
| Product Material | High conductivity copper |
| Compliant Standards | CSA 22.2, cULus, IEEE 837-2002, IEEE 837-2014 |
| General | |
| Packaged Quantity | 25 (specifications are for single item) |
| Product Type | Grounding connector - E-Style |
| Product Material | High conductivity copper |
| Width | 1.1 in |
| Depth | 1 in |
| Height | 2.7 in |
| Miscellaneous | |
| Features | "E" style, Panduit die index PG25, conductor size 250 kcmil, for 5/8" ground rod size, color-coded (black), rebar size 3/8" - 1/2", 1/0 STR - 250 kcmil copper conductor size |
| Compliant Standards | CSA 22.2, cULus, IEEE 837-2002, IEEE 837-2014 |
