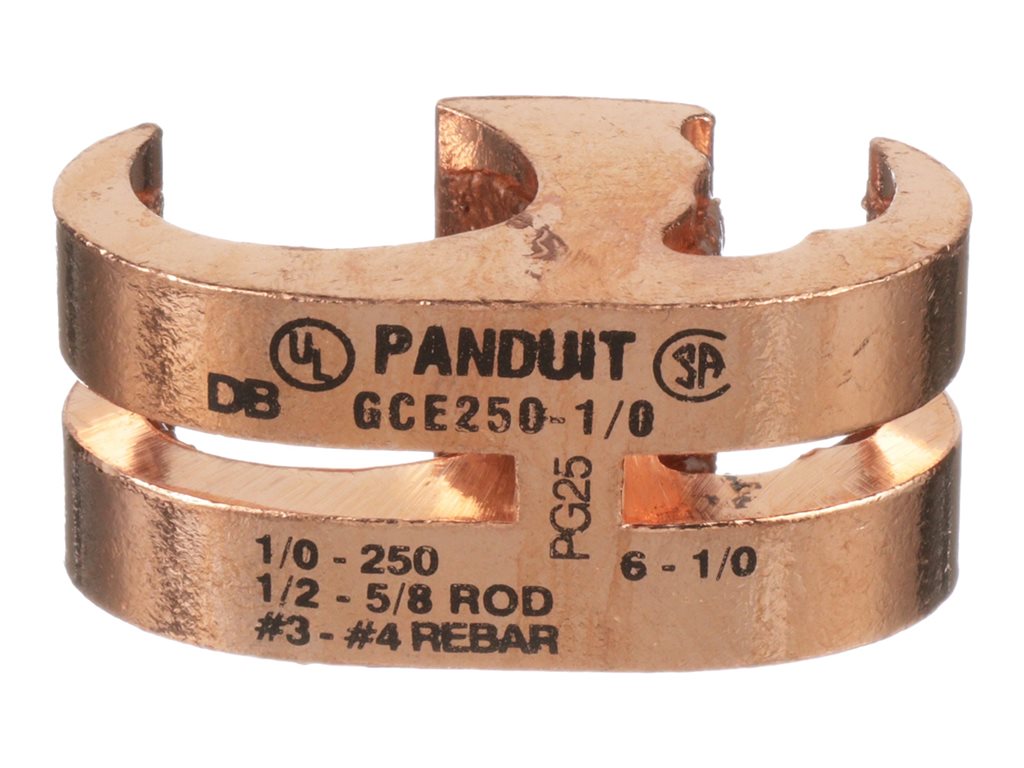

Grounding connector - E-Style (pack of 25)
| Main Specifications | |
|---|---|
| Product Description | Panduit StructuredGround grounding connector - E-Style |
| Product Type | Grounding connector - E-Style |
| Packaged Quantity | 25 (specifications are for single item) |
| Package Content | Cable clamp |
| Dimensions (WxDxH) | 1.1 in x 1 in x 2.2 in |
| Product Material | High conductivity copper |
| Compliant Standards | CSA 22.2, cULus, IEEE 837-2002, IEEE 837-2014 |
| General | |
| Packaged Quantity | 25 (specifications are for single item) |
| Product Type | Grounding connector - E-Style |
| Package Content | Cable clamp |
| Product Material | High conductivity copper |
| Width | 1.1 in |
| Depth | 1 in |
| Height | 2.2 in |
| Miscellaneous | |
| Features | "E" style, color-coded (black), Panduit die index PG25, 1/0 STR - 250 kcmil copper conductor size, #6 SOL - 1/0 STR copper conductor size range, rebar size 3/8" - 1/2", for 5/8" ground rod size |
| Compliant Standards | CSA 22.2, cULus, IEEE 837-2002, IEEE 837-2014 |
