Application accelerator - 10GbE - 1U - 1 node - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Nutanix Xtreme Computing Platform NX-8170-G10 - application accelerator |
| Device Type | Application accelerator |
| Form Factor | Rack-mountable - 1U |
| Processor | 2 x Intel Xeon 6728P - 2.7 GHz |
| RAM | 4096 MB (max) |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Included Accessories | 2 power cords, rack mount kit |
| Pricing Type | 1 node |
| Dimensions (WxDxH) | 17.2 in x 29.4 in x 1.7 in |
| General | |
| Device Type | Application accelerator |
| Height (Rack Units) | 1U |
| Built-in Devices | 8 x 40x56 mm fan, 2 x 480 GB SSD OS Drive |
| Width | 17.2 in |
| Depth | 29.4 in |
| Height | 1.7 in |
| Expansion / Connectivity | |

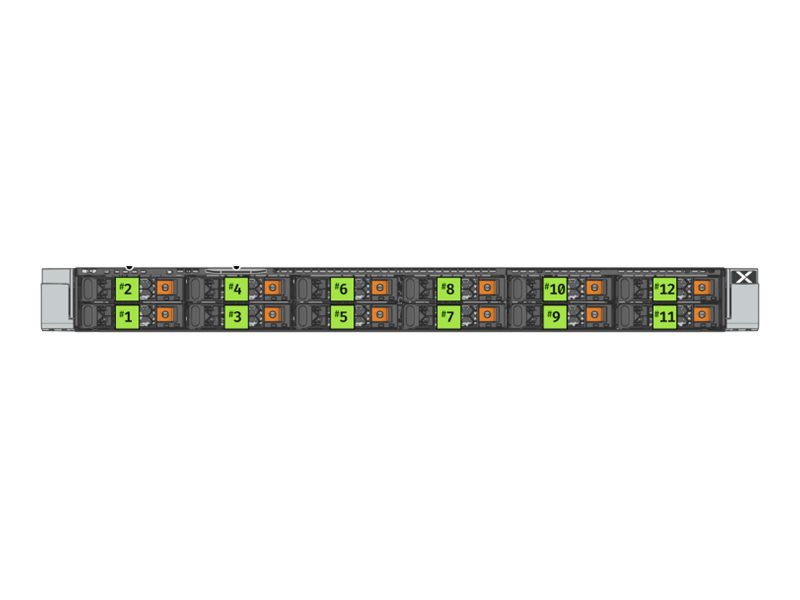

| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" |
| Expansion Slots | 3 (total) / 3 (free) x expansion slot ¦ 2 (total) / 0 (free) x M.2 ¦ 32 (total) / 32 (free) x DIMM 288-pin |
| Interfaces | 1 x VGA - HD-15 ¦ 1 x IPMI - RJ-45 ¦ 2 x USB 3.2 - Type A ¦ 1 x 10GBase-T - RJ-45 ¦ 1 x 10GBase-T - RJ-45/SFP+ |
| Miscellaneous | |
| Included Accessories | 2 power cords, rack mount kit |
| Compliant Standards | ACMA, BIS, BSMI, CSA, EAC, EN, Energy Star, FCC, ICES, KC, NOM, NRCS, RCM, S Mark, UKCA, UkrSEPRO, UL, VCCI |
| Pricing Type | 1 node |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Status Indicators | Information, drive, power, port status |
| Features | 24-core CPU, UID button, Trusted Platform Module 2.0 (TPM 2.0) |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 2000 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 86 °F |
| Humidity Range Operating | 8 - 90% |
| Processor / Memory / Storage | |
| Processors Installed | 2 x Intel Xeon 6728P 2.7 GHz |
| Max Supported Qty | 2 |
| RAM | (4096 MB max) DIMM 288-pin |
