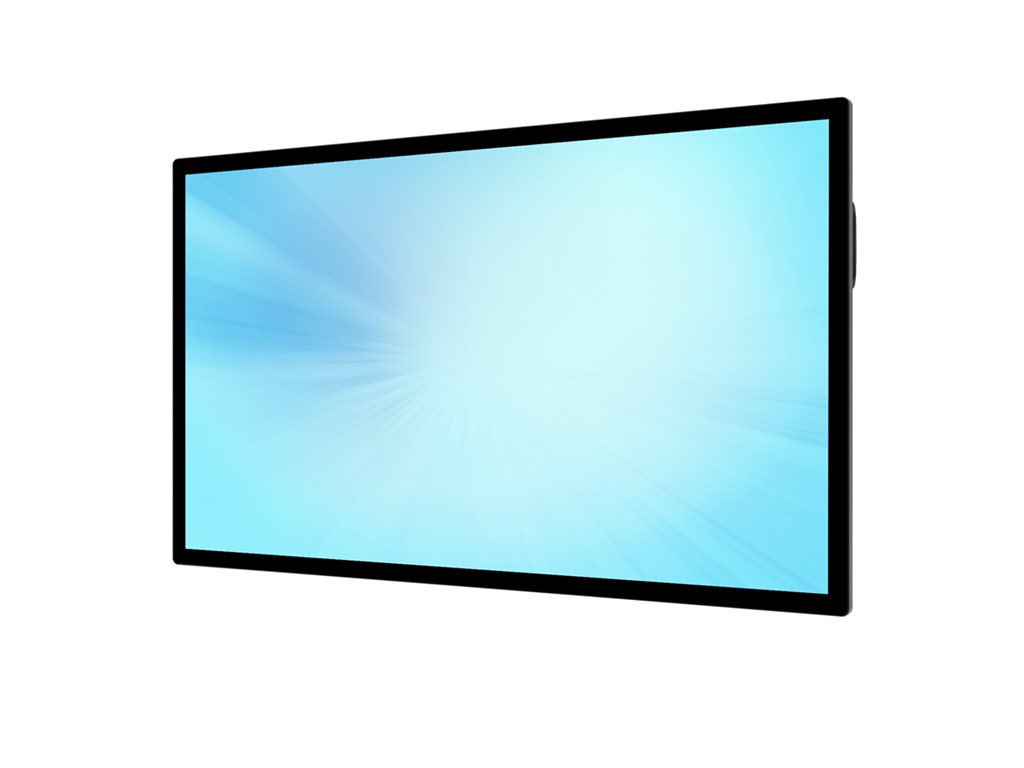

55" Diagonal Class LCD flat panel display - digital signage - with touchscreen (multi touch) - 4K UHD (2160p) 3840 x 2160 - black - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | MicroTouch M2-550DS-A1 55" LCD flat panel display - 4K - for digital signage - TAA Compliant |
| Product Type | LCD flat panel display with touchscreen (multi touch) |
| Diagonal Class | 55" |
| Commercial Use | Yes - digital signage |
| Color | Black |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| PC Interface | DisplayPort, VGA (HD-15) |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Speaker System | 2 speakers |
| USB | Yes |
| Voltage | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 175 watt |
| Dimensions (WxDxH) | 50.2 in x 3.1 in x 29.4 in |
| Weight | 66.14 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LCD flat panel display |
| Power Consumption Operational | 175 watt |
| Diagonal Class | 55" |
| Commercial Use | Yes - digital signage |
| Combined With | Touchscreen (multi touch) |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| PC Interface | DisplayPort, VGA (HD-15) |
| Modes | Portrait mode, landscape mode, tabletop mode |
| Design | Ultra Slim |
| Width | 50.2 in |
| Depth | 3.1 in |
| Height | 29.4 in |
| Weight | 66.14 lbs |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| TAA Compliant | Yes |
| Compliant Standards | IP65 front, IK06, FCC, UL, CEC, UKCA, ETSI EN 303 64 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 35 - 85% RH (non-condensing) |
| Display | |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Coating | Anti-glare |
| Image Contrast Ratio | 1200:1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Touchpoints Qty | 55 |
| Additional Features | Projected Capacitive Technology (PCAP), optical bonding |
| Connections | |
| Connector Type | 2 x HDMI ¦ DisplayPort ¦ VGA input ¦ Audio line-in ¦ Audio line-out ¦ 2 x touch ¦ SPDIF output ¦ LAN ¦ RS-232 ¦ USB 2.0 |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 watt |
| Speakers | 2 x speaker - 10 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 54.3 in |
| Depth (Shipping) | 7.3 in |
| Height (Shipping) | 34.4 in |
| Network & Internet Multimedia | |
| Connect & Share | USB Human Interface Device (HID) |
| Stands & Mounts | |
| Flat Panel Mount Interface | 400 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
