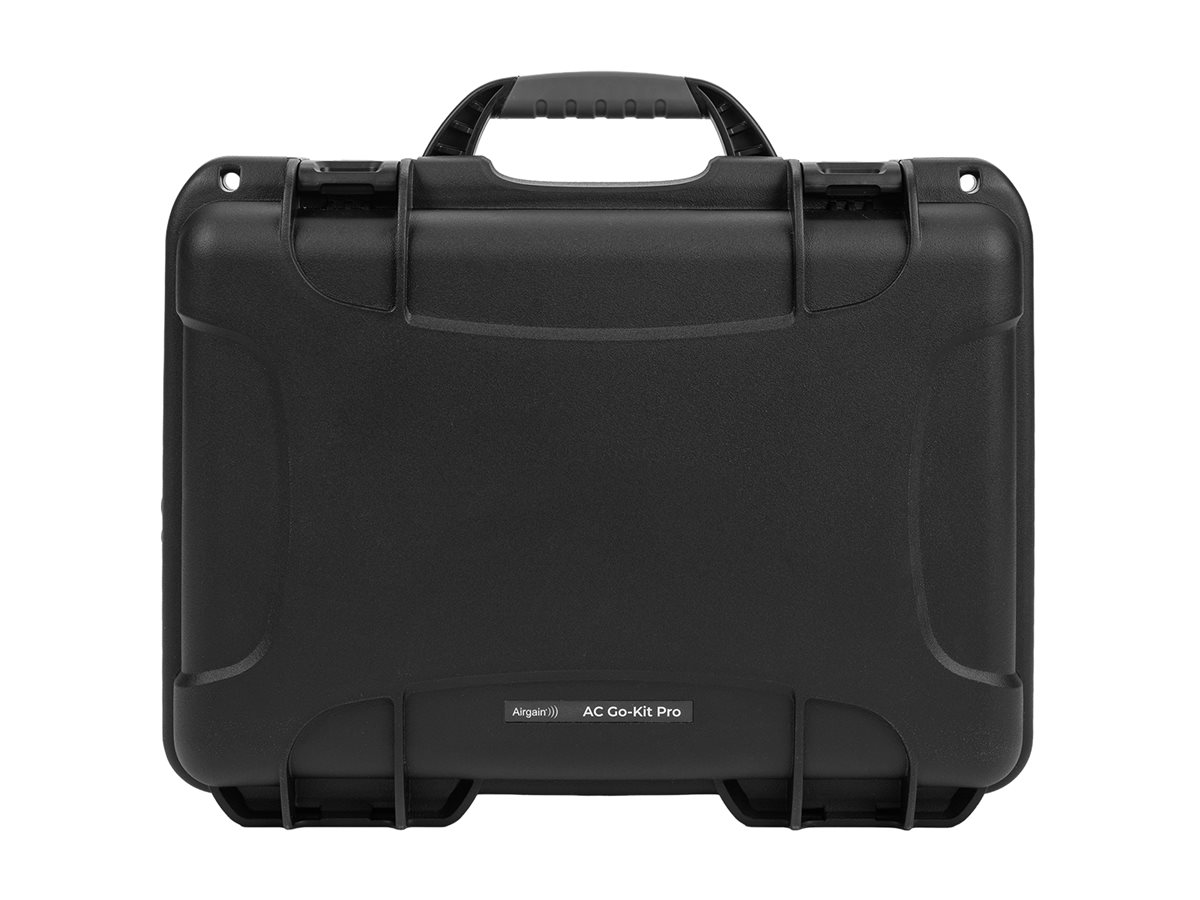

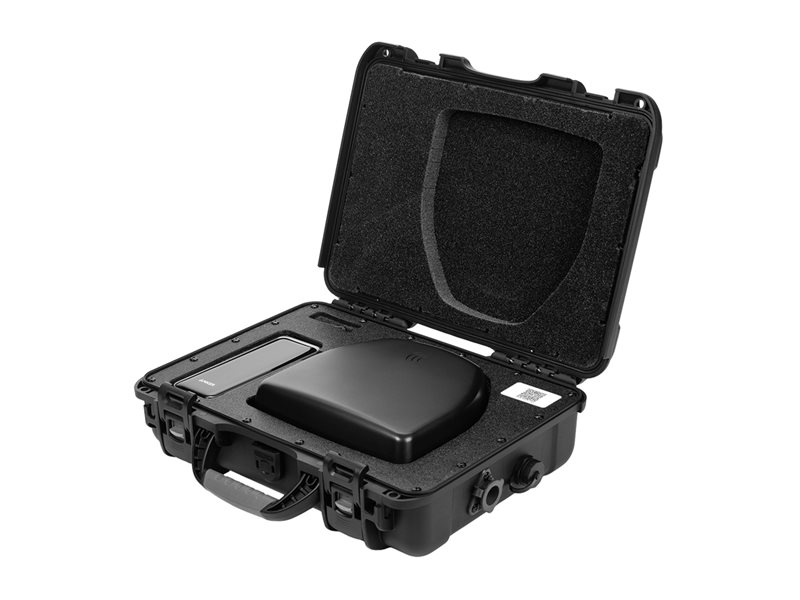

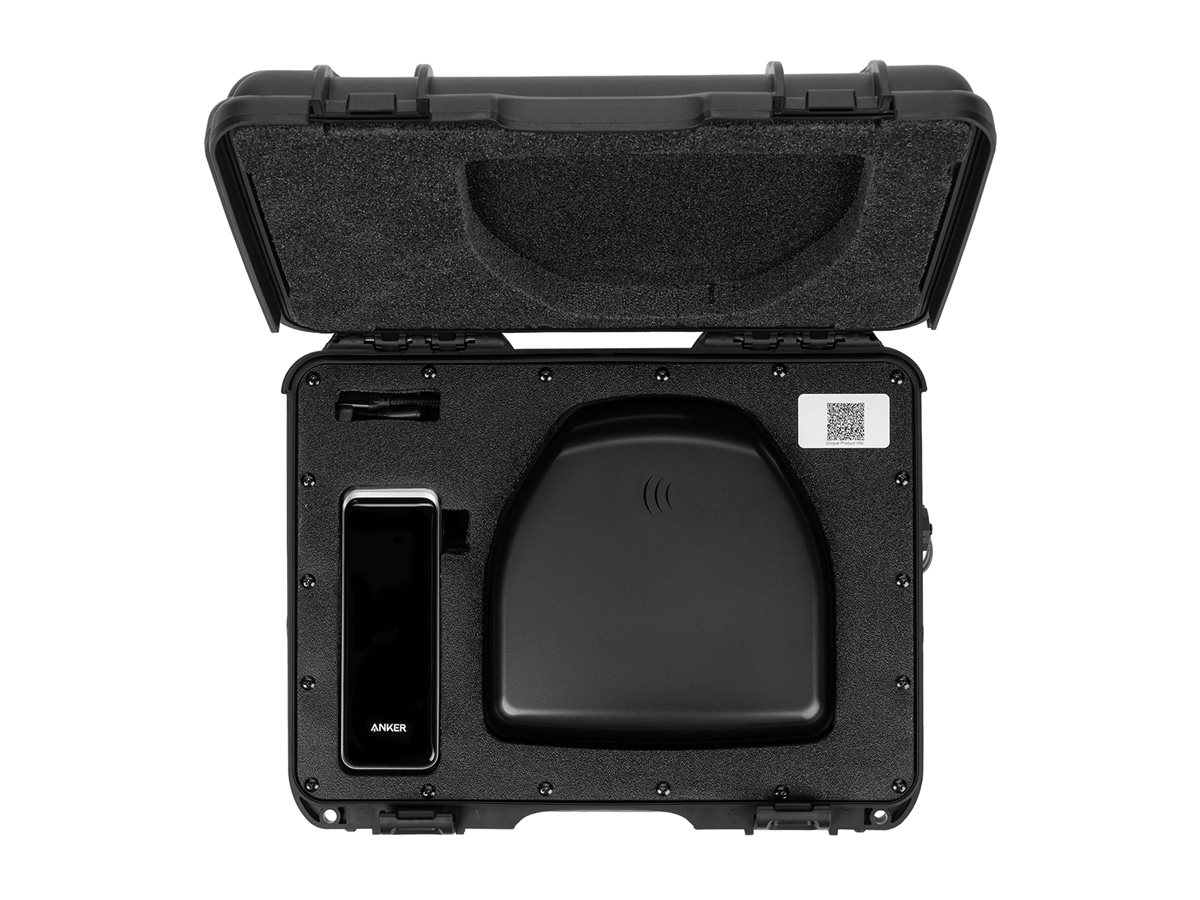

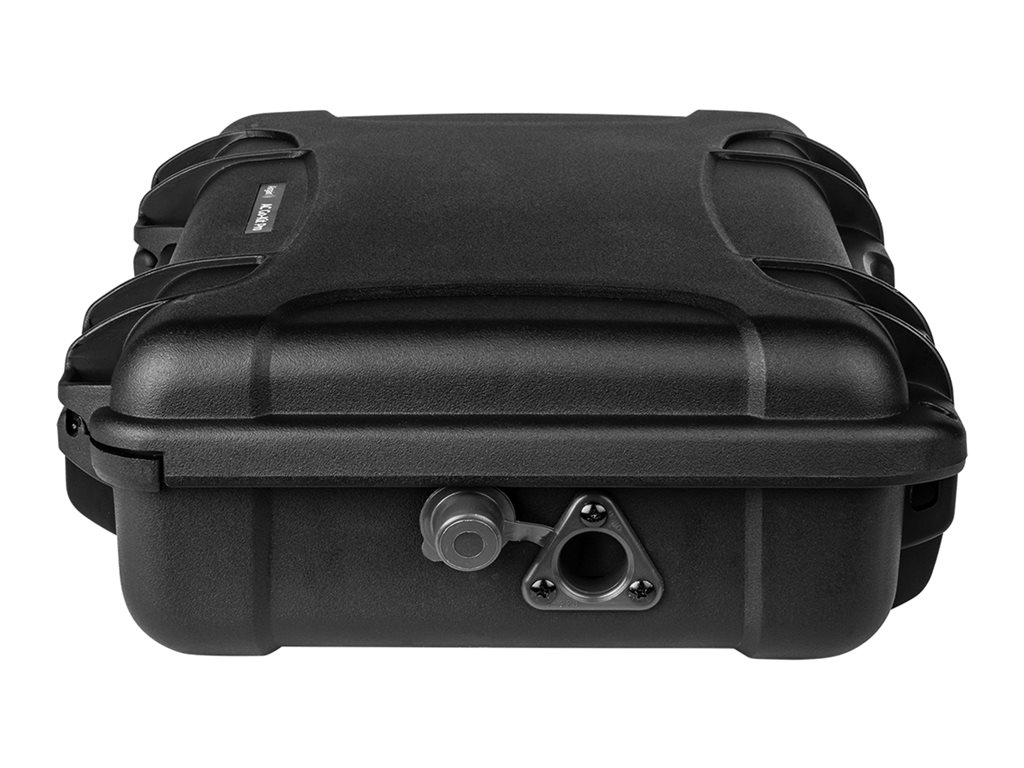

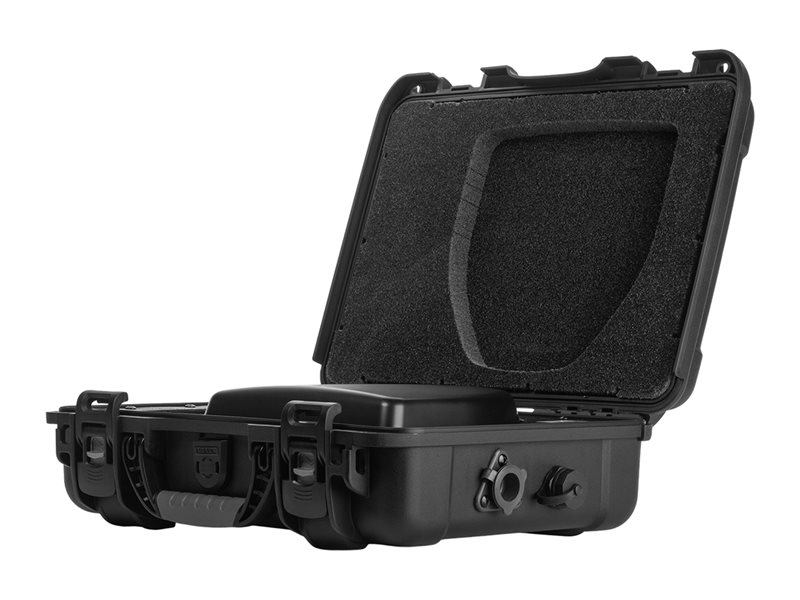

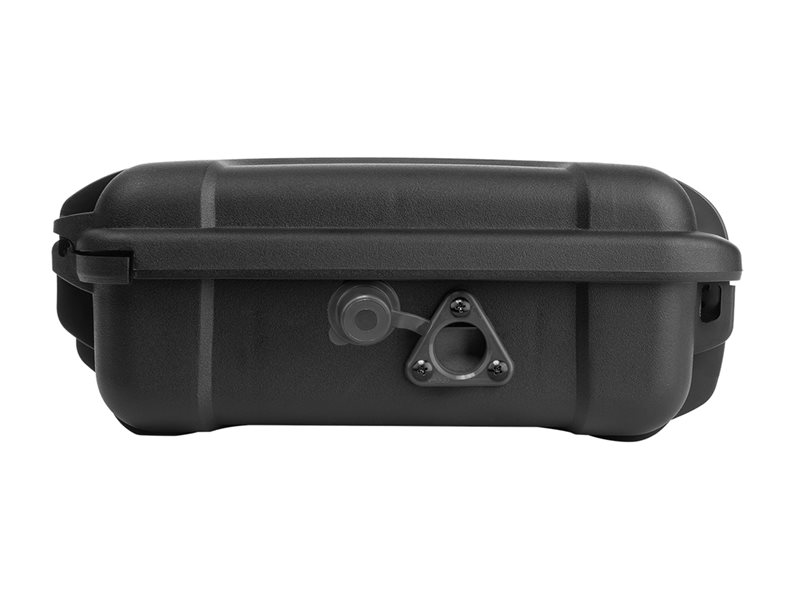

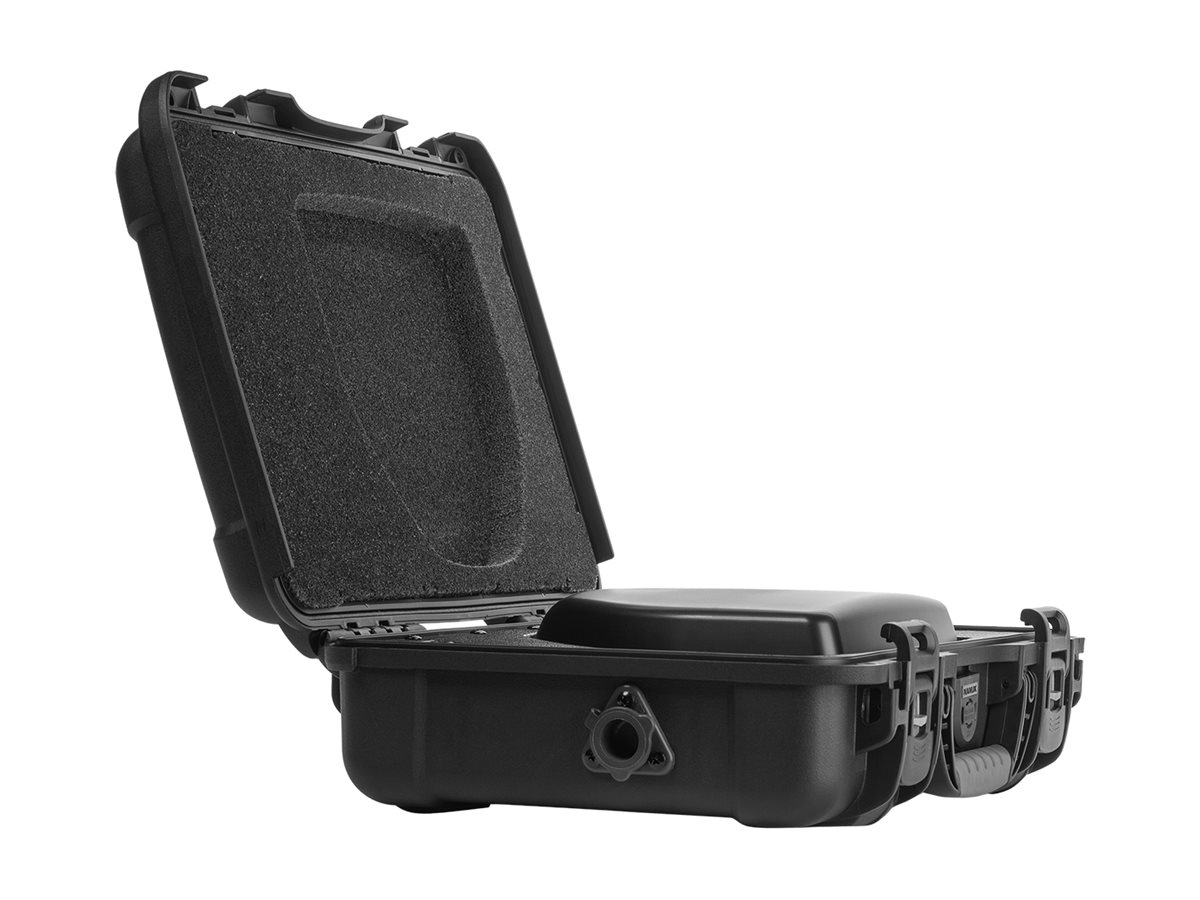

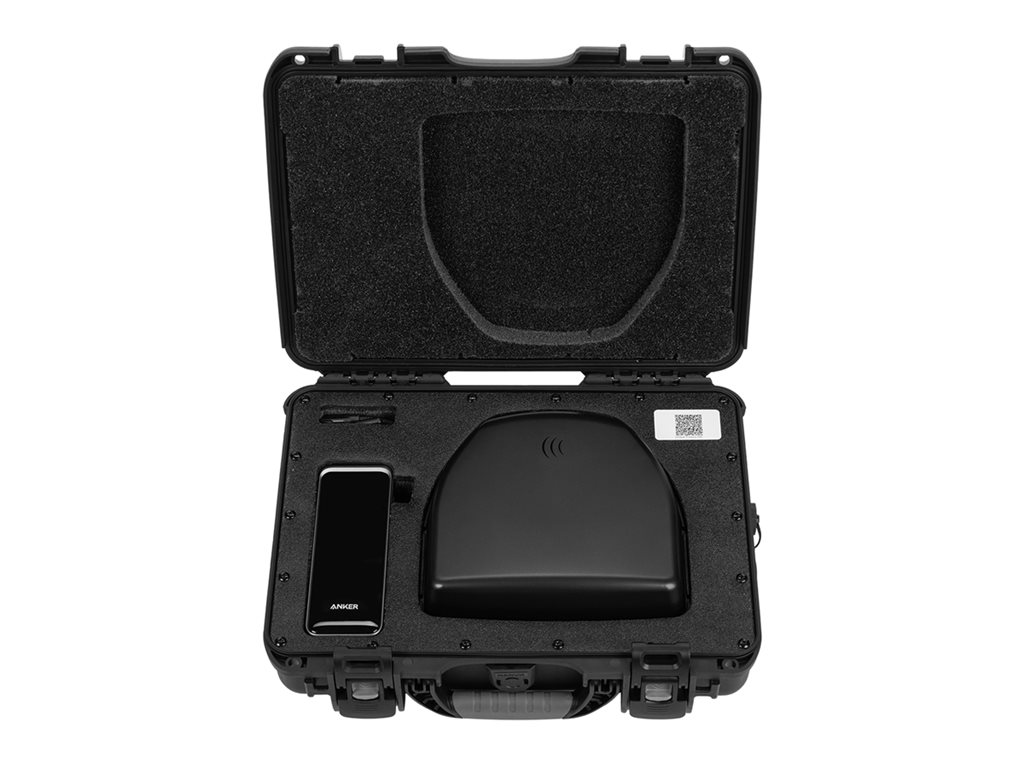

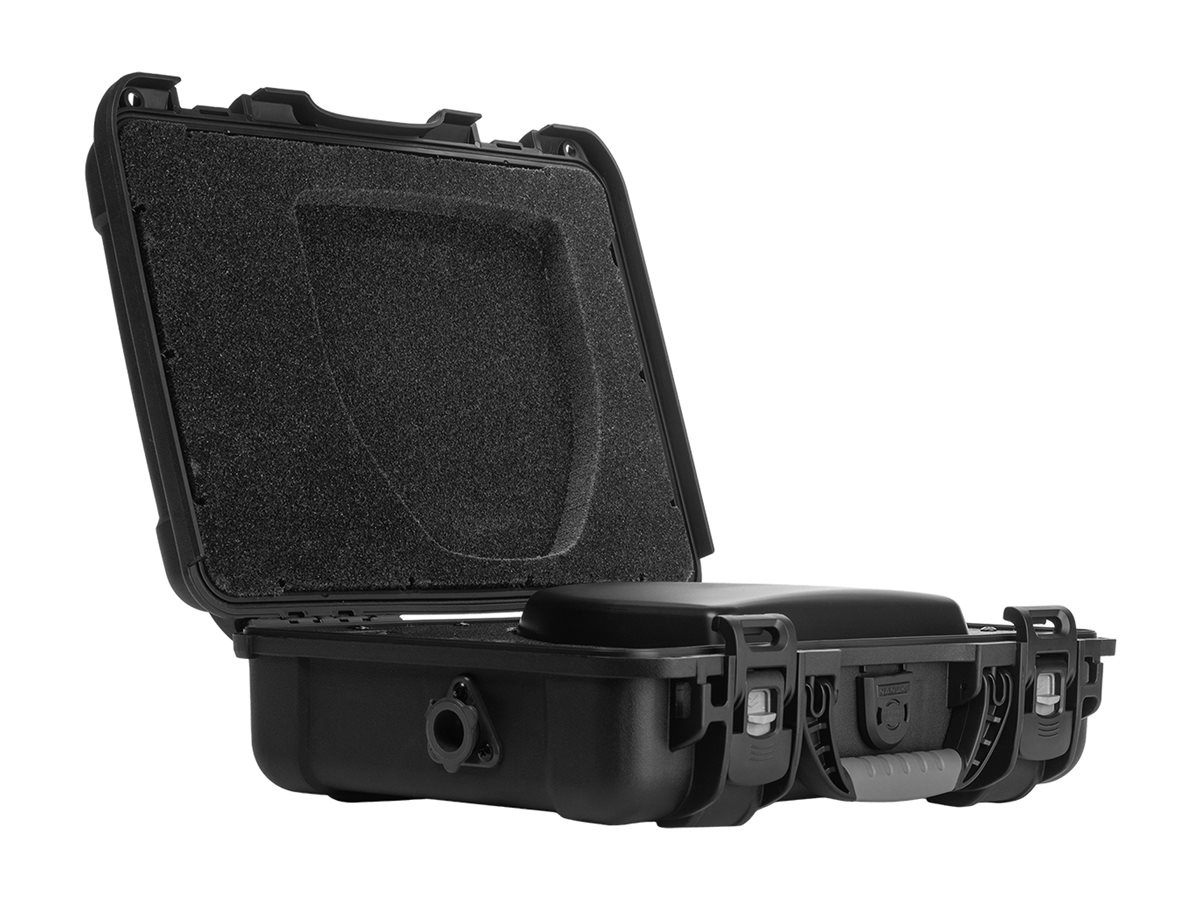

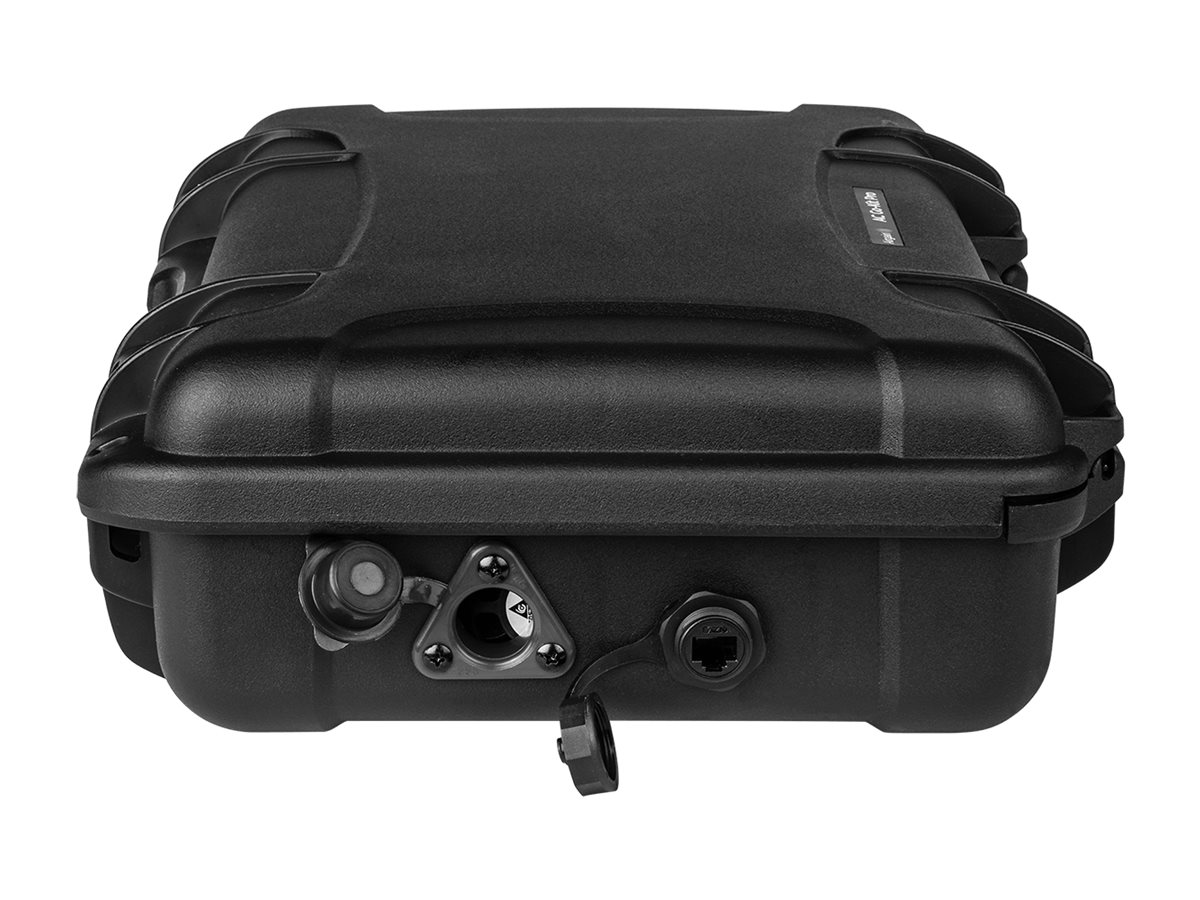

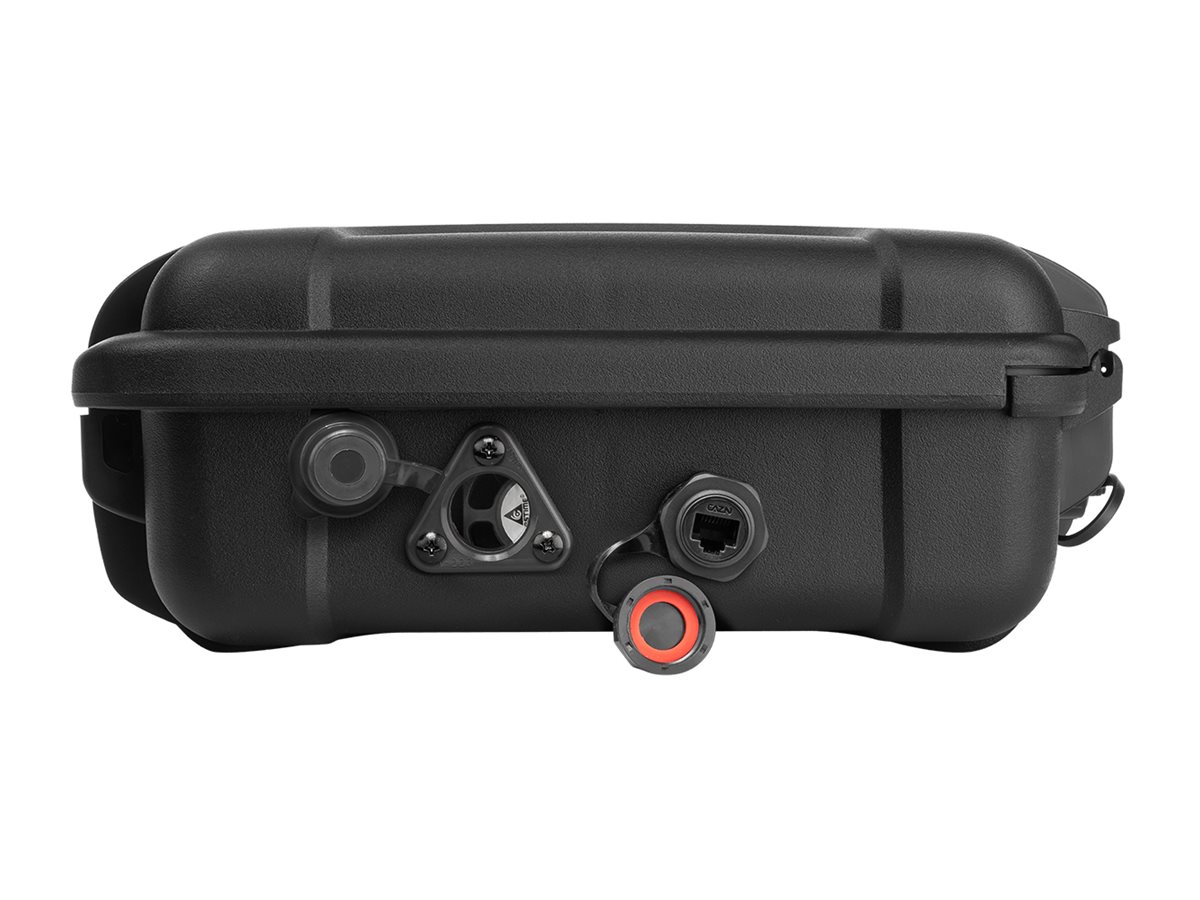

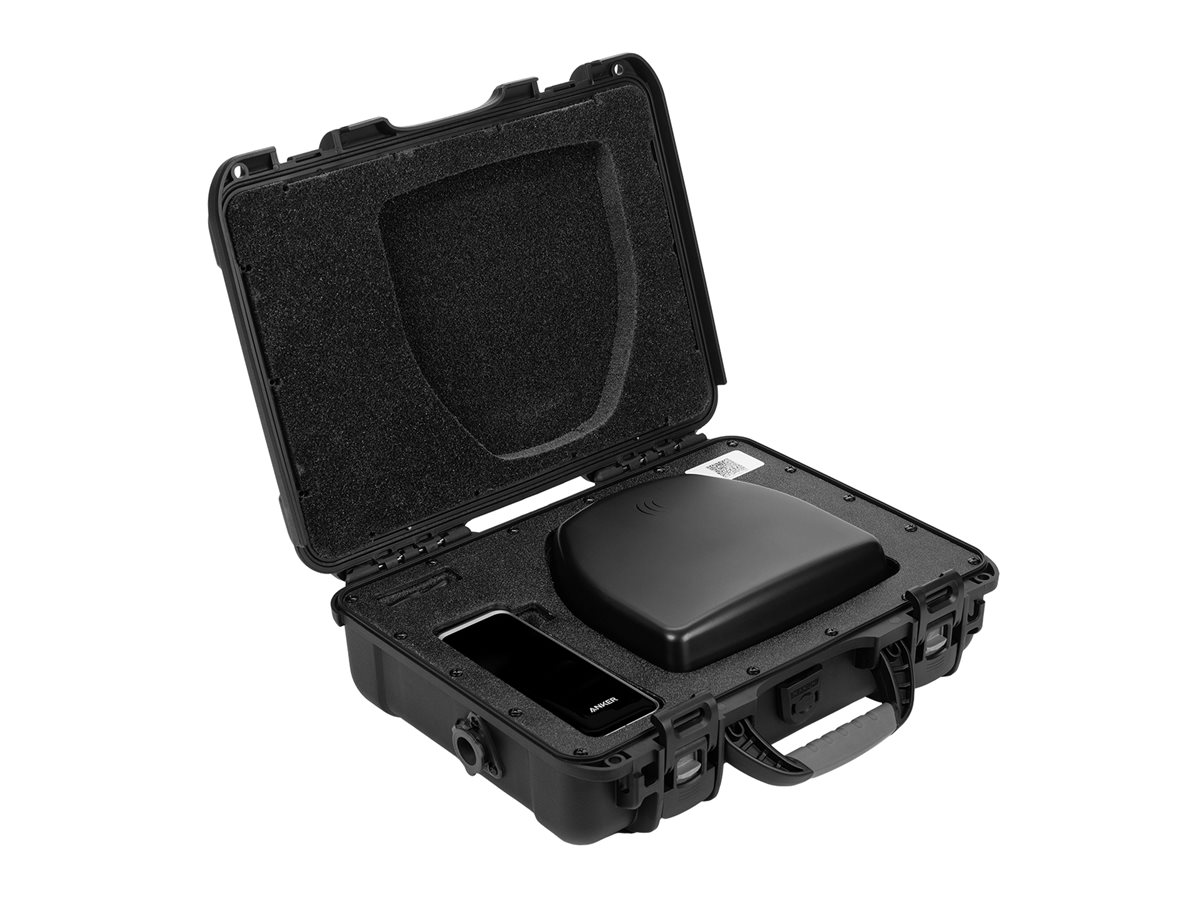

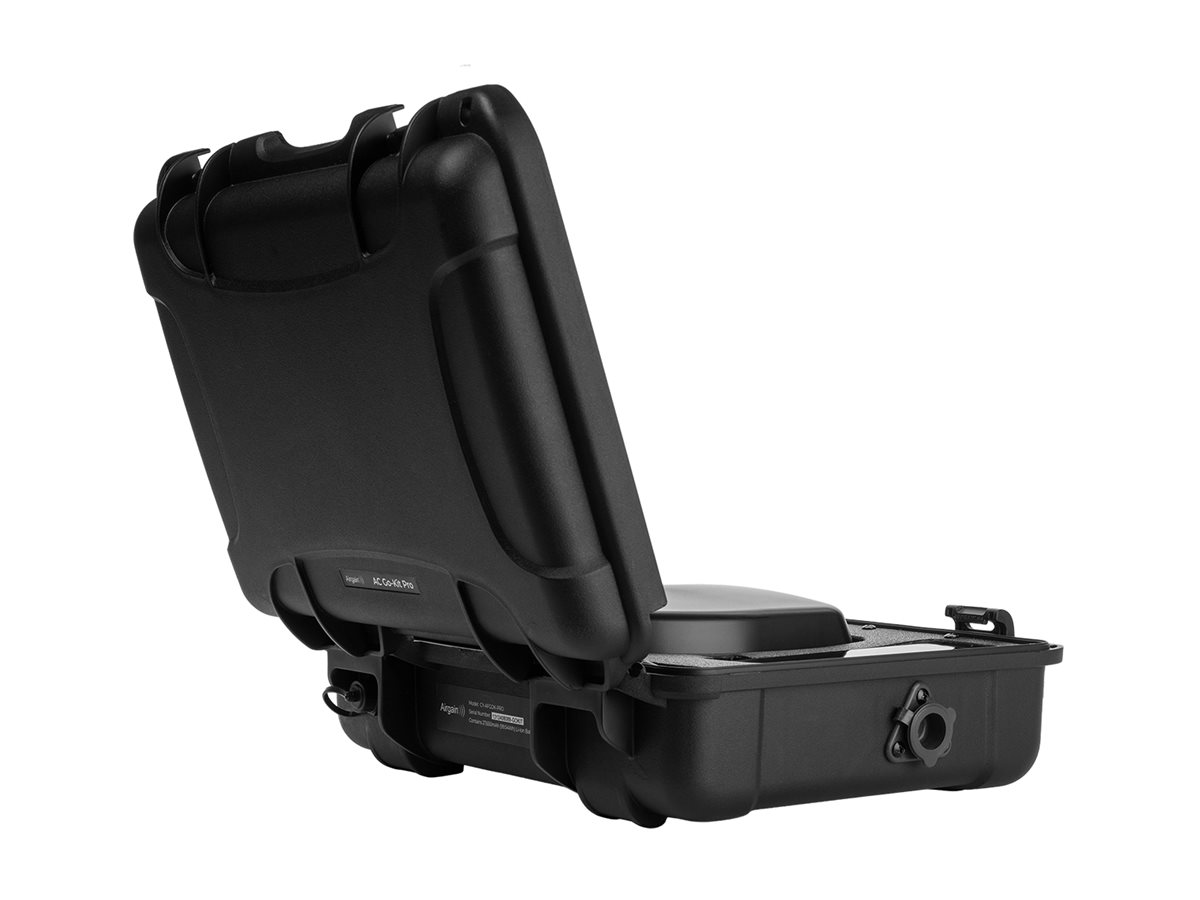

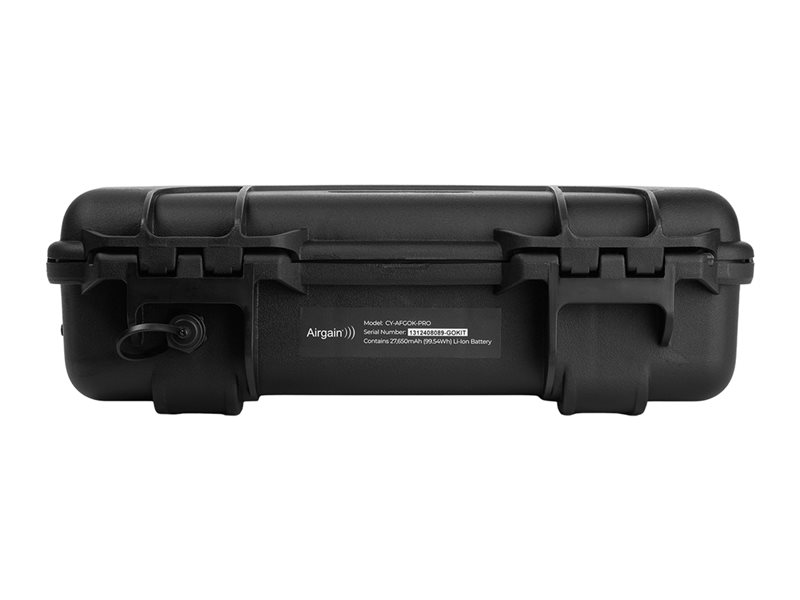

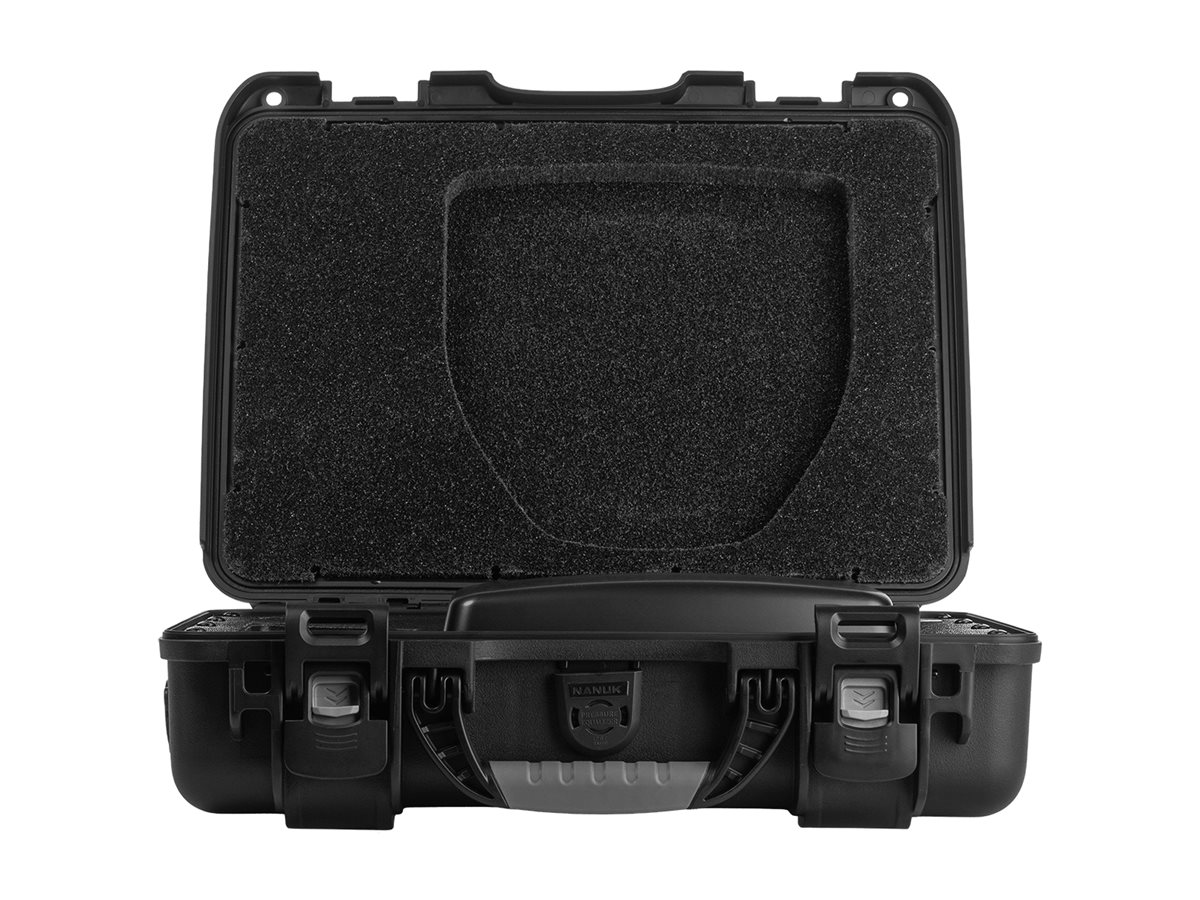

Gateway 5G, 1GbE - Wi-Fi 6 - Multi-Band - 5G, 4G, 3G - with 1-year Cloud Subscription
| Main Specifications | |
|---|---|
| Product Description | AirgainConnect Go-Kit Pro - gateway - Wi-Fi 6, LTE - 5G, 4G, 3G |
| Device Type | Gateway |
| Bundled Services | 1-year Cloud Subscription |
| Cellular Protocol | 5G FR1, 5G NR, LTE CAT19, LTE CAT18, WCDMA |
| Generation | 5G, 4G, 3G |
| Cellular Band | 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n20, 5G n25, 5G n28, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5G n71, 5G n75, 5G n77, 5G n78, 5G n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B32, LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B66, LTE B71, WCDMA B1, WCDMA B2, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8, WCDMA B19 |
| Data Link Protocol | 5G, LTE, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz |
| Capacity | Wireless clients: 64 |
| Features | Rugged, 4x4 MIMO technology, 2x2 MU-MIMO technology, eSIM support, impact-resistant, web-based UI, cloud managed, IPMI |
| Compliant Standards | IEEE 802.11ax |
| Dimensions (WxDxH) | 14.3 in x 4.7 in x 11.1 in |
| Weight | 8.6 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Gateway |
| Bundled Services | 1-year Cloud Subscription |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | 5G, LTE, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz |
| Capacity | Wireless clients: 64 |
| Features | Rugged, 4x4 MIMO technology, 2x2 MU-MIMO technology, eSIM support, impact-resistant, web-based UI, cloud managed, IPMI |
| Compliant Standards | IEEE 802.11ax, Plug and Play, FCC, IC, ISED, PTCRB, TSA |
| Built-in Devices | GPS / GLONASS / Galileo / Beidou |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | USB-C power adapter, battery |
| Cables Included | USB-C cable |
| Power | |
| Power Device | External power adapter / battery - 27650 mAh |
| Installed Qty | 1 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Communications | |
| Cellular Protocol | 5G FR1, 5G NR, LTE CAT19, LTE CAT18, WCDMA |
| Generation | 5G, 4G, 3G |
| Cellular Band | 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n20, 5G n25, 5G n28, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5G n71, 5G n75, 5G n77, 5G n78, 5G n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B32, LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B66, LTE B71, WCDMA B1, WCDMA B2, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8, WCDMA B19 |
| Dimensions & Weight | |
| Width | 14.3 in |
| Depth | 4.7 in |
| Height | 11.1 in |
| Weight | 8.6 lbs |
