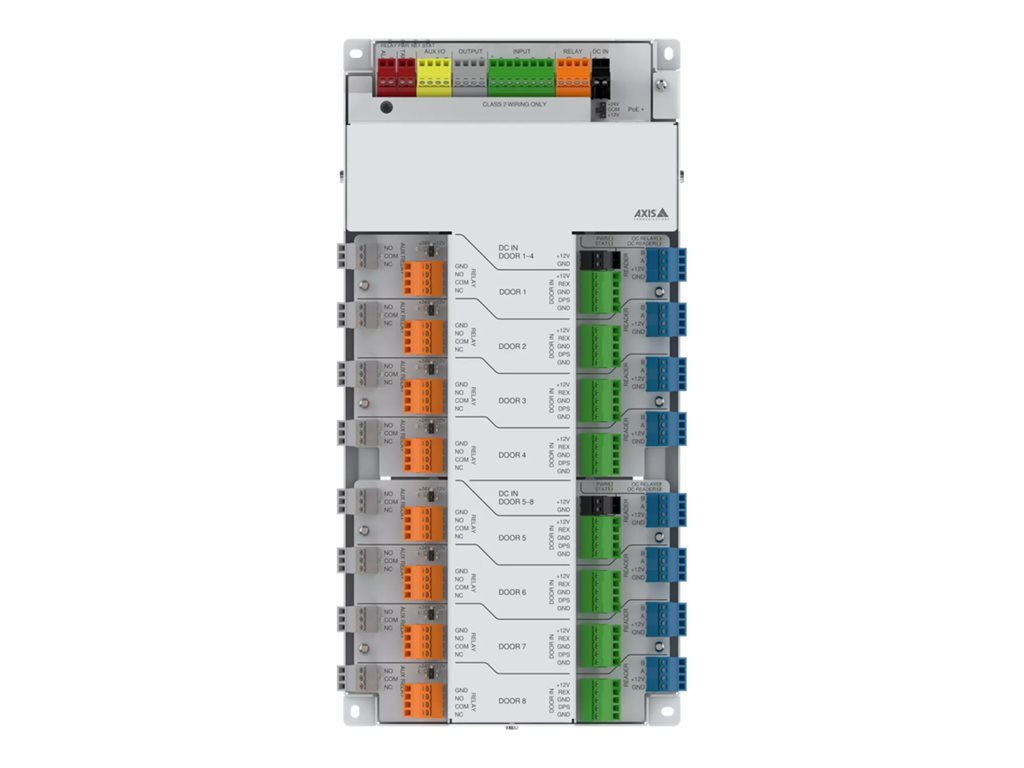

Door controller - wired - serial RS-485/Gigabit Ethernet/Wiegand - white, NCS S 1002-B
| Main Specifications | |
|---|---|
| Product Description | Axis A1810-B - door controller - white, NCS S 1002-B |
| Product Type | Door controller |
| Placing / Mounting | DIN rail-mounting, wall-mounting |
| Functions | Tamper detection |
| Power Source | PoE |
| Connectivity | Wired - serial RS-485/Gigabit Ethernet/Wiegand |
| Color | White, NCS S 1002-B |
| Manufacturer Warranty | 5-year warranty |
| Dimensions (WxDxH) | 6.5 in x 1.1 in x 12.9 in |
| General | |
| Product Type | Door controller |
| Functions | Tamper detection |
| Power Source | PoE |
| Placing / Mounting | DIN rail-mounting, wall-mounting |
| Connectivity Technology | Wired - Wiegand, RS-485, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Interfaces Details | LAN/power ¦ 8 x serial (RS-485)/Wiegand ¦ 16 x input/output ¦ 2 x relay |
| Features | Up to 16 OSDP readers, up to 8 doors, up to 250000 events, up to 250000 credentials, PoE+, Open Supervised Device Protocol (OSDP), HTTP support, HTTPS support, IPv4 support, IPv6 support, DiffServ support, mDNS, SMTP support, DDNS (Dynamic Domain Name Service), DHCP support, DNS support, IGMP support, MQTT support, NTP support, RTCP support, RTP support, RTSP support, SNMP support, SOCKS support, Syslog support, TCP support, UDP support, signed firmware, brute force delay protection, digest authentication, password protection, Axis Edge Vault, secure boot, IP address filtering |
| Miscellaneous | |
| Included Accessories | Grounding kit, splicing connectors |
| Product Material | Aluminum |
| Color | White, NCS S 1002-B |
| Encryption Algorithm | EAP-TLS, TLS 1.2, TLS 1.3 |
| Authentication Method | Secure Shell (SSH) |
| Warranty | 5-year warranty |
| Compliant Standards | IEEE 802.3at, EAL 6+, IEEE 802.1x, IEEE 802.1ar, X.509, PVC-free, BFR-free, CFR free, EAC, EN 55035, EN 55032 Class B, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KN32 Class B, KN35, IEC/EN/UL 62368-1, IEC/EN 60950-1, NEMA TS-2 (2.2.7-2.2.9) |
| RAM | |
| Installed Size | 512 MB |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Flash Memory | |
| Installed Size | 2 GB |
| Dimensions & Weight | |
| Width | 6.5 in |
| Depth | 1.1 in |
| Height | 12.9 in |
| Weight | 2.93 lbs |
