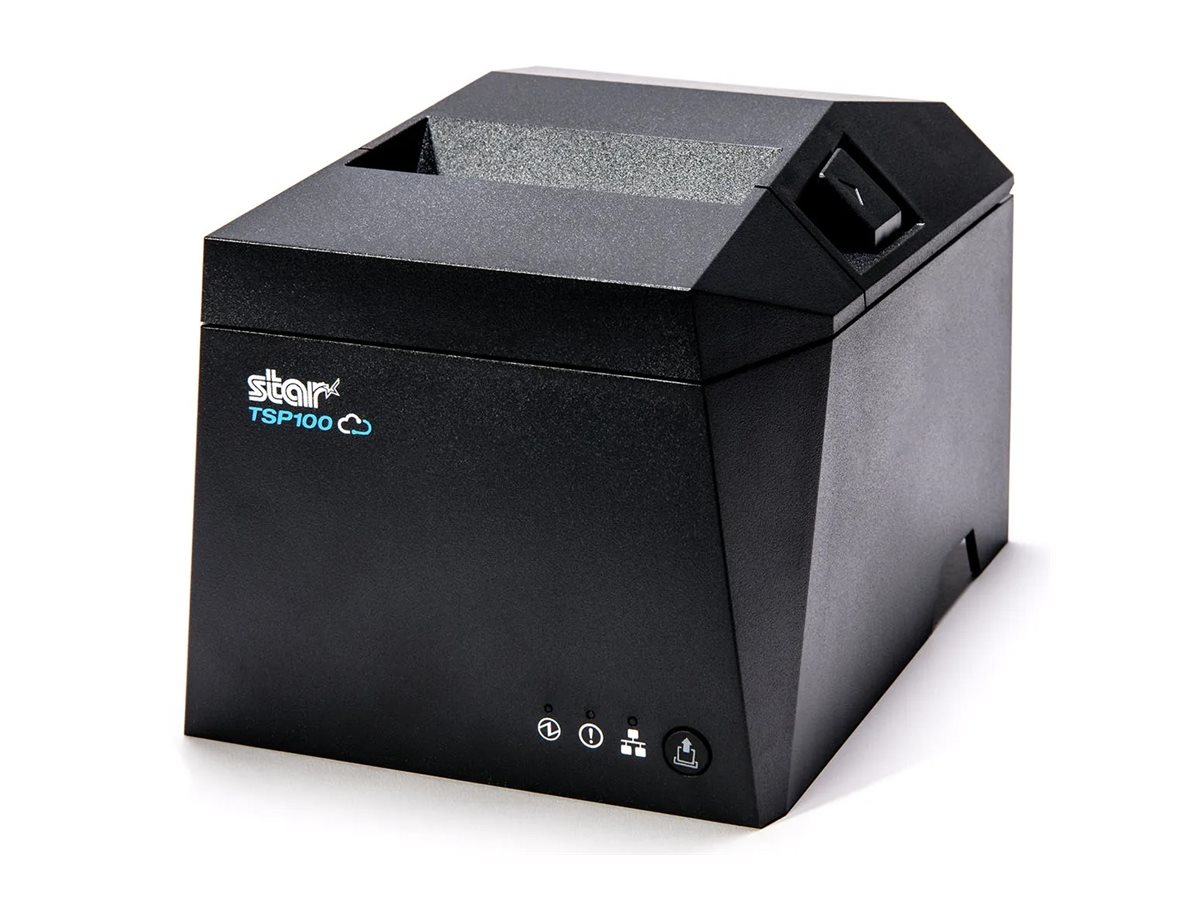

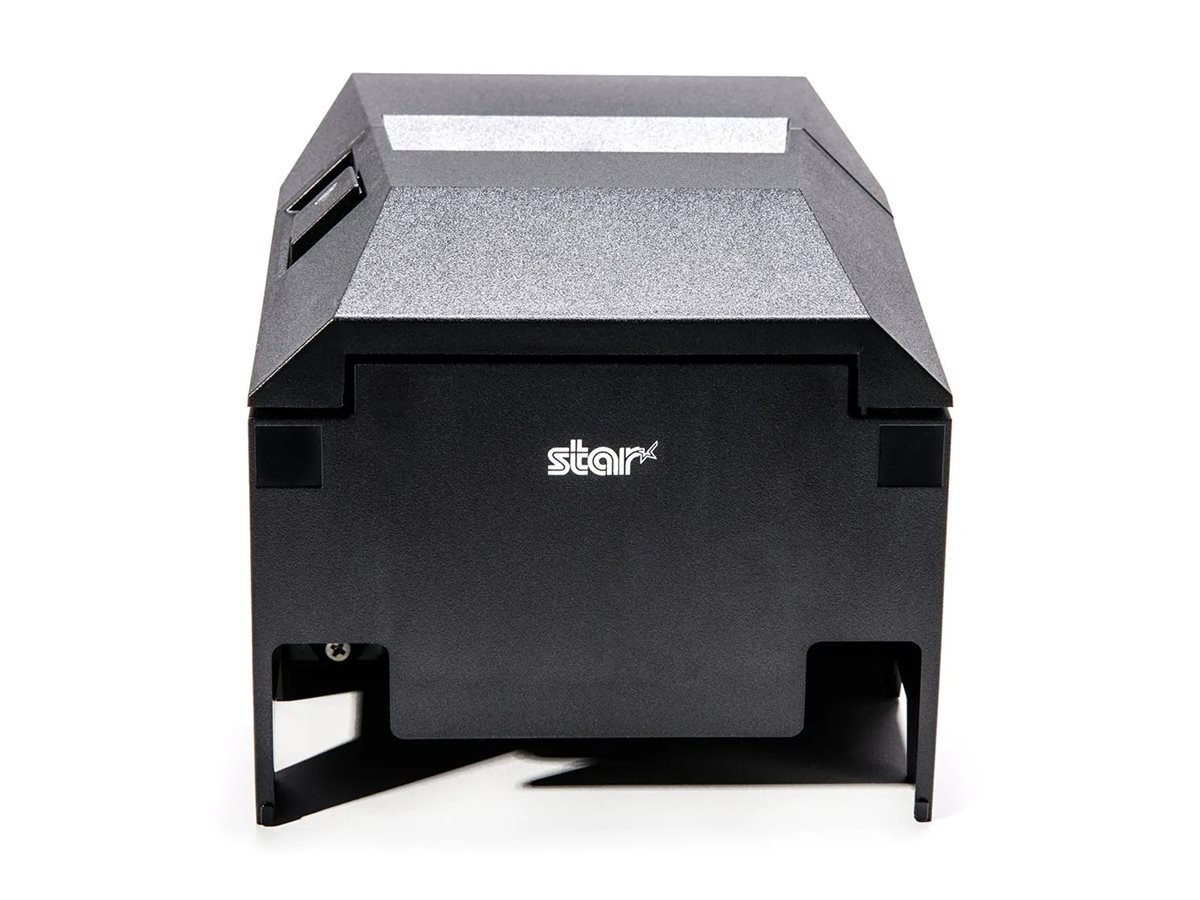

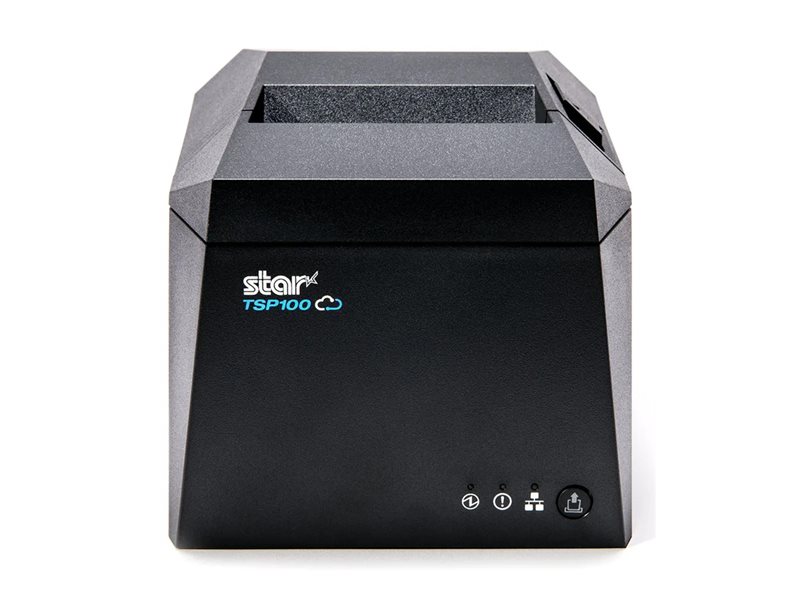

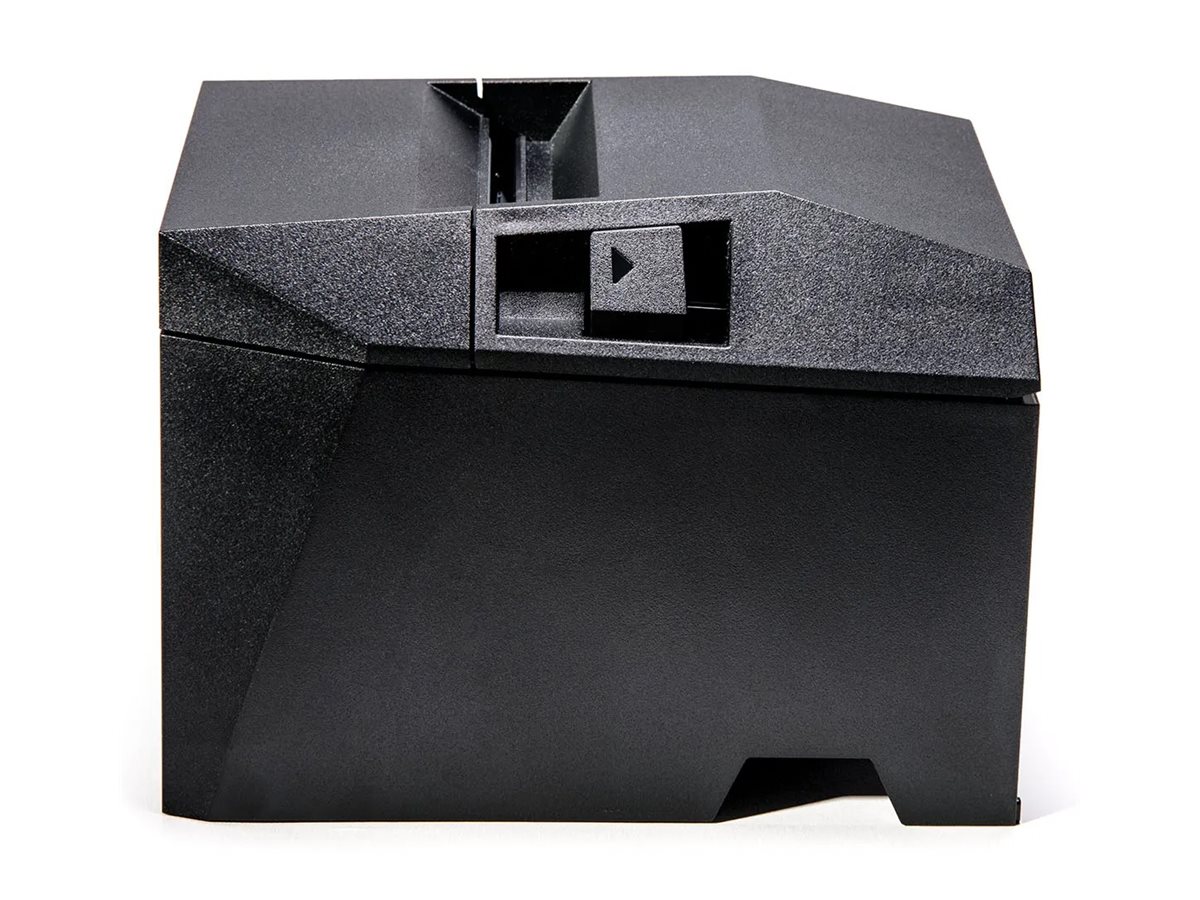

Receipt printer - direct thermal - - 203 dpi - up to 590.6 inch/min - LAN, USB-C, USB, Bluetooth, Wi-Fi - cutter - gray
| Main Specifications | |
|---|---|
| Product Description | Star TSP100 Series TSP143IVUEWB GY US ESCP - receipt printer - B/W - direct thermal |
| Printer Type | Receipt printer - direct thermal - B/W |
| Weight | 2.87 lbs |
| Localization | United States |
| Max Media Size | Roll (3.15 in) |
| Max Media Size (Custom) | 3.15 in |
| Print Speed | Up to 590.6 inch/min - max speed |
| Max Resolution (B&W) | 203 dpi |
| Cutter | Yes |
| Interface | LAN, USB-C, USB, Bluetooth, Wi-Fi |
| Language Simulation | StarPRNT, Star Graphic, ESC POS |
| Features | Paper out sensor, open cover sensor |
| Networking | Print server |
| Printer Features | Android Open Accessory (AOA) |
| Enclosure Color | Gray |
| Manufacturer Warranty | 2-year warranty |
| Dimensions (WxDxH) | 5.5 in x 6.7 in x 4.8 in |
| General | |
| Printer Type | Receipt printer - direct thermal - monochrome |
| Enclosure Color | Gray |
| Localization | United States |
| Expansion / Connectivity | |
| Connections | 1 x USB - Type A ¦ 1 x USB-C ¦ 1 x LAN |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Rubber feet, roll paper guide, power cable |
| Cables Included | 1 x USB-C to USB-A cable |
| Compliant Standards | UL, C-UL, TUV, FCC, VCCI, WHQL |
| Printer | |
| Print Speed | Up to 590.6 inch/min - max speed - 203 dpi |
| Connectivity Technology | Wireless |
| Interface | LAN, USB-C, USB, Bluetooth, Wi-Fi |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | StarPRNT, Star Graphic, ESC POS |
| Features | Paper out sensor, open cover sensor |
| Auto Cutter | Yes |
| Printer Features | Android Open Accessory (AOA) |
| Media Handling | |
| Max Media Size | Roll (3.15 in) |
| Max Media Size (Custom) | 3.15 in |
| Media Sizes | Roll (3.25 in) |
| Max Printing Width | 2.83 in |
| Media Thickness Range | 0.049 mm - 0.085 mm |
| Roll Maximum Outer Diameter | 3.3 in |
| Media Feeders | 1 x manual - 1 roll - Roll (3.15 in) |
| Networking | |
| Networking | Print server |
| Remote Management Protocol | MQTT |
| Power | |
| Power Device | Power supply - internal |
| Power Consumption Operational | 53 watt |
| Power Consumption Stand by | 13 watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, CloudPRNT |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 5.5 in |
| Depth | 6.7 in |
| Height | 4.8 in |
| Weight | 2.87 lbs |
| Environmental Standards | |
| ENERGY STAR | Yes |
