Gen 2 - network surveillance camera - PTRZ - dome - outdoor - vandal-resistant - color (Day&Night) - 4 MP - 2592 x 1520 - motorized - audio - GbE - H.265, H.264, MJPEG - DC 12 V / PoE Plus
| Main Specifications | |
|---|---|

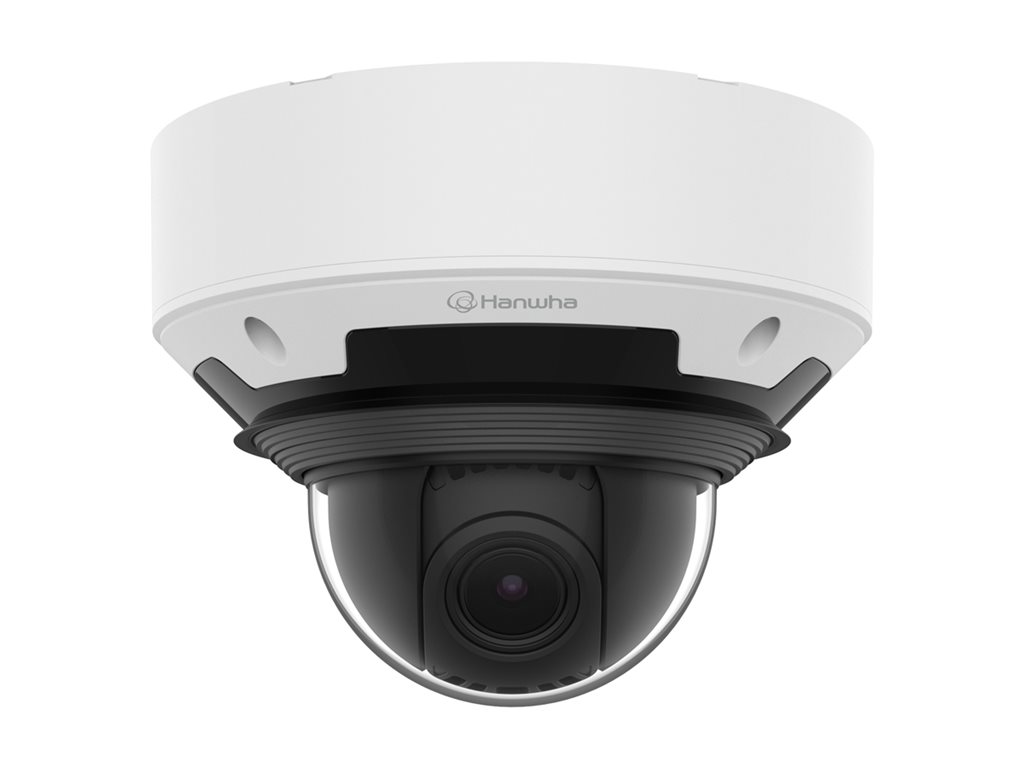

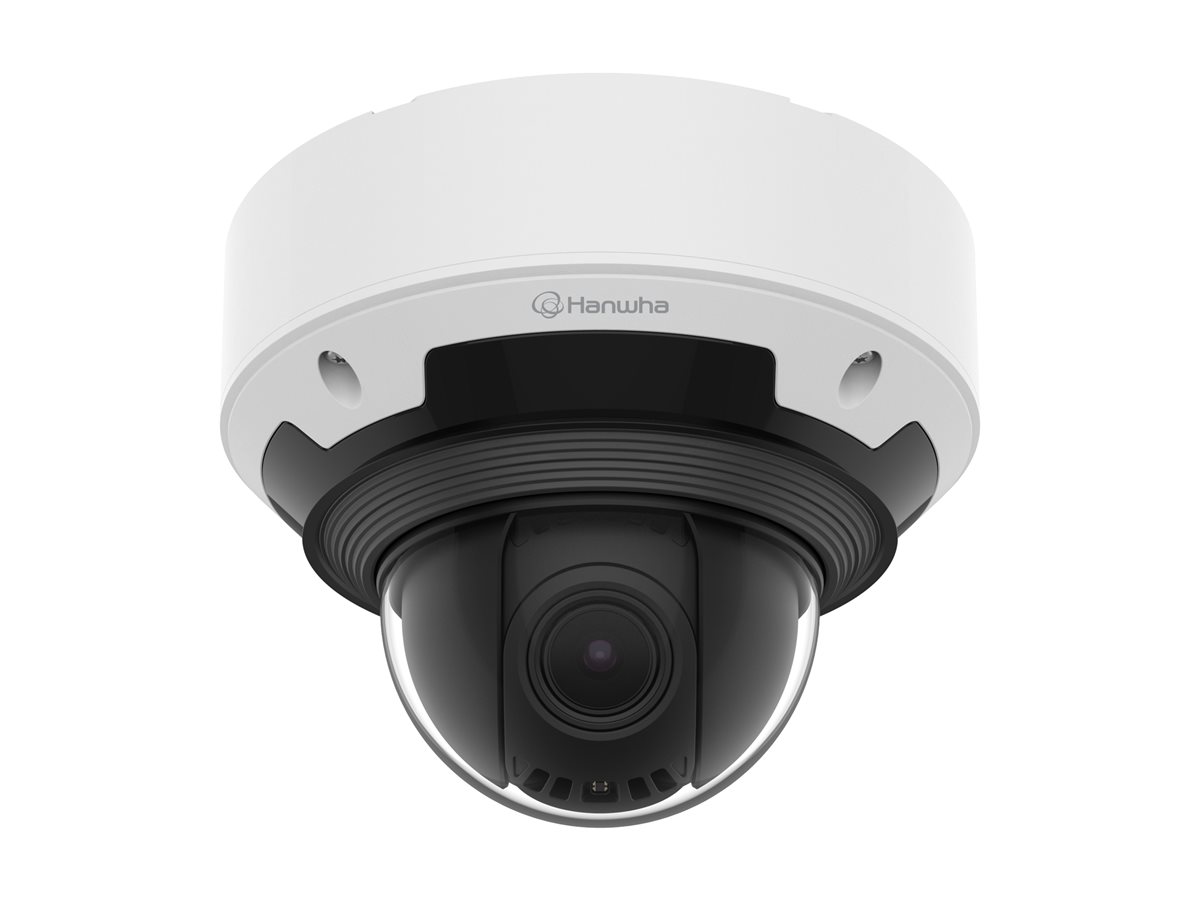

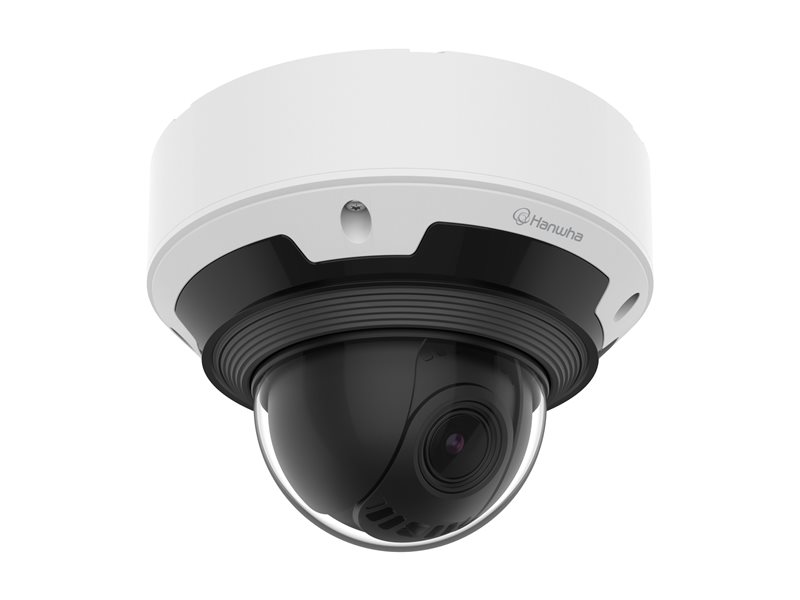

| Product Description | Hanwha Vision WiseNet P PNV-A7082RZ - Gen 2 - network surveillance camera - dome |
| Device Type | Network surveillance camera - pan / tilt / roll / zoom - dome - outdoor - vandal-resistant |
| Audio | Yes |
| Dimensions (WxDxH) | 7.1 in x 7.1 in x 5.3 in |
| Weight | 4.63 lbs |
| Color | White, RAL 9003 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 2 x |
| Max Resolution | 2592 x 1520 |
| Frame Rate (max) | 60 frames per second |
| Optical Sensor Type | CMOS - 1/1.8" - 4 MP |
| Minimum Illumination | 0.03 lux - color - shutter 1/30 sec ¦ 0.003 lux - B&W - shutter 1/30 sec |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.6 mm - 9.35 mm |
| Focus Adjustment | (min distance 5 ft) |
| Lens Iris | F/1.3-2.15 (P-Iris) |
| Panning Range (degree) | 0 to 350 |
| Tilting Range (degree) | -45 to +85 |
| Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | DC 12 V / PoE Plus |
| Features | Hard-coated window, WiseStream support, WiseNR II, 120 dB wide dynamic range, Digital Image Stabilization (DIS), built-in gyroscope, Handover, dynamic privacy masking, AI-powered, Object Detection, Line Crossing Detection, sound classification, Person Detection, face detection, Vehicle Detection, license plate detection, gender recognition, clothing color recognition, bag detection, age recognition, mask detection, glasses detection, vehicle type classification, vehicle color recognition, Defocus Detection, Tampering detection, fog detection, Heat Map, queue management, people counting, vehicle counting, crowd counting, Backlight Compensation (BLC), Highlight Compensation (HLC), Samsung Super Dynamic Range (SSDR), 850nm illuminator, Variable Bitrate (VBR), Constant Bitrate (CBR), white balance, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support |
| Environmental Parameters (operating) | -58 °F - 131 °F; 0 - 100% (condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 7.1 in |
| Depth | 7.1 in |
| Height | 5.3 in |
| Weight | 4.63 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ USB |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | IP66, IP67, IK10, NEMA Type 4X, NEMA TS-2, FIPS 140-3 Level 3, NDAA, FCC, EAC, cULus, ICES-3(A)/NMB-3(A), EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835, UL 62368-1, IEC 62471, IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 Type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| Color | White, RAL 9003 |
| Power | |
| Power Requirements | DC 12 V / PoE Plus |
| Power Device | 15 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -58 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 100% (condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / roll / zoom - outdoor - vandal-resistant |
| Digital Video Format | H.265, H.264, MJPEG |
| Max Digital Video Resolution | 2592 x 1520 |
| Exposure Range | 2 sec - 1/30000 sec |
| Minimum Illumination | 0.03 lux - color - shutter 1/30 sec ¦ 0.003 lux - B&W - shutter 1/30 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Digital Video Capture Resolution | 2592 x 1520, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
| Frame Rate (max) | 60 frames per second |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Features | Hard-coated window, WiseStream support, WiseNR II, 120 dB wide dynamic range, Digital Image Stabilization (DIS), built-in gyroscope, Handover, dynamic privacy masking, AI-powered, Object Detection, Line Crossing Detection, sound classification, Person Detection, face detection, Vehicle Detection, license plate detection, gender recognition, clothing color recognition, bag detection, age recognition, mask detection, glasses detection, vehicle type classification, vehicle color recognition, Defocus Detection, Tampering detection, fog detection, Heat Map, queue management, people counting, vehicle counting, crowd counting, Backlight Compensation (BLC), Highlight Compensation (HLC), Samsung Super Dynamic Range (SSDR), 850nm illuminator, Variable Bitrate (VBR), Constant Bitrate (CBR), white balance, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 2 x |
| Focal Length | 4.6 mm - 9.35 mm |
| Lens Iris | F/1.3-2.15 (P-Iris) |
| Min Focus Distance | 5 ft |
| Horizontal Field of View (degree) | 47 - 105 |
| Vertical Field of View (degree) | 27 - 58 |
| Diagonal Field of View (degree) | 55 - 128 |
| Image Sensor | |
| Type | 4 MP CMOS 1/1.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, EAP, LLDP |
| Panning | |
| Range (degree) | 0 to 350 |
| Tilting | |
| Range (degree) | -45 to +85 |
