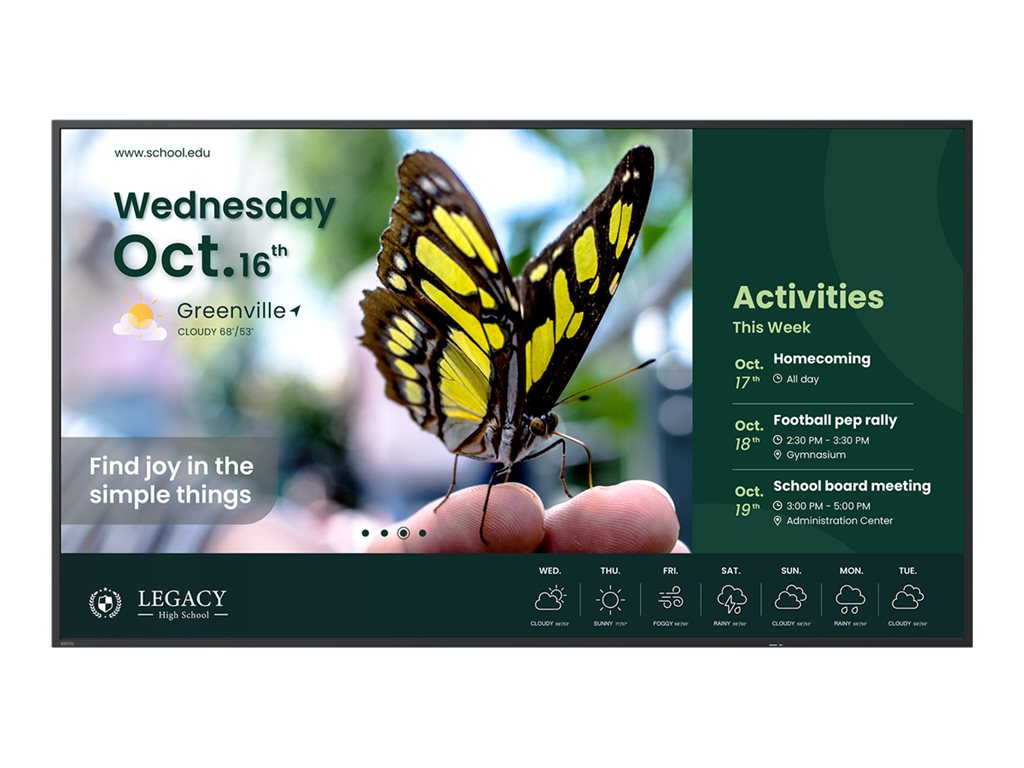

55" Diagonal Class ST04 Series LED-backlit LCD display - digital signage - Android - 4K UHD (2160p) 3840 x 2160 - Direct LED
| Main Specifications | |
|---|---|
| Product Description | BenQ ST5504 ST04 Series - 55" LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2266198 |
| Diagonal Class | 55" |
| Commercial Use | Yes - digital signage |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Frame Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Connectivity | LAN |
| Technology | ADS |
| LCD Backlight Technology | Direct LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | BenQ Device Management Solution (DMS), Real-Time Clock (RTC) |
| Picture Enhancements | 99% sRGB color gamut, 72% Color Gamut NTSC |
| Speaker System | 2 speakers |
| Storage Capacity | 32 GB |
| USB | 2 ports |
| Included Accessories | Remote control, X-Sign Software, X.Sign Broadcast |
| Voltage | AC 100-240 V (50/60 Hz) |
| Energy Class | Class G |
| Power Consumption Operational | 71 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Dimensions (WxDxH) | 48.6 in x 2.3 in x 27.8 in |
| Weight | 26.46 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2266198 |
| Energy Class | Class G |
| Power Consumption Operational | 71 Watt |
| Power Consumption SDR (On mode) | 116 kWh/1000h |
| Diagonal Class | 55" |
| Commercial Use | Yes - digital signage |
| Series | ST04 Series |
| Platform | Android |
| Operating System | Android OS 14 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Infrared (IR) |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Modes | Portrait mode, landscape mode |
| Picture Enhancements | 99% sRGB color gamut, 72% Color Gamut NTSC |
| Width | 48.6 in |
| Depth | 2.3 in |
| Height | 27.8 in |
| Weight | 26.46 lbs |
| Miscellaneous | |
| Included Accessories | X-Sign Software, X.Sign Broadcast |
| Cables Included | HDMI cable - 5 ft ¦ RS-232 cable - 6 ft |
| Compliant Standards | CEC |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Display | |
| LCD Display Technology | ADS |
| Pixel Pitch | 0.32 mm |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Frame Rate |
| LCD Backlight Technology | Direct LED |
| Coating | Anti-glare, 25% haze, matte |
| Image Contrast Ratio | 1200:1 |
| Brightness | 350 cd/m² |
| Viewing Angle | 178° |
| Response Time | 8 ms |
| Display Menu Language | Multilingual |
| Backlight Life | 30,000 hour(s) |
| Commercial Features | BenQ Device Management Solution (DMS), Real-Time Clock (RTC) |
| Operation Hours / Days | 18 / 7 |
| Additional Features | 10-bit support |
| Connections | |
| Connector Type | 2 x HDMI input ¦ LAN ¦ RS-232 ¦ 2 x USB 2.0 |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 24 Watt |
| Speakers | 2 x main channel speaker - 12 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 54.6 in |
| Depth (Shipping) | 5.5 in |
| Height (Shipping) | 33.3 in |
| Weight (Shipping) | 38.36 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| LAN Protocol | Fast Ethernet |
| Connect & Share | InstaShare 2 |
| Stands & Mounts | |
| Flat Panel Mount Interface | 400 x 200 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | ARM Cortex-A73 Quad-Core - 4 GB - 32 GB - Mali-G52 MC1 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
