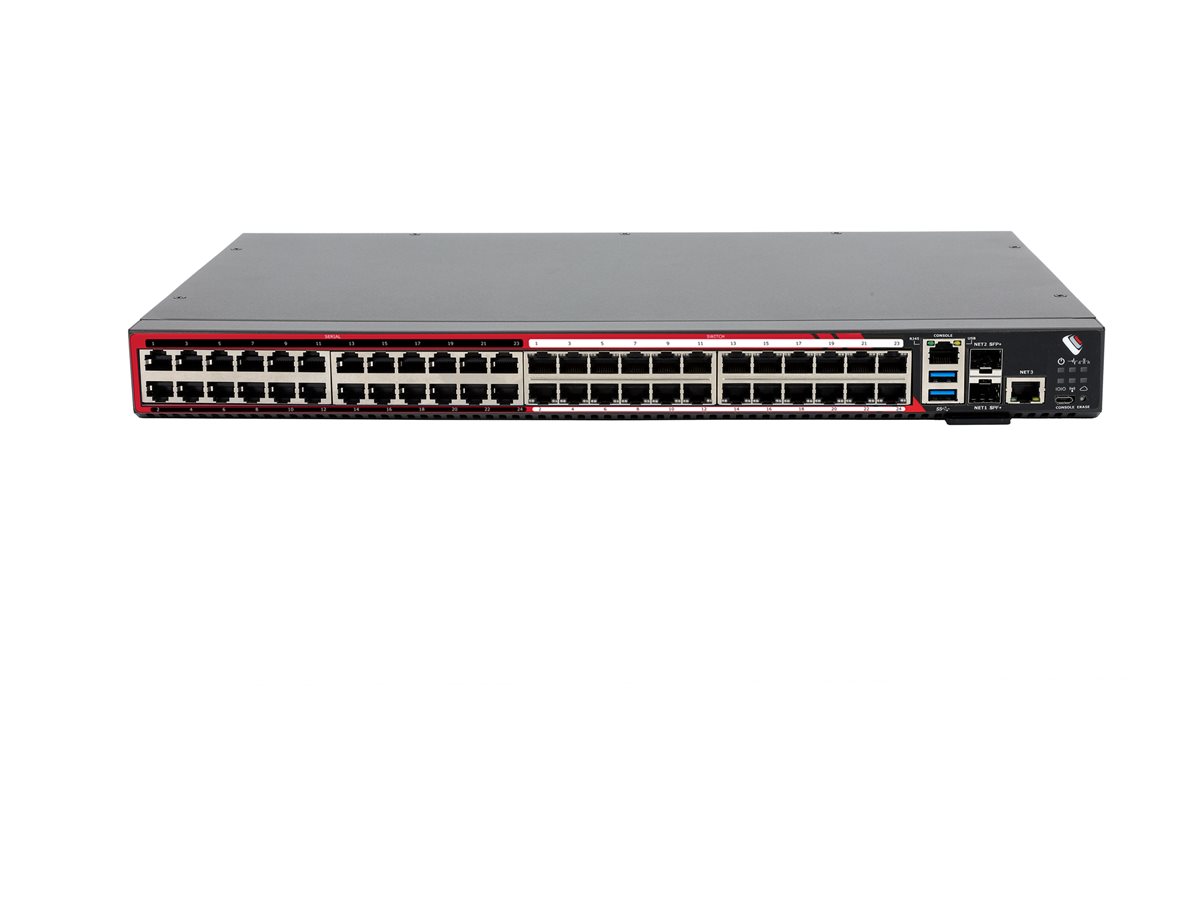

Console server - 24 ports - 10GbE, RS-232 - 3G, 4G - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Opengear OM2224-24E-10G - console server |
| Device Type | Console server |
| Form Factor | Rack-mountable - 1U |
| Processor | 1 x AMD GX-412TC 1.4 GHz |
| RAM | 8 GB |
| Flash Memory | 16 MB |
| Hard Drive | 64 GB x 1 - SATA 6Gb/s |
| Ports Qty | 24 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, RS-232 |
| Mobile Broadband Access | Yes |
| Generation | 3G, 4G |
| Cellular Protocol | LTE Advanced Pro |
| Included Accessories | Rack mount kit, 2 power cords (C13 to C14) |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 10.2 in x 1.8 in |
| Weight | 7.72 lbs |
| Manufacturer Warranty | 4-year warranty |
| General | |
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Built-in Devices | 24-port switch |
| Width | 17.3 in |
| Depth | 10.2 in |
| Height | 1.8 in |
| Weight | 7.72 lbs |
| Expansion / Connectivity | |
| Interfaces | 2 x Ethernet 1000 - SFP (mini-GBIC) ¦ 1 x console - RJ-45 ¦ 24 x RS-232 - RJ-45 ¦ 24 x 1000Base-T - RJ-45 ¦ 3 x antenna - SMA ¦ 2 x 10 Gigabit Ethernet - SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 4 years ¦ Technical support - 4 years |
| Miscellaneous | |
| Included Accessories | Rack mount kit, 2 power cords (C13 to C14) |
| Cables Included | 1 x network cable - 6 ft ¦ 1 x crossover cable |
| MTBF | 100,000 hours |
| Compliant Standards | EN 61000-4-2, IC, FCC, PTCRB, GCF, NCC, EN 61000-3-3:2013, EN 61000-3-2:2014, EN 61000-4-5:2014, JRF, JPA, EN 55032:2015 Class A, EN 61000-4-6:2008, EN 61000-4-3:2006+A1:2006+A2:2010, EN 61000-4-4:2007, EN 61000-4-8:2009, EN 61000-4-11:2010, EN 61000-4-28:2010 |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 24 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 230.4 Kbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, RS-232 |
| Network / Transport Protocol | OpenVPN |
| Remote Management Protocol | SSH, SNMP |
| Features | Firewall protection, Python runtime, Trusted Platform Module 2.0 (TPM 2.0), password protection, Smart Out-of-Band, LDAP support, IPv4 support, IPv6 support, Authentication, Authorization and Accounting (AAA), OpenVPN client, Zero-touch provisioning (ZTP), Lighthouse Service Portal (LSP) enabled |
| Authentication Method | Secure Shell (SSH), TACACS+, RADIUS, Active Directory, LDAP, Kerberos |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% |
| Communications | |
| Mobile Broadband Access | Yes |
| Generation | 3G, 4G |
| Cellular Protocol | LTE Advanced Pro |
| Processor / Memory / Storage | |
| Processors Installed | 1 x AMD GX-412TC 1.4 GHz |
| Max Supported Qty | 1 |
| RAM | 8 GB DDR3 SDRAM |
| Flash Memory | 16 MB |
| Hard Drive | SSD 64 GB x 1 - SATA 6Gb/s - M.2 |
