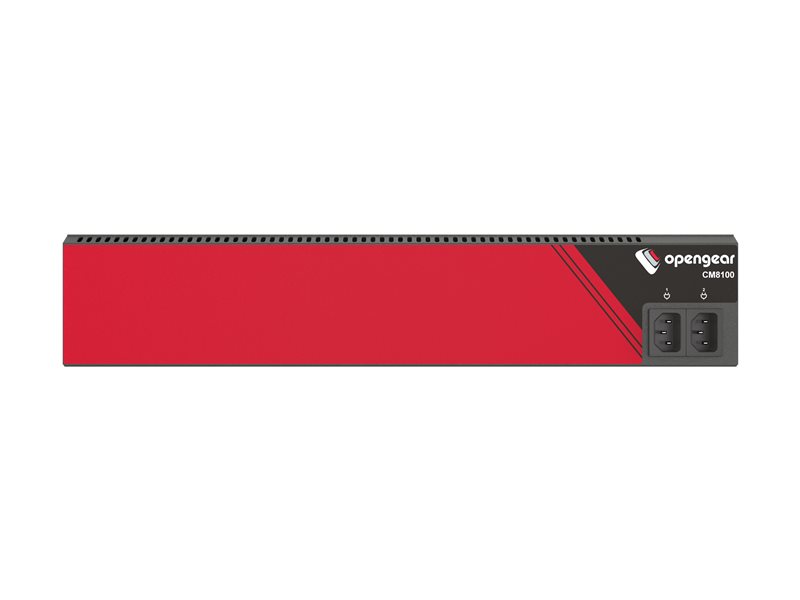

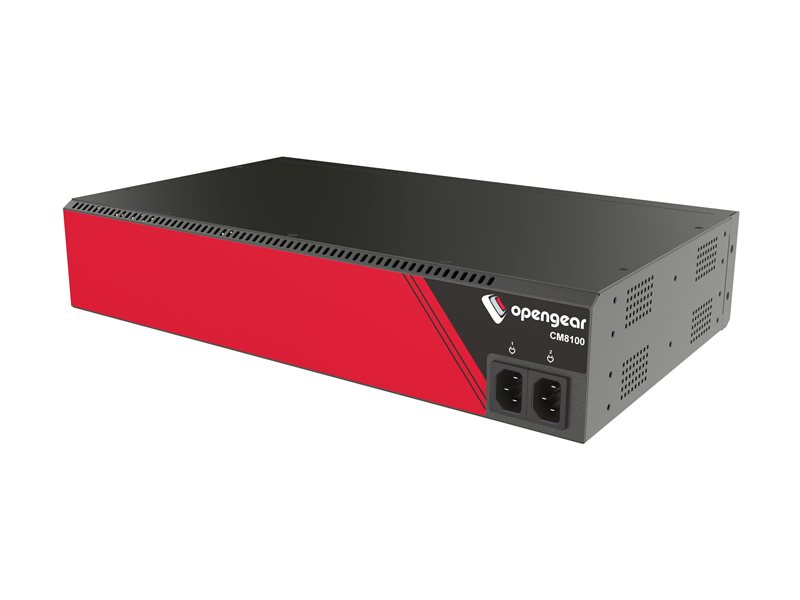

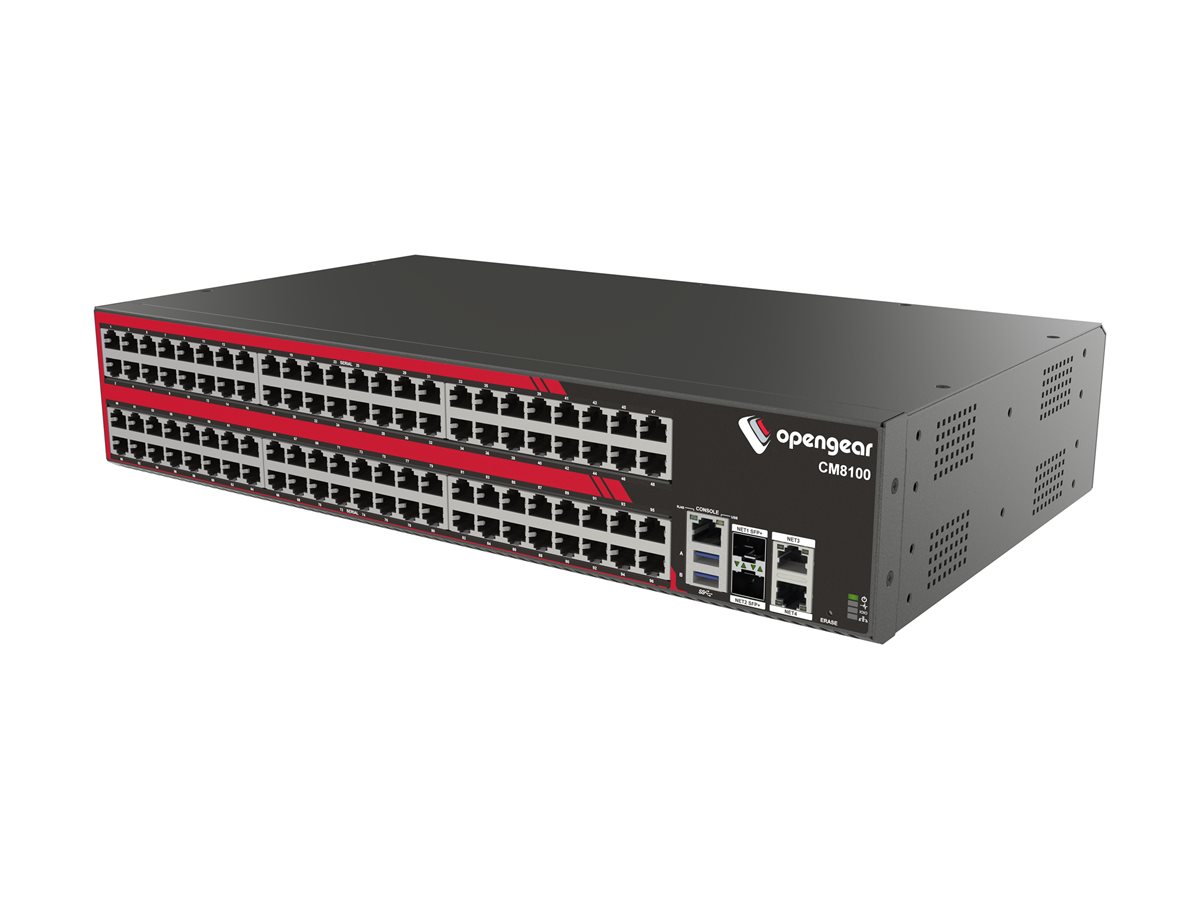

Console server - high density, with smart out-of-band management - 96 ports - RS-232, 10GbE - 2U - cloud-managed - rack-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Opengear CM8196-10G - console server - high density, with smart out-of-band management - cloud-managed - TAA Compliant |
| Device Type | Console server |
| Form Factor | Rack-mountable - 2U |
| Processor | 1 x AMD Cortex-A9 - 1.6 GHz |
| RAM | 2 GB |
| Flash Memory | 32 GB |
| Ports Qty | 96 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, 10 Gigabit Ethernet |
| Included Accessories | Rack mount kit, 2 power cords |
| Power | AC 100-240 V (50/60 Hz) |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 17.3 in x 10.4 in x 3.4 in |
| Weight | 9.92 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Console server |
| Height (Rack Units) | 2U |
| Width | 17.3 in |
| Depth | 10.4 in |
| Height | 3.4 in |
| Weight | 9.92 lbs |
| Expansion / Connectivity | |
| Interfaces | 96 x RS-232 - RJ-45 ¦ 2 x 10 Gigabit Ethernet - SFP+ ¦ 2 x 1000Base-T - RJ-45 ¦ 1 x console - RJ-45 ¦ 2 x USB 3.0 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - hardware replacement - 5 years |
| Miscellaneous | |
| Included Accessories | Rack mount kit, 2 power cords |
| Cables Included | 1 x CAT5 cable - 5 ft ¦ 1 x DB-9 to RJ-45 adapter |
| Compliant Standards | FIPS 140-2, IEC 60950-1:2005+A1+A2, IEC 62368-1:2018, 47 CFR Part 15 Class B, ICES-003 issue 7, EN 55032:2015+A11:2020, AS/NZS CISPR 32:2015, VCCI-CISPR 32:2016, EN55035:2017+A11:2020, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 63000:2018, KS C 9832:2023, KS C 9835:2019, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 96 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, 10 Gigabit Ethernet |
| Network / Transport Protocol | IPv4, IPv6, OpenVPN, IPSec |
| Remote Management Protocol | SSH, LDAP, SNMP, HTTP, IPv6 |
| Cloud-Managed | Yes |
| Features | Firewall protection, IPv6 support, IPv4 support, Python runtime, Zero-touch provisioning (ZTP), Trusted Platform Module 2.0 (TPM 2.0), OpenVPN client, IPSec client, password protection, Smart Out-of-Band, Docker Support, Management Information Base (MIB), dual core CPU, passive cooling, Lighthouse Service Portal (LSP) enabled |
| Encryption Algorithm | FIPS 140-2 |
| Authentication Method | TACACS+, Active Directory, RADIUS, LDAP, Secure Shell (SSH) |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x AMD Cortex-A9 1.6 GHz |
| Max Supported Qty | 1 |
| RAM | 2 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
