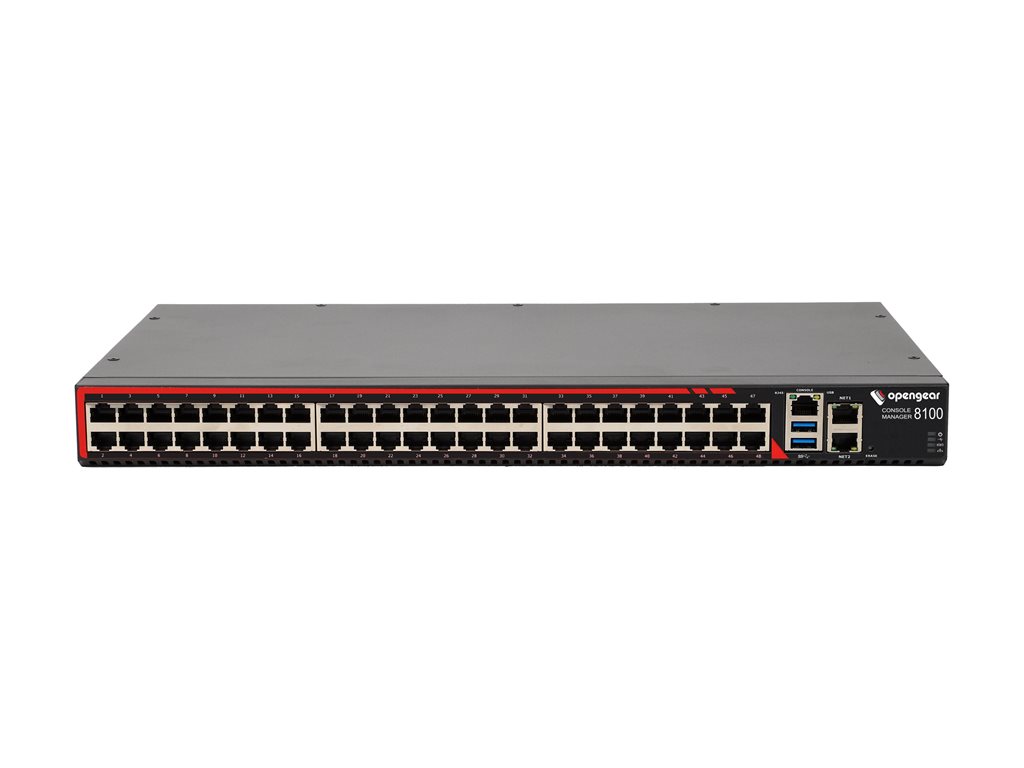

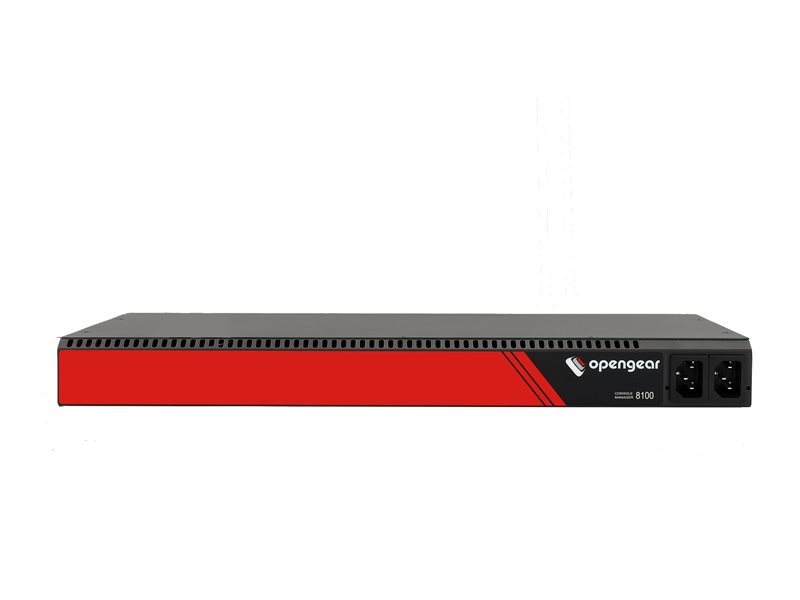

Console server - 48 ports - 1GbE, RS-232 - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Opengear CM8148 - console server |
| Device Type | Console server |
| Form Factor | Rack-mountable - 1U |
| Processor | 1 x Marvell 88F6820 - 1.6 GHz |
| RAM | 2 GB |
| Flash Memory | 32 GB |
| Ports Qty | 48 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Included Accessories | Rack mount kit, 2 power cords (C13 to C14) |
| Power | AC 100-240 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 9.3 in x 1.7 in |
| Weight | 9.92 lbs |
| Manufacturer Warranty | 4-year warranty |
| General | |
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Width | 17.3 in |
| Depth | 9.3 in |
| Height | 1.7 in |
| Weight | 9.92 lbs |
| Expansion / Connectivity | |
| Interfaces | 48 x RS-232 - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 4 years ¦ Technical support - 4 years |
| Miscellaneous | |
| Included Accessories | Rack mount kit, 2 power cords (C13 to C14) |
| Cables Included | 1 x patch cable - 6 ft ¦ 1 x DB-9 to RJ-45 adapter |
| MTBF | 150,000 hours |
| Compliant Standards | FCC Part 15 B Class A, ICES-003 issue 7, AS/NZS CISPR 32:2015, EN 55035:2017, EN 55032:2017, CISPR 32:2016, VCCI 32, CNS13438:2006, EN 61000-3-2:2019, IEC 61000-3-2:2018, IEC 61000-3-3:2013, EN 61000-4-2:2009, EN 61000-3-3:2013, IEC 61000-4-2:2008, EN 61000-4-3:2006+A1:2008+A2:2010, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, EN 61000-4-4:2012, IEC 61000-4-8:2009, IEC 61000-4-11:2004, EN 61000-4-11:2004, IEC 62368, RoHS, IEC 1950 |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 48 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 230.4 Kbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Network / Transport Protocol | IPv6, IPSec, OpenVPN |
| Remote Management Protocol | IPv6, SSH, SNMP |
| Features | Trusted Platform Module 2.0 (TPM 2.0), Python runtime, Docker Support, ESD Protector, 1500V isolation, passive cooling, firewall protection, Authentication, Authorization and Accounting (AAA), Zero-touch provisioning (ZTP), Management Information Base (MIB), VPN support, Smart Out-of-Band, Lighthouse Service Portal (LSP) enabled |
| Authentication Method | Secure Shell (SSH), TACACS+, Active Directory, RADIUS, LDAP |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 15 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Marvell 88F6820 1.6 GHz |
| Max Supported Qty | 1 |
| RAM | 2 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
