Server - rack-mountable 1U - no CPU - RAM 0 GB - NVMe - no HDD - monitor: none
| Main Specifications | |
|---|---|

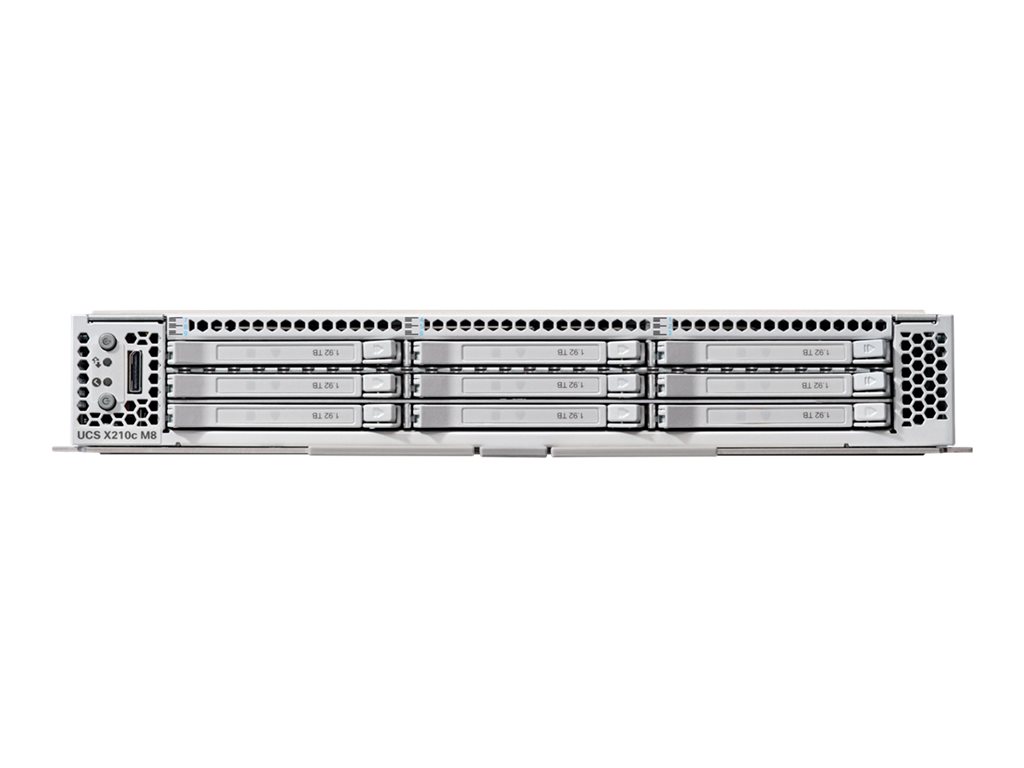

| Product Description | Cisco Compute Hyperconverged with vSAN 210c M8 All-NVMe - rack-mountable no CPU - 0 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Processor | No CPU |
| RAM | 0 GB (installed) / 8 TB (max) - DDR5 SDRAM |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Software Included | Cisco Intersight |
| Dimensions (WxDxH) | 11.3 in x 23.7 in x 1.8 in |
| Weight | 12.85 lbs |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Front Accessible Bays Qty | 6 |
| Hot-Swap Bays Qty | 6 |
| Expansion / Connectivity | |
| Bays | 6 (total) / 6 (free) x hot-swap |
| Slots | 3 (total) / 3 (free) x expansion slot ¦ 1 (total) / 1 (free) x mLOM ¦ 2 (total) / 2 (free) x M.2 Card |
| Interfaces | 1 x OCuLink |
| RAM | |
| Installed Size | 0 GB (installed) / 8 TB (max) |
| Technology | DDR5 SDRAM |
| Slots | 32 (total) / 32 (empty) |
| Power | |
| Device Type | Power supply - hot-plug |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Operating System / Software | |
| Software | Cisco Intersight |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 11.3 in |
| Depth | 23.7 in |
| Height | 1.8 in |
| Weight | 12.85 lbs |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
