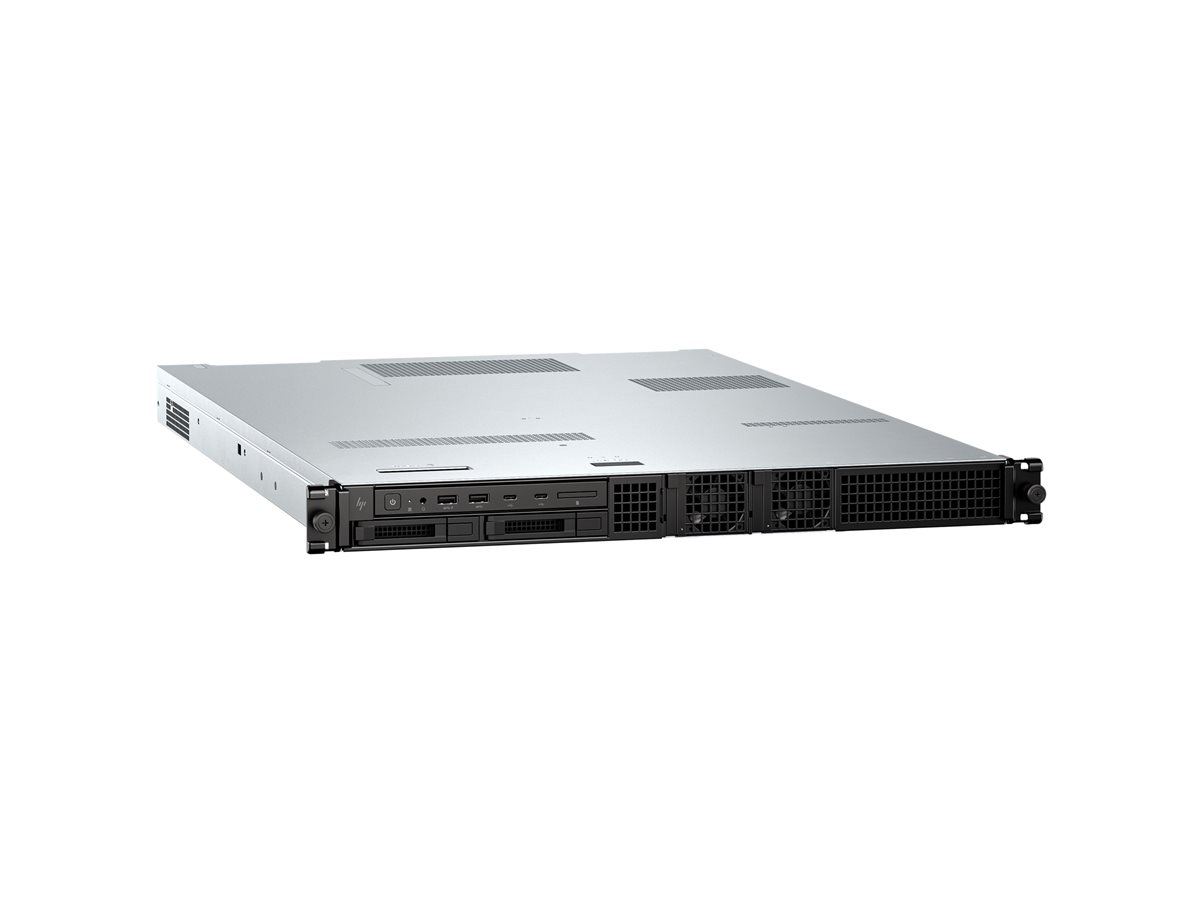

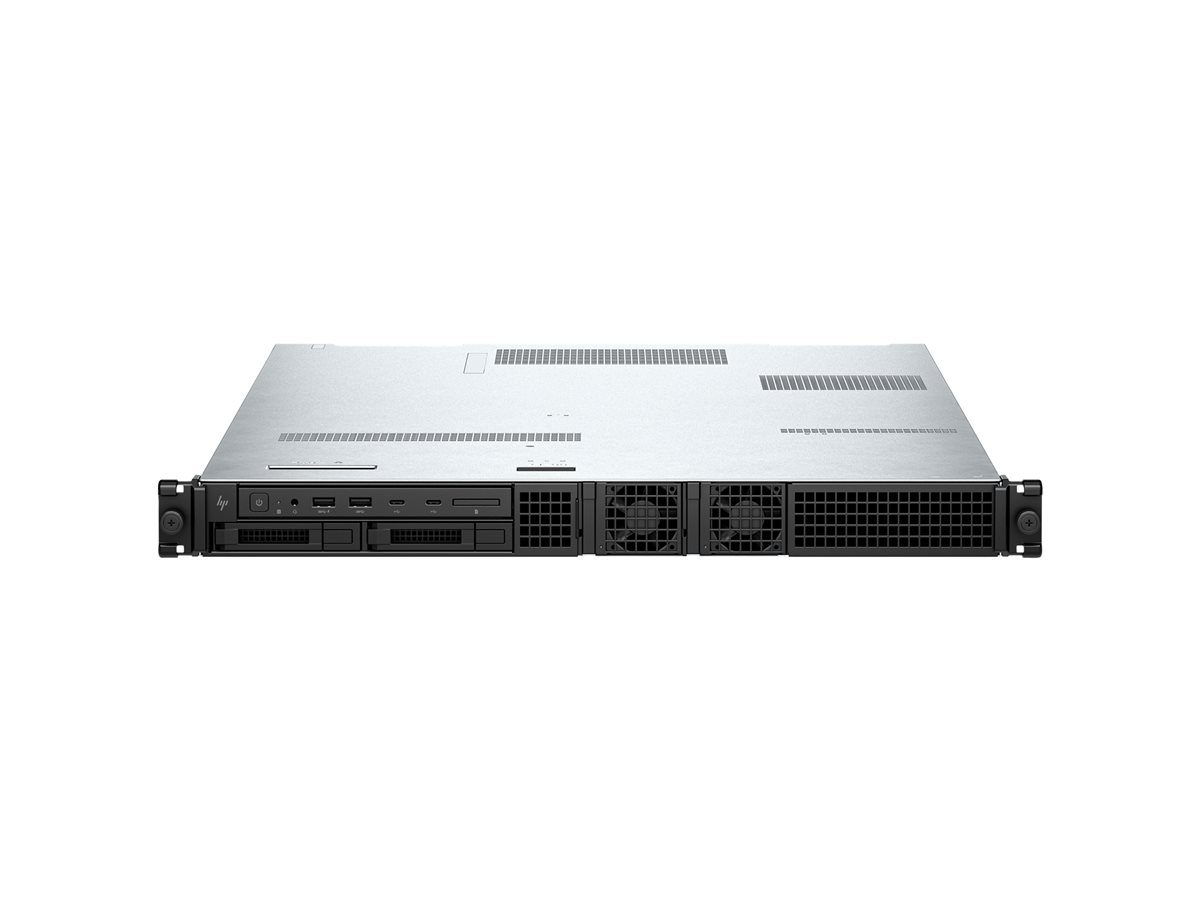

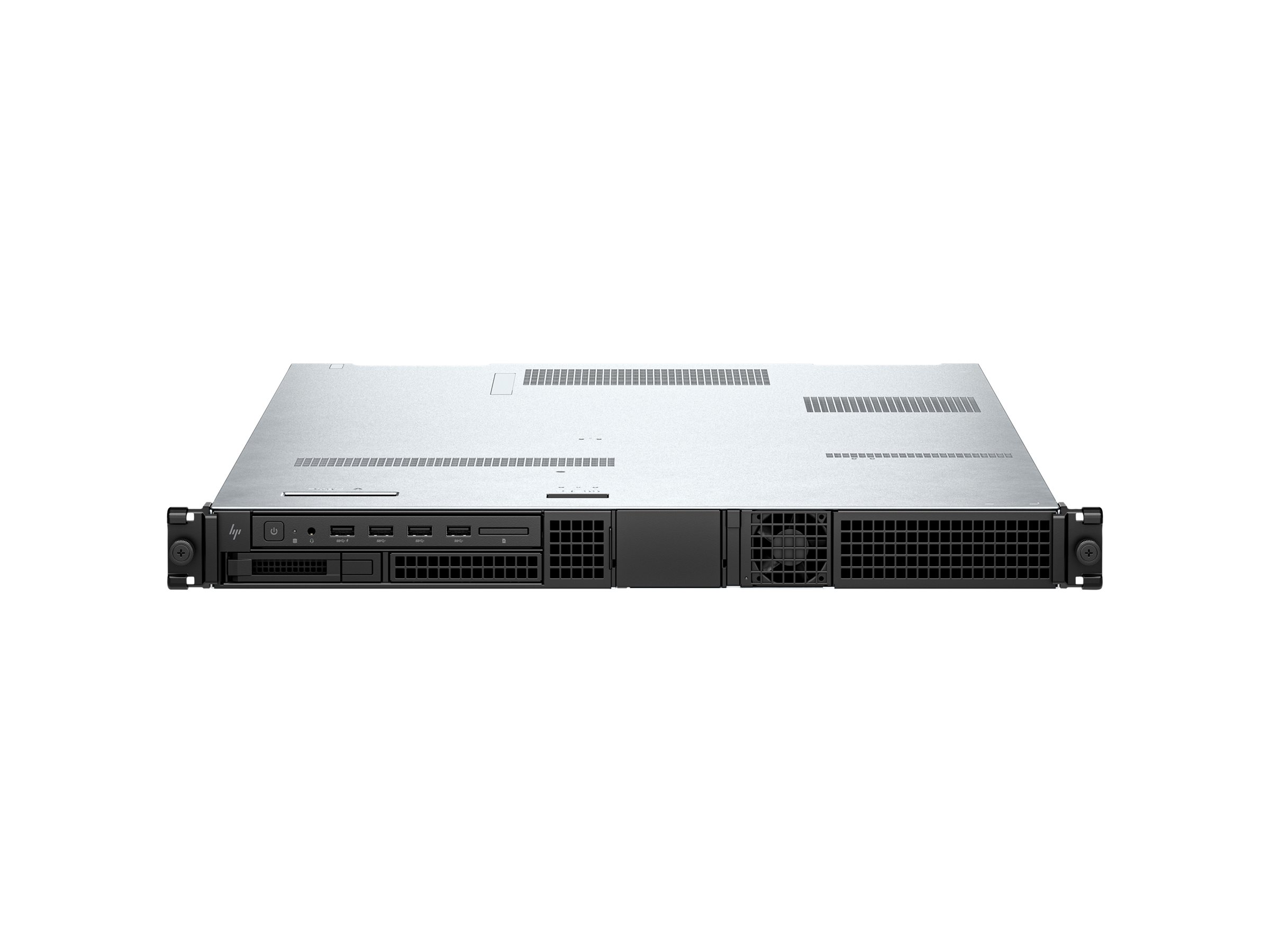

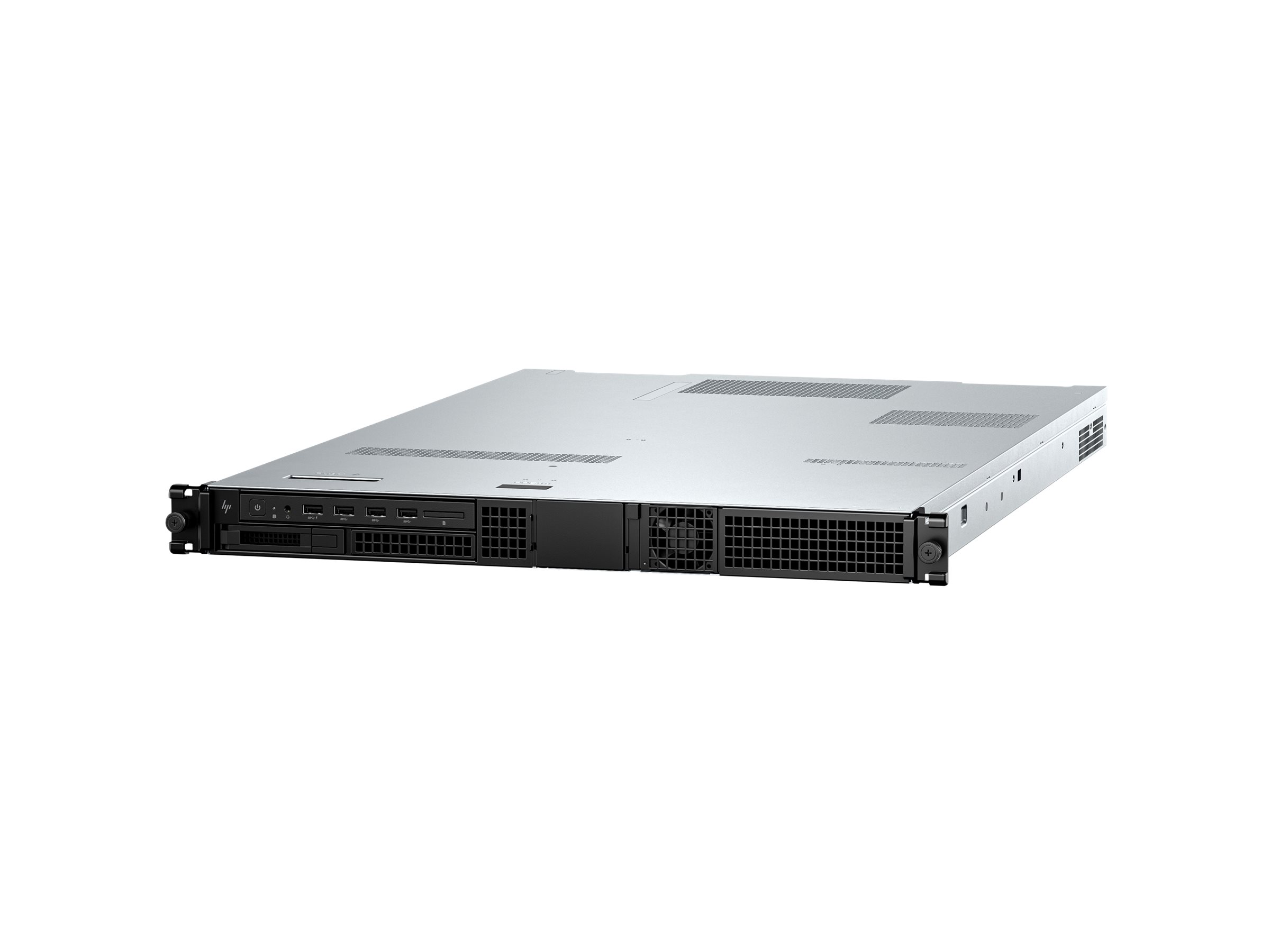

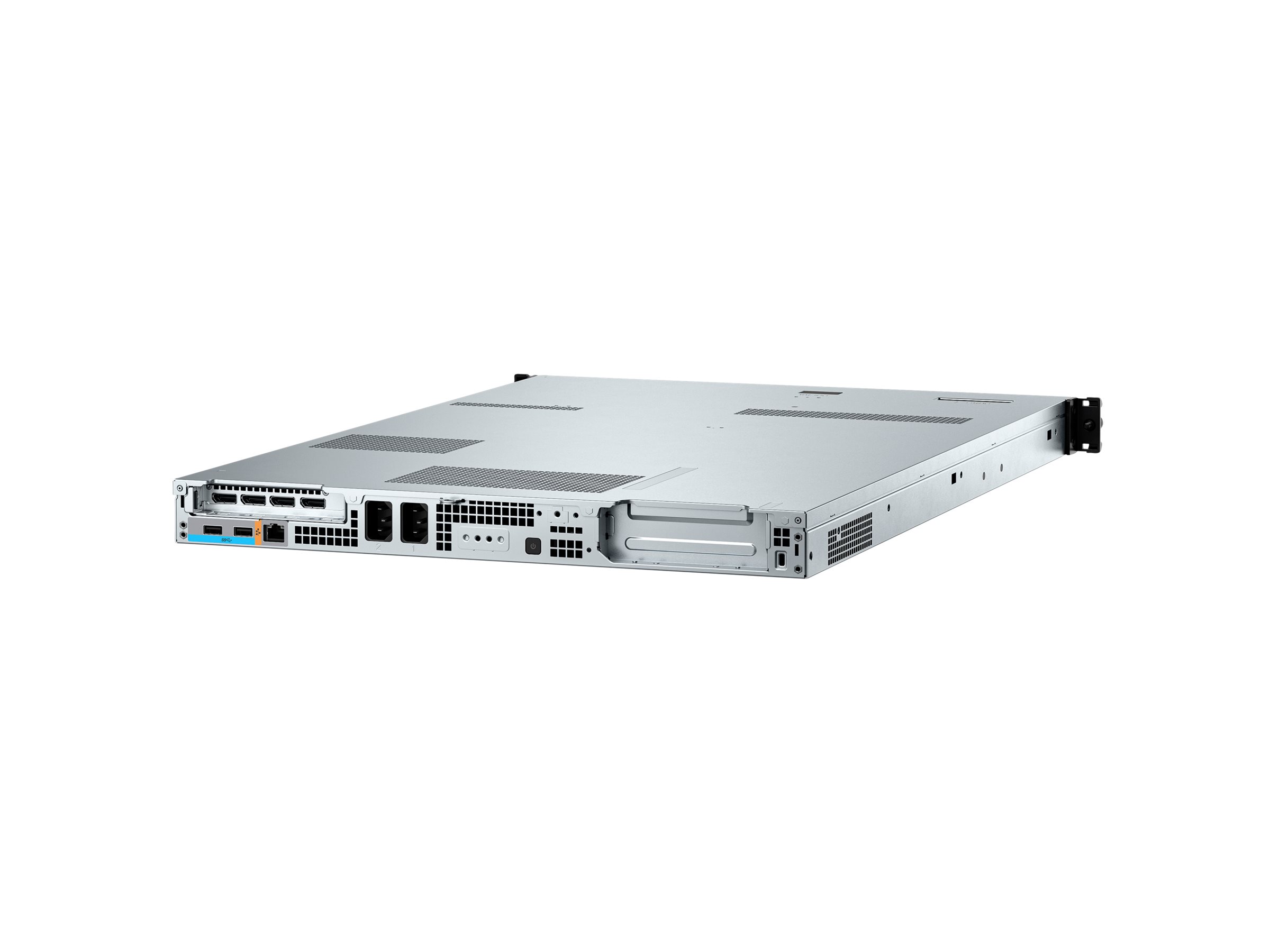

AI Workstation - rack-mountable 1U - 1 x Xeon W3-2423 / up to 4 GHz - RAM 32 GB - SSD 1 TB - SED, HP Z Turbo Drive, NVMe, TLC - RTX A1000 - Win 11 Pro - monitor: none - keyboard: US - Smart Buy - with HP 3 years Onsite Care Hardware Support for Workstations - with HP Wolf Pro Security Edition (1 year)
| Main Specifications | |
|---|---|
| Product Description | HP Workstation Z4 G5 - rack-mountable - AI Workstation - Xeon W3-2423 - 32 GB - SSD 1 TB - US - with HP Wolf Pro Security Edition (1 year) |
| Type | Workstation - rack-mountable - AI Workstation |
| Bundled Services | HP 3 years Onsite Care Hardware Support for Workstations |
| Height (Rack Units) | 1U |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Xeon W3-2423 (up to 4 GHz, (6-core) |
| Processor Main Features | Intel Turbo Boost Technology, 12 Threads |
| Cache Memory | 15 MB L3 cache |
| Cache Per Processor | 15 MB |
| RAM | 32 GB DDR5 SDRAM - ECC |
| Hard Drive | SSD 1 TB - PCI Express 4.0 - M.2 - Self-Encrypting Drive, HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Optical Storage | No optical drive |
| Graphics Controller | NVIDIA RTX A1000 |
| Video Memory | 8 GB GDDR6 SDRAM |
| Networking | 10Mb LAN |
| Keyboard | US |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP Driver Packs, HP Notifications, HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP Client Management Script Library (free download), myHP, HP Desktop Support Utilities, HP Image Assistant Gen5 (free download), HP Smart Support, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack, HP Services Scan, HP Data Science Stack Manager, HP Sure Start, HP Anyware Remote System Controller |
| Dimensions (WxDxH) | 1.7 in x 17.2 in x 25.8 in |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | ENERGY STAR Qualified |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| General | |
| Type | Workstation |
| AI Level | AI Workstation |
| Bundled Services | HP 3 years Onsite Care Hardware Support for Workstations |
| Product Form Factor | Rack-mountable - 1U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| Expansion / Connectivity | |
| Bays | 1 internal 2x2.5" / 1x3.5" shared |
| Slots | 2 M.2 Card (PCIe 4.0 x4 mode) ¦ 1 PCIe 5.0 x16 (x8 mode) ¦ 1 PCIe 5.0 x8 ¦ 1 PCIe 5.0 x16 |
| Interfaces | 6 x USB 3.2 Gen 1 (4 front, 2 rear) (one of them is charging) ¦ 1 x headphones (1 front) ¦ 1 x LAN - RJ-45 (1 rear) |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 32 GB |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 4800 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 2 (empty) |
| Configuration Features | 2 x 16 GB |
| Networking | |
| Data Link Protocol | Ethernet |
| Power | |
| Device Type | Power supply |
| Power Provided | 675 watt |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| Cache Memory | |
| Installed Size | L3 cache - 15 MB |
| Cache Per Processor | 15 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | NVIDIA RTX A1000 |
| Video Memory | 8 GB GDDR6 SDRAM |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP Driver Packs, HP Notifications, HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP Client Management Script Library (free download), myHP, HP Desktop Support Utilities, HP Image Assistant Gen5 (free download), HP Smart Support, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack, HP Services Scan, HP Data Science Stack Manager, HP Sure Start, HP Anyware Remote System Controller |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 |
| Features | Self-Encrypting Drive, HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 1.7 in |
| Depth | 17.2 in |
| Height | 25.8 in |
| Keyboard | |
| Keyboard Name | HP 320K |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 320M |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Xeon W3-2423 |
| Max Turbo Speed | 4 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology, 12 Threads |
| Chipset Type | Intel W790 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
