KVM / audio / USB switch - secure - 2 x KVM port(s) - 1 local user - desktop - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Startech - KVM / audio / USB switch - secure - 2 ports - TAA Compliant |
| Device Type | KVM / audio / USB switch - 2 ports |
| Subtype | KVM |
| Ports | 2 x KVM port(s) |
| KVM Users Qty | 1 local user |
| Features | CAC reader support, metal housing, push button, NIAP Protection Profile 4.0, 2 channel analog audio, dual monitor support |
| Power | DC 12 V |
| Dimensions (WxDxH) | 6.7 in x 8.8 in x 2.6 in |
| Color | Black |
| System Requirements | Microsoft Windows XP / 7 / 8 / 10 / 11 |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | KVM / audio / USB switch - 2 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 2 x KVM port(s) |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Features | CAC reader support, metal housing, push button, NIAP Protection Profile 4.0, 2 channel analog audio, dual monitor support |
| Status Indicators | Port status, status, CAC |
| Expansion / Connectivity | |

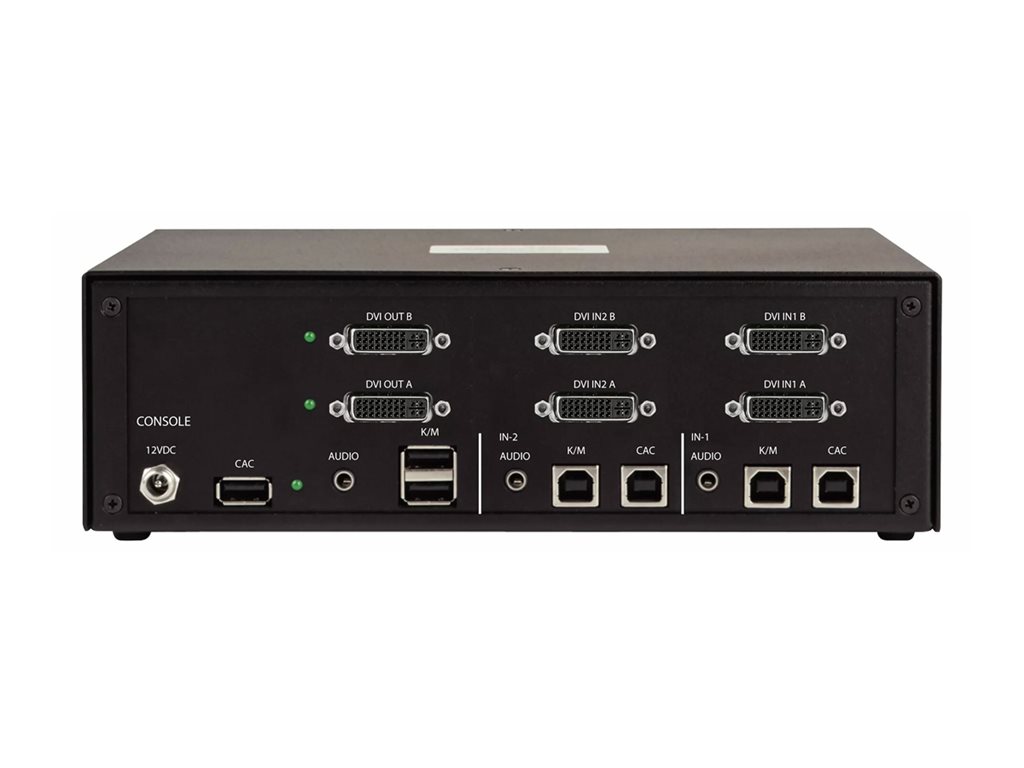

| Interfaces | 2 x DVI-D (dual link) input female ¦ 2 x USB input Type B common access card (CAC) ¦ 2 x keyboard / mouse Type B ¦ 2 x audio input phone stereo 3.5 mm female ¦ 1 x DVI-D (dual link) output ¦ 2 x USB output Type A ¦ 1 x audio output phone stereo 3.5 mm ¦ 1 x USB output Type A common access card (CAC), for user |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | FCC, RoHS, WEEE, NIAP PP 4.0, PSD PP v4.0 |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Software / System Requirements | |
| OS Required | Microsoft Windows XP / 7 / 8 / 10 / 11 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 6.7 in |
| Depth | 8.8 in |
| Height | 2.6 in |
