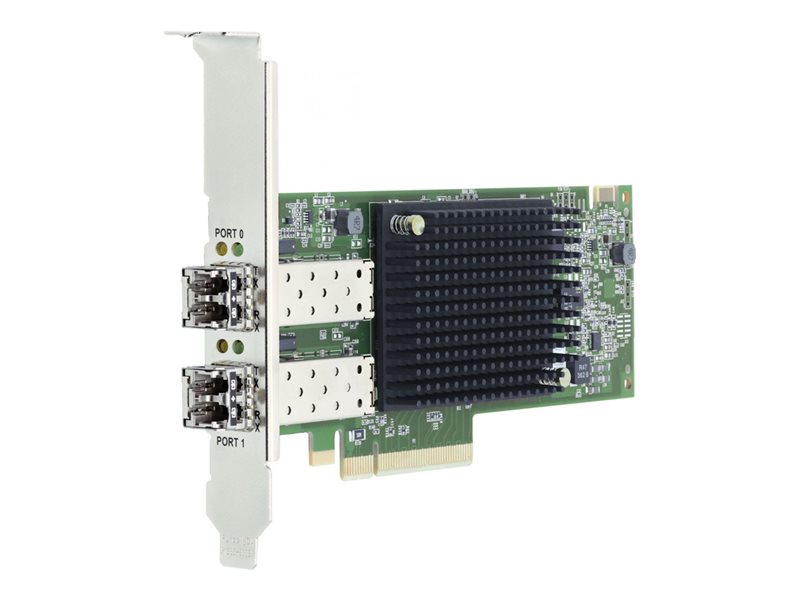

Secure host bus adapter - PCIe 4.0 x8 - 32Gb Fibre Channel x 2
| Main Specifications | |
|---|---|
| Product Description | Emulex LPe37102 - secure host bus adapter - PCIe 4.0 x8 - 32Gb Fibre Channel x 2 |
| Device Type | Secure host bus adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 4.0 x8 |
| PCI Specification Revision | PCIe 4.0 |
| Ports | 32Gb Fibre Channel x 2 |
| Dimensions (WxDxH) | 6.6 in x 2.7 in |
| Cabling Type | Fibre Channel |
| Data Link Protocol | 32Gb Fibre Channel |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Secure host bus adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 4.0 x8 |
| PCI Specification Revision | PCIe 4.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x 32Gb Fibre Channel |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC, ICES Class A, UL, CSA, UKCA, EU RoHS, EU Low Voltage Directive, RCM Class A, VCCI Class A, KCC Class A, China RoHS, BSMI Class A, Taiwan BSMI RoHS, ANSI, UEFI 2.7 |
| Networking | |
| Ports | 32Gb Fibre Channel x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Fibre Channel |
| Data Link Protocol | 32Gb Fibre Channel |
| Features | NPIV technology, secure boot, SPDM, AES encryption |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Depth | 6.6 in |
| Height | 2.7 in |
