Base - router RoCE v2 - front to back airflow - rack-mountable
| Main Specifications | |
|---|---|

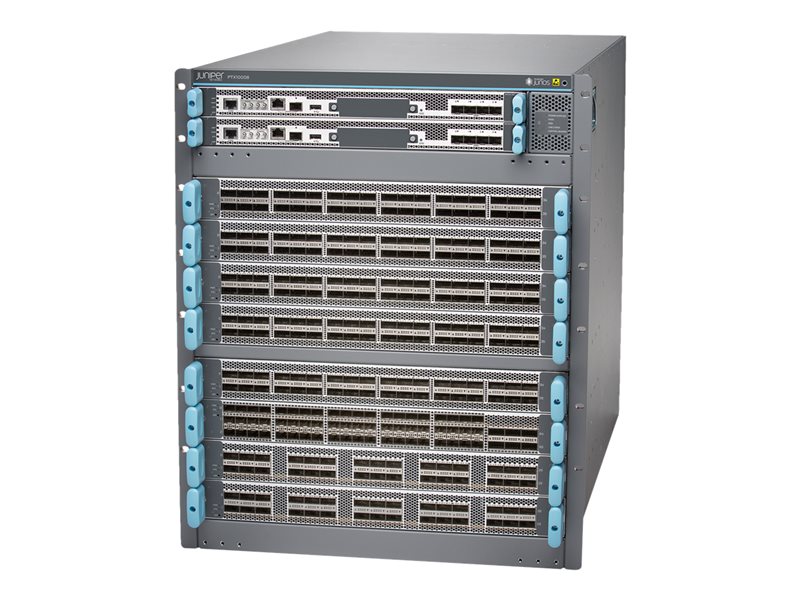

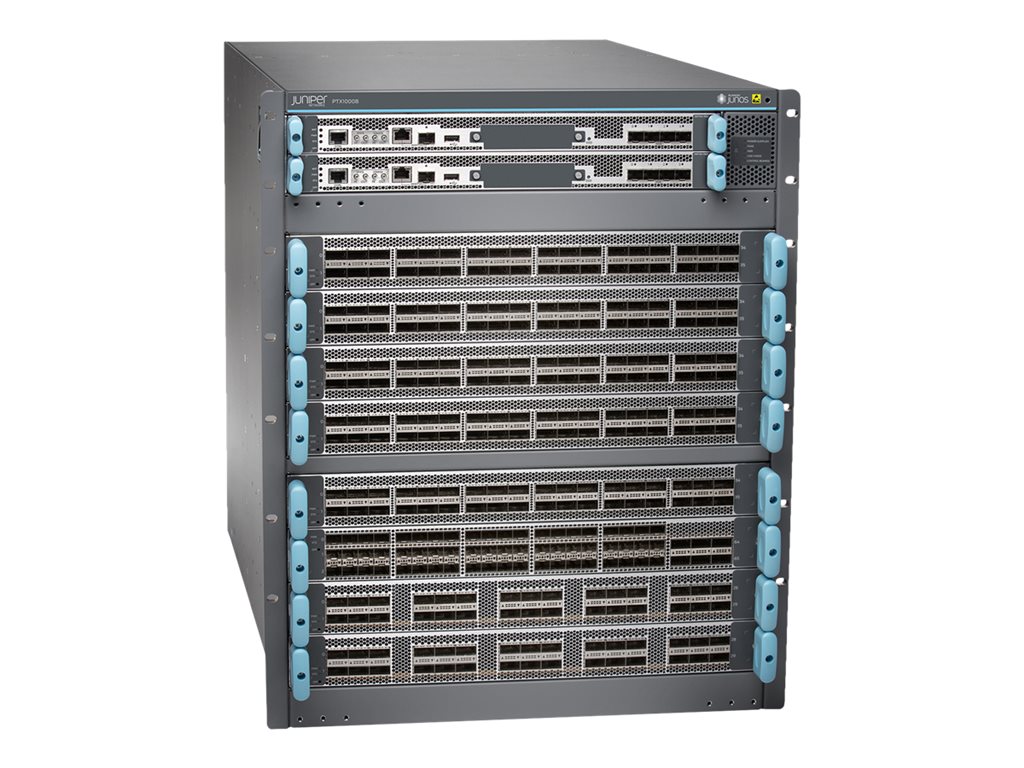

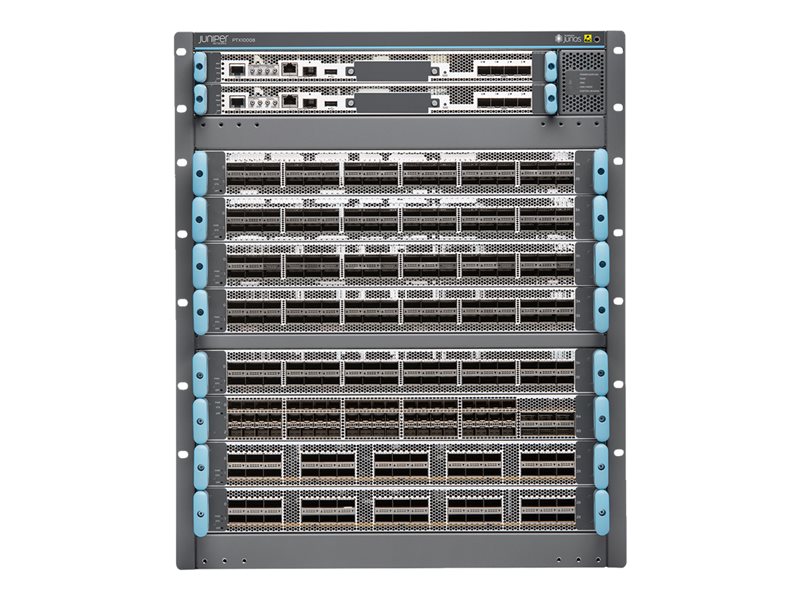

| Product Description | Juniper Networks PTX Series PTX10008 - Base - router - rack-mountable |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 13U |
| Data Link Protocol | RDMA over Converged Ethernet (RoCE v2) |
| Performance | Forwarding capacity: 230.4 Tbps |
| Network / Transport Protocol | IPv4, ARP, IPv6 |
| Routing Protocol | MPLS |
| Remote Management Protocol | DHCP |
| Features | VOQ scheduling, load balancing, scalable cell-based fabric design, SR, SRv6 support, DoS protection, LLDP support, LACP support, TPM 2.0, MACsec support, EVPN, MPLS support, VXLAN |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP) |
| Power | AC 200-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 32 in x 22.7 in |
| Weight | 421.08 lbs |
| General | |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 13U |
| Connectivity Technology | Wired |
| Data Link Protocol | RDMA over Converged Ethernet (RoCE v2) |
| Performance | Forwarding capacity: 230.4 Tbps |
| Network / Transport Protocol | IPv4, ARP, IPv6 |
| Routing Protocol | MPLS |
| Remote Management Protocol | DHCP |
| Features | VOQ scheduling, load balancing, scalable cell-based fabric design, SR, SRv6 support, DoS protection, LLDP support, LACP support, TPM 2.0, MACsec support, EVPN, MPLS support, VXLAN |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP) |
| Status Indicators | Power, status |
| Expansion / Connectivity | |
| Expansion Slots | 3 Switch Interface Board (SIB) |
| Miscellaneous | |
| Included Accessories | 8 x linecard slot cover |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 6 |
| Voltage Required | AC 200-240 V (50 - 60 Hz) |
| Power Consumption Operational | 12.7 kW |
| Software / System Requirements | |
| OS Provided | Junos Evolved |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 114.8 °F |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 32 in |
| Height | 22.7 in |
| Weight | 421.08 lbs |
