Router 100GbE, 400GbE - front to back airflow - rack-mountable - TAA Compliant - for P/N: APBR-ADP-M16, APBRU-M16, APBRU-T12, APOUTBR-ART, APOUTBR-ART2, APOUTBR-FM2, APWP-KIT
| Main Specifications | |
|---|---|

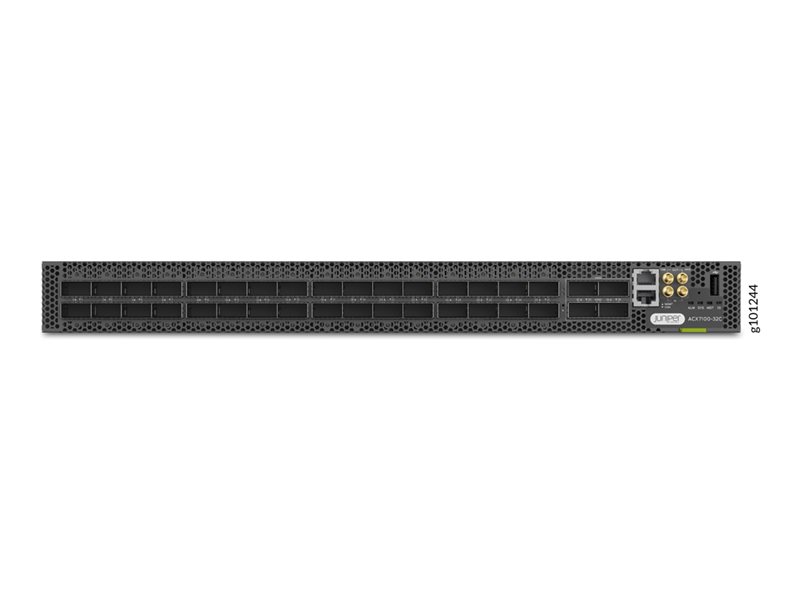

| Product Description | Juniper Networks ACX7100 Series ACX7100-32C-DCO-KT - router - rack-mountable - TAA Compliant |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 1U |
| Data Link Protocol | 100 Gigabit Ethernet, 400 Gigabit Ethernet |
| Performance | Throughput: 4.8 Tbps |
| Features | Reset button, CLI management, DCO |
| Power | DC -40 V - -72 V |
| Dimensions (WxDxH) | 17.4 in x 25.1 in x 1.8 in |
| Weight | 28.44 lbs |
| TAA Compliant | Yes |
| Designed For | P/N: APBR-ADP-CR9, APBR-ADP-CSC, APBR-ADP-M16, APBR-ADP-RT15, APBR-ADP-WS15, APBR-M16, APBR-SW1, APBR-T58, APBR-U, APBRU-M16, APBRU-T12, APOUTBR-ART, APOUTBR-ART2, APOUTBR-FM, APOUTBR-FM2, APWP-KIT, DC-01 |
| General | |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | 100 Gigabit Ethernet, 400 Gigabit Ethernet |
| Performance | Throughput: 4.8 Tbps |
| Features | Reset button, CLI management, DCO |
| Compliant Standards | CAN/CSA-C22.2 No. 60950-1, UL 60950-1 Second Edition, EN 60950-1:2006+A2:2013, IEC 60950-1:2005 + A2:2013, CAN/CSA-C22.2 No. 62368-1-14, UL 62368-1, EN 62368-1:2014, IEC 62368-1: 2014 Second Edition, EN 60825-1, EN 300 386 V1.6.1, EN 300 386 V2.1.1, FCC CFR47 Part 15 A, EN 55032 Class A, CISPR 32 Class A, ICES-003 Class A, VCCI, BSMI, CNS 13438, NCC C6357, KN32, TEC/EMI/TEL-001/FEB-09, TEC-SD-DD-EMC-221-05-OCT-16, EN55024, CISPR 24, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, KN35, KN 61000-4-11, KN 61000-4-2, KN 61000-4-3, KN 61000-4-4, KN 61000-4-5, KN 61000-4-6, EN 55035, CISPR 35: 2016, SR-3580 NEBS Level 3, GR-63-CORE, GR-1089-CORE, ETSI ES 203 136 V.1.1.1, ECR 3.0.1 |
| Processor | Intel 2.9 GHz |
| RAM | 64 GB |
| Built-in Devices | 6 x hot-swap fans, status LED, 2 x 100 GB SSD |
| Status Indicators | Alarm, system, MST, identify, link/activity, port status |
| Expansion / Connectivity | |
| Interfaces | 32 x 100Gb Ethernet - QSFP28 ¦ 4 x 400Gb Ethernet - QSFP56-DD ¦ Management: 1 x RJ-45 ¦ USB: 1 x Type A ¦ Console: 1 x RJ-45 |
| Miscellaneous | |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply - 1600 watt |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Voltage Required | DC -40 V - -72 V |
| Power Consumption Operational | 570 watt |
| Software / System Requirements | |
| OS Provided | JUNOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 25.1 in |
| Height | 1.8 in |
| Weight | 28.44 lbs |
| Compatibility Information | |
| Designed For | P/N: APBR-ADP-CR9, APBR-ADP-CSC, APBR-ADP-M16, APBR-ADP-RT15, APBR-ADP-WS15, APBR-M16, APBR-SW1, APBR-T58, APBR-U, APBRU-M16, APBRU-T12, APOUTBR-ART, APOUTBR-ART2, APOUTBR-FM, APOUTBR-FM2, APWP-KIT, DC-01 |
