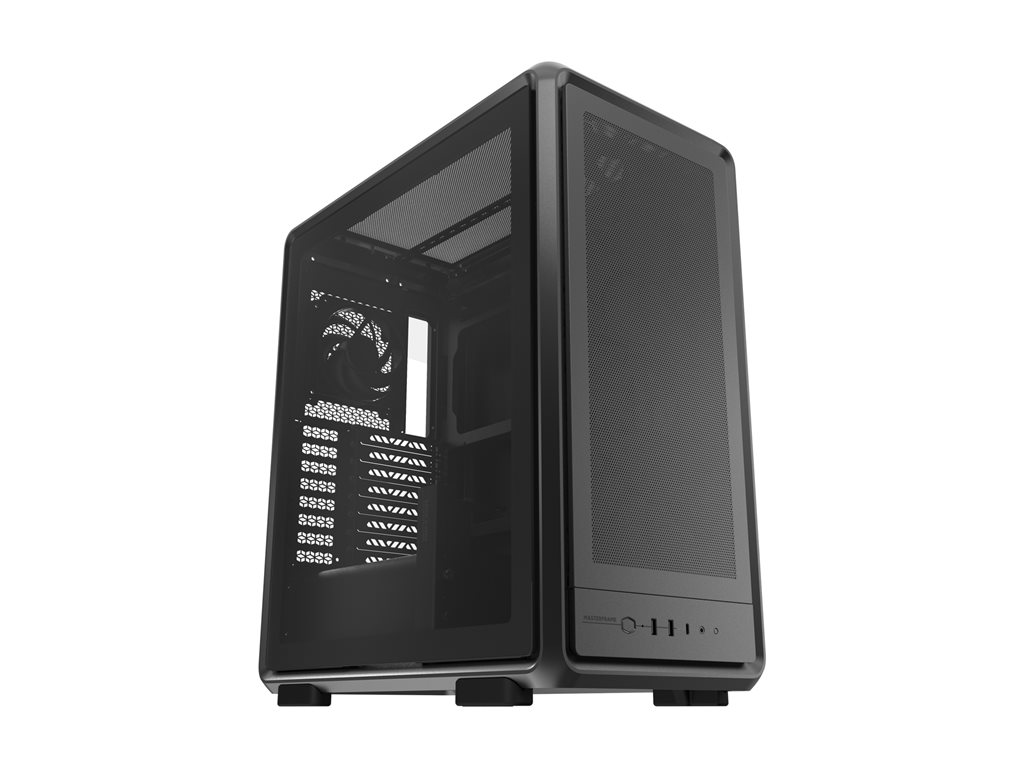

Mid tower - SSI CEB - windowed side panel (tempered glass) (ATX) - black - USB/Audio
| Main Specifications | |
|---|---|
| Product Description | Cooler Master MasterFrame 500 Mesh ARGB - mid tower - SSI CEB |
| Product Type | System cabinet |
| Form Factor | Mid tower |
| Windowed Side Panel | Yes, tempered glass |
| Color | Black |
| I/O Connectors | 2 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2x2 ¦ 1 x headphone/microphone |
| Supported Motherboards | Extended ATX, microATX, ATX, Mini-DTX, Mini-ITX, SSI CEB |
| System Cabinet Features | Cable management system (43 mm clearance), removable dust filters, ARGB fans |
| Power Device | (ATX) |
| Dimensions (WxDxH) | 10.3 in x 18.5 in x 21.4 in |
| Weight | 22.05 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Form Factor | Mid tower |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | SSI CEB |
| Supported Motherboards | Extended ATX, microATX, ATX, Mini-DTX, Mini-ITX, SSI CEB |
| Internal Bays Qty | 8 |
| Product Material | SGCC, aluminum |
| Color | Black |
| Cooling System | Front: 200 mm fan x 2 / 3 x 120 mm or 2 x 140/180 mm fan supported or 120/140/240/280/360 mm radiator supported ¦ Top: 200 mm fan mount x 2 / 3 x 120 mm or 2 x 140/180 mm fan supported or 120/140/240/280/360 mm radiator supported ¦ Rear: 120 mm fan x 1 / 120 mm radiator supported ¦ Bottom: 120 mm fan mount x 1 |
| CPU Cooler Max Height | 190 mm |
| Video Card Max Length | 390 mm |
| Power Supply Max Length | 235 mm |
| System Cabinet Features | Cable management system (43 mm clearance), removable dust filters, ARGB fans |
| Expansion / Connectivity | |
| Expansion Bays | 1 (total) / 1 (free) x internal - 2.5" / 3.5" shared |
| Expansion Slots | 8 |
| Interfaces | 2 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2x2 ¦ 1 x headphone/microphone |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | GPU support bracket |
| Power | |
| Specification Compliance | ATX |
| Max Supported Qty | 1 |
| Dimensions & Weight | |
| Width | 10.3 in |
| Depth | 18.5 in |
| Height | 21.4 in |
| Weight | 22.05 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14.5 in |
| Shipping Depth | 22.7 in |
| Shipping Height | 25.7 in |
| Shipping Weight | 27.78 lbs |
