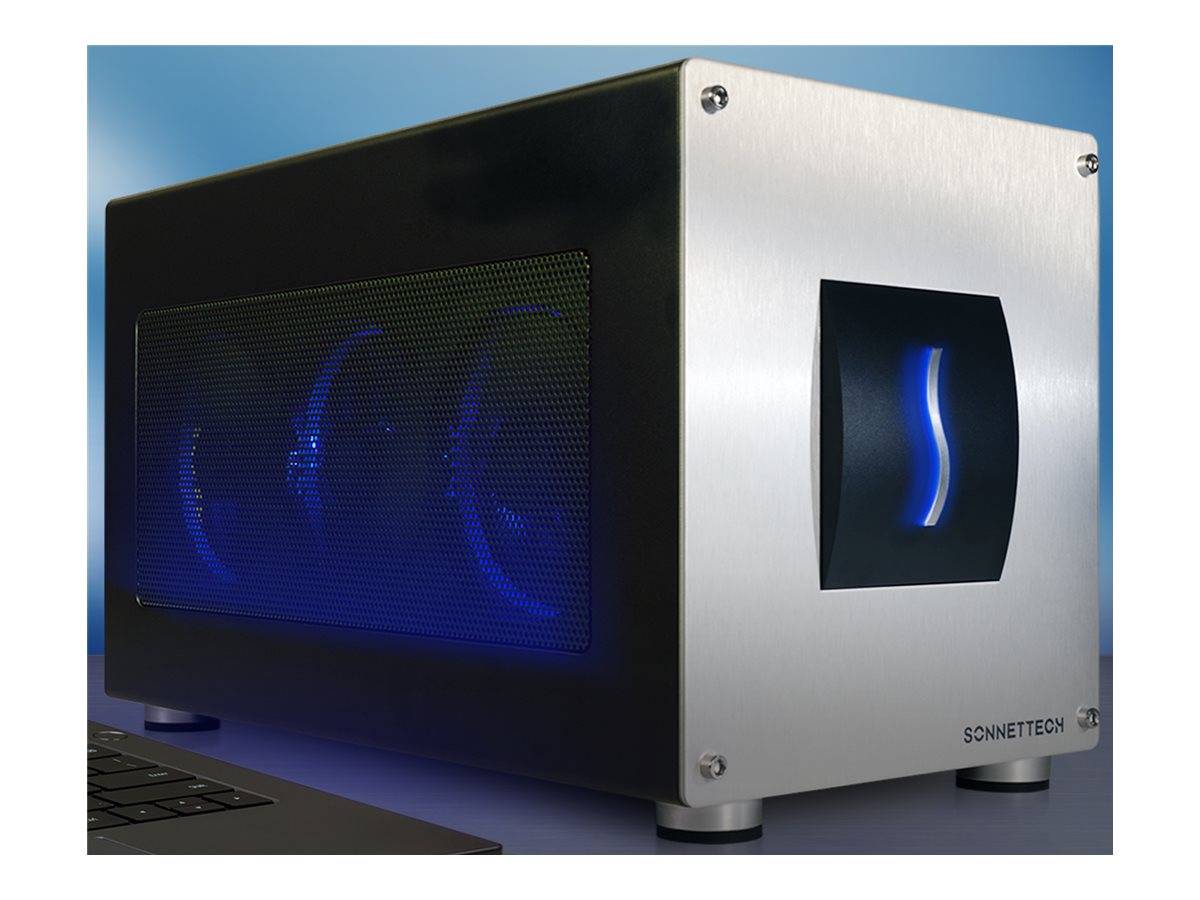

System bus extender - 2.5GbE, 5GbE, 1GbE - 850 watt
| Main Specifications | |
|---|---|
| Product Description | Sonnet eGPU Breakaway Box 850 T5 - system bus extender - 2.5GbE, 5GbE, 1GbE |
| Product Type | System bus extender |
| Dimensions (WxDxH) | 8.3 in x 15.6 in x 9.6 in |
| Weight | 14.11 lbs |
| Networking | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet |
| Power | Power supply (50 - 60 Hz) 850 watt Power Provided (AC 100-240 V) |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | System bus extender |
| Width | 8.3 in |
| Depth | 15.6 in |
| Height | 9.6 in |
| Weight | 14.11 lbs |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x PCI Express 4.0 - full-length, full-height |
| Interfaces | 1 x network - 100M/1G/2.5G/5G Gigabit Ethernet - RJ-45 ¦ 1 x Thunderbolt 5 with Power Delivery (100W) - 24 pin USB-C ¦ 1 x Thunderbolt - 24 pin USB-C ¦ 3 x USB 3.2 Gen 2 - 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Thunderbolt 5 cable - 2.6 ft |
| Features | Built-in cooling fan, 80 Gbps Thunderbolt bandwidth |
| Networking | |
| Data Link Protocol | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Power Device | Power supply |
| Voltage Required | (50 - 60 Hz) |
| Power Provided | 850 watt |
| Voltage Provided | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| System Requirements | |
| OS Required | Microsoft Windows 11 |
