Wireless access point - 1GbE - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed - wall mountable
| Main Specifications | |
|---|---|
| Product Description | NETGEAR Insight WAX610W - wireless access point - Wi-Fi 6 - cloud-managed |
| Device Type | Wireless access point |
| Form Factor | Wall mountable - indoor |
| Localization | North America |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (5 GHz): 1200 Mbps ¦ Maximum data rate (2.4 GHz): 600 Mbps ¦ Aggregate throughput: 1.8 Gbps |
| Capacity | Streams: 4 ¦ SSIDs total: 8 |
| Included Accessories | Wall mounting kit |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Dimensions (WxDxH) | 4.3 in x 5.1 in x 1.3 in |
| Weight | 13.4 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 4.3 in |
| Depth | 5.1 in |
| Height | 1.3 in |
| Weight | 13.4 oz |
| Localization | North America |
| Expansion / Connectivity | |

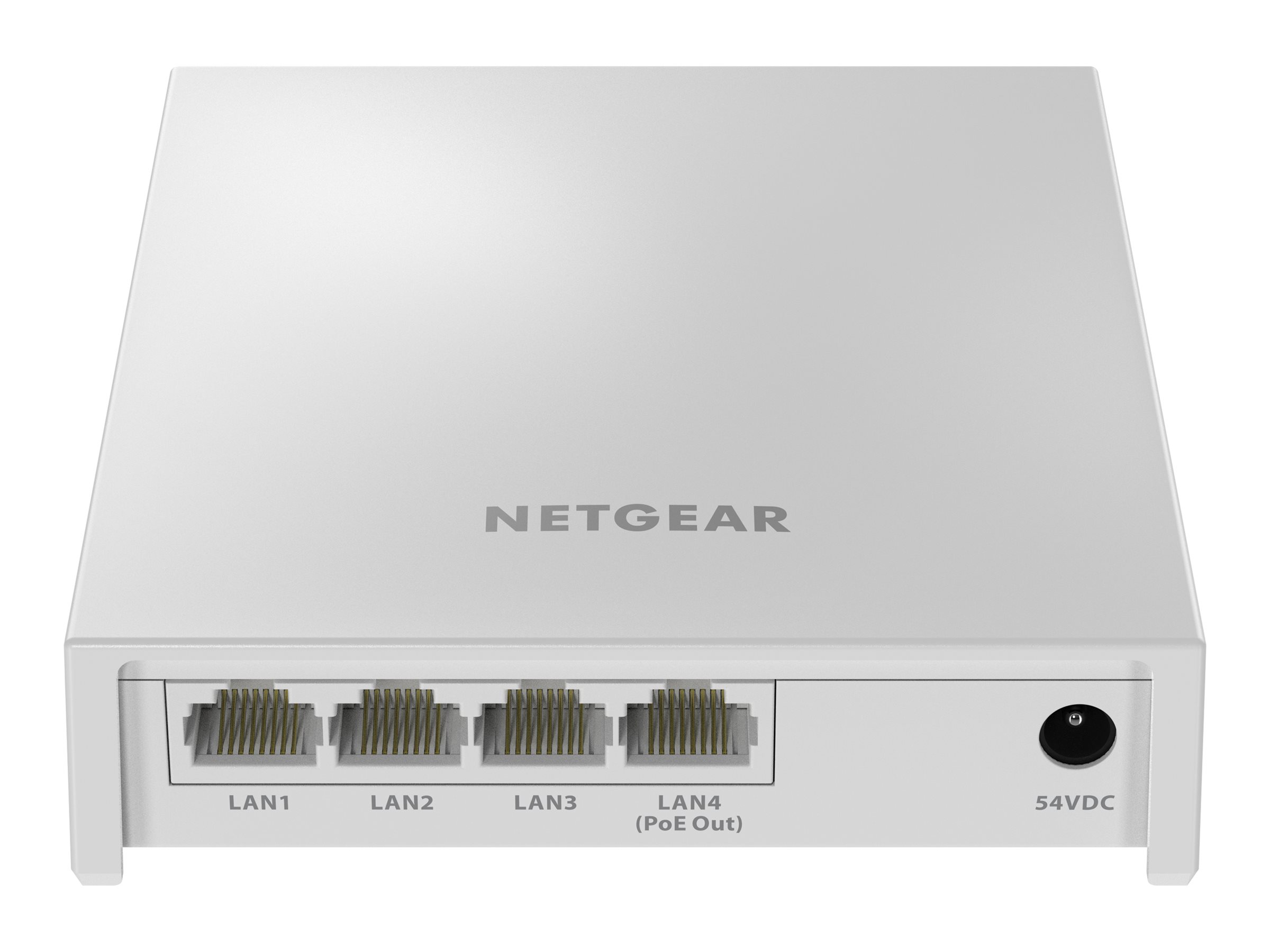

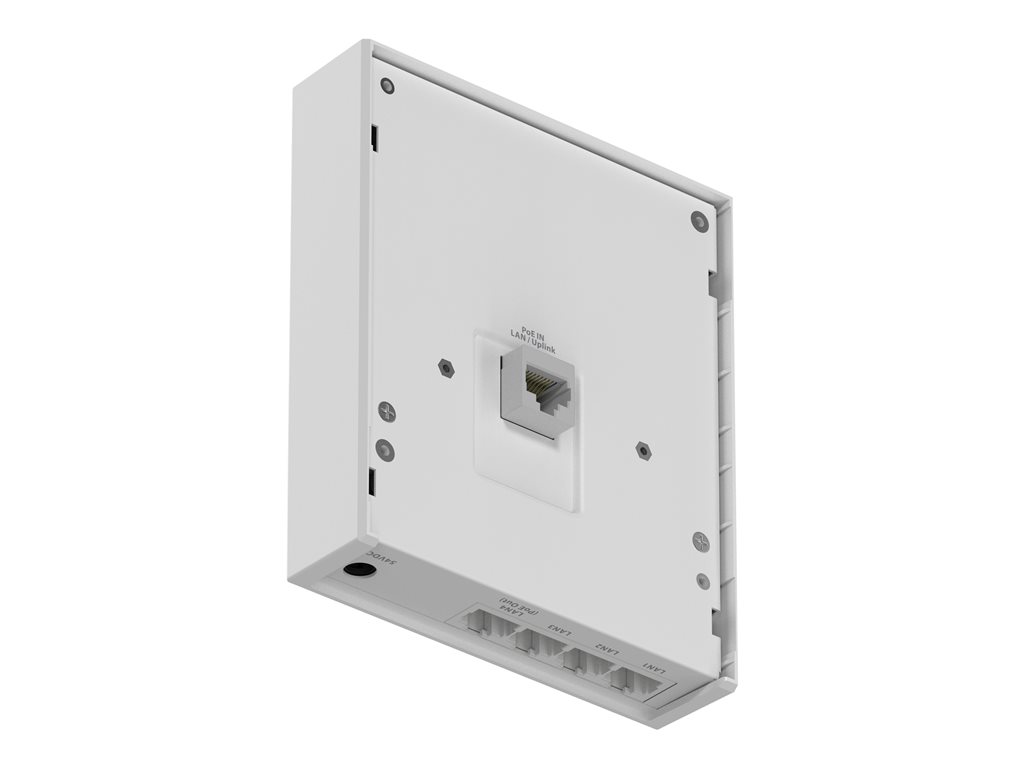

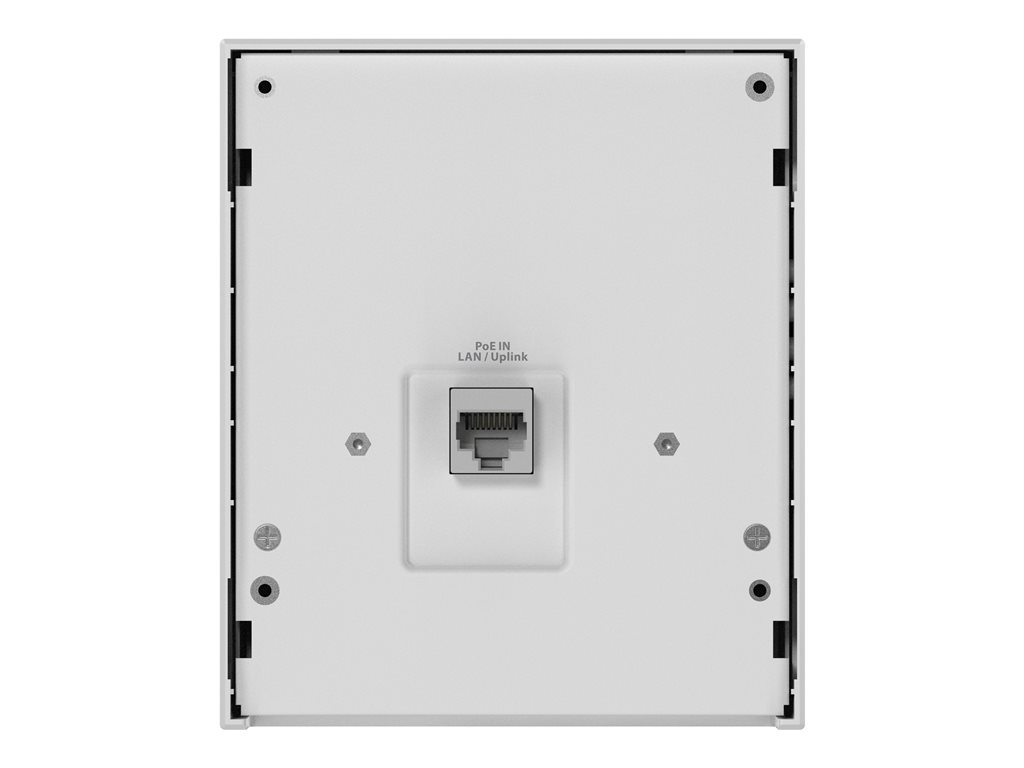

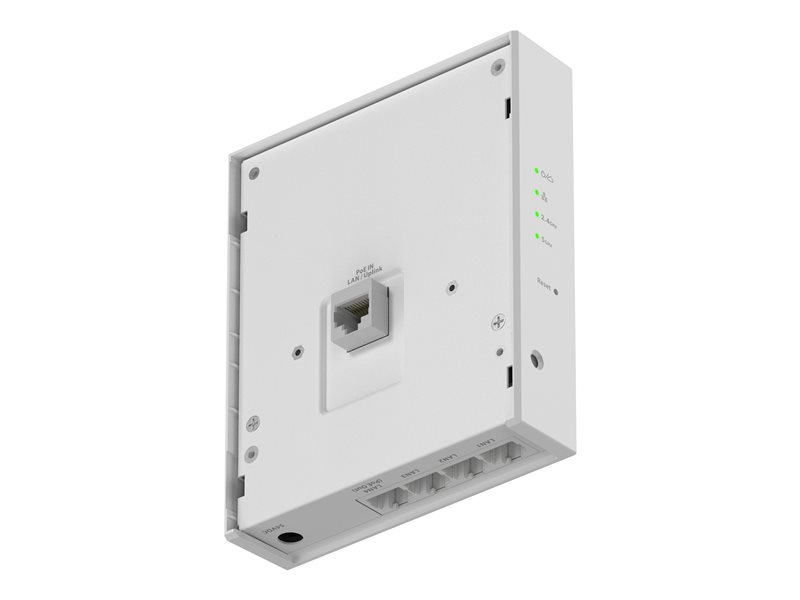

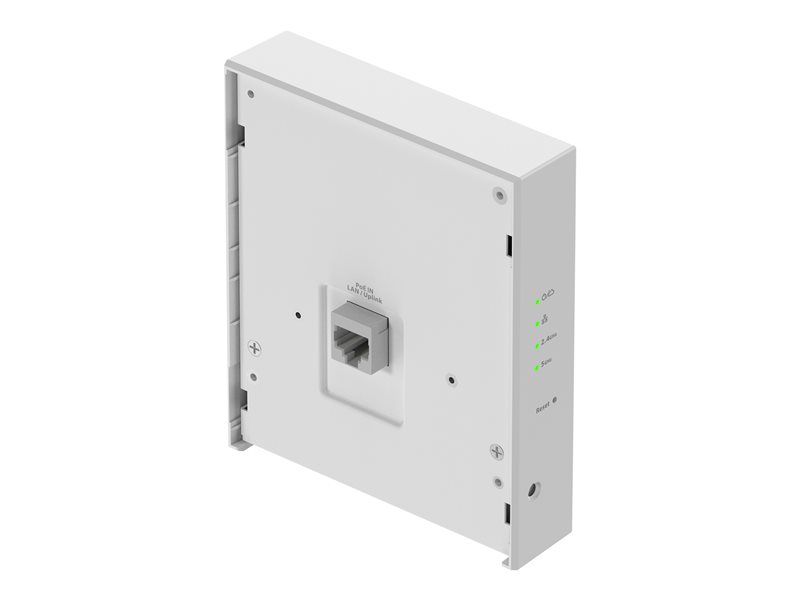

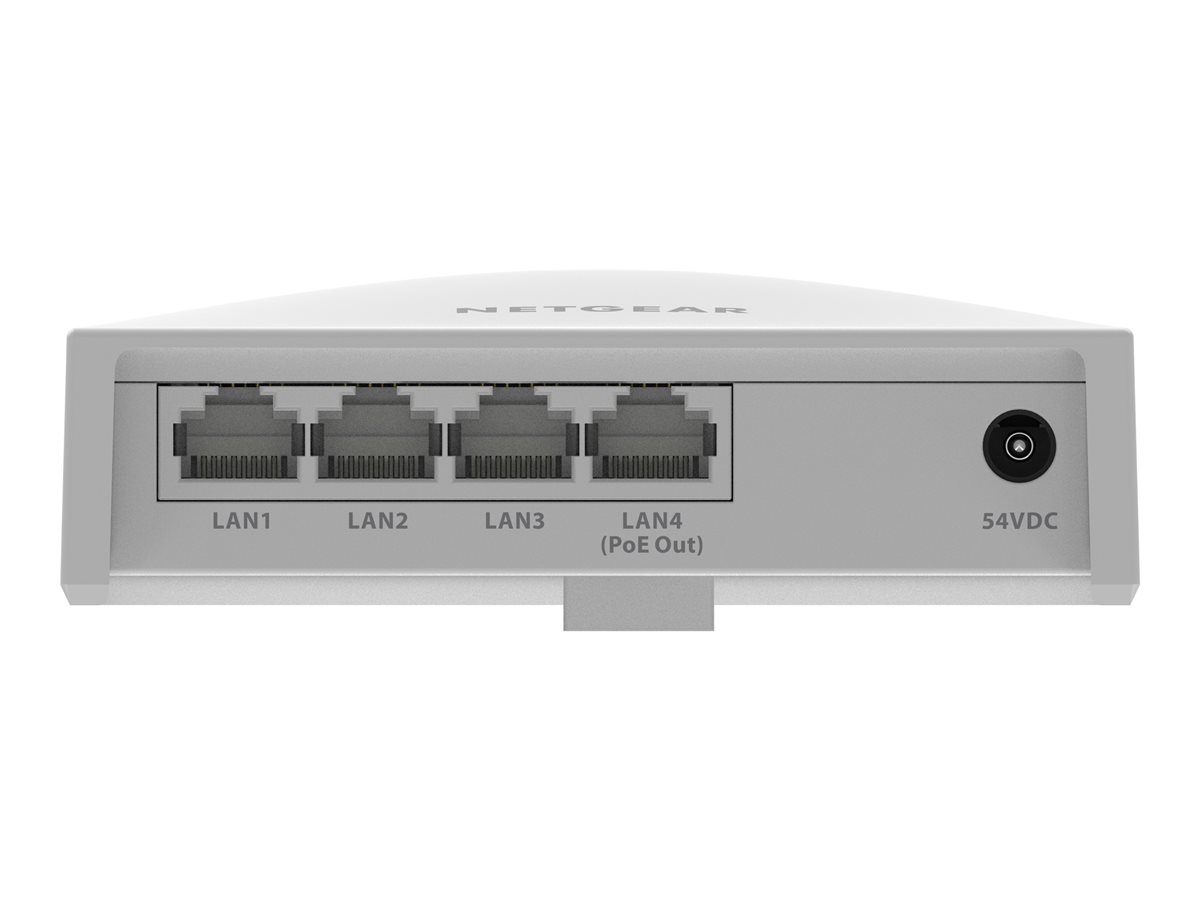

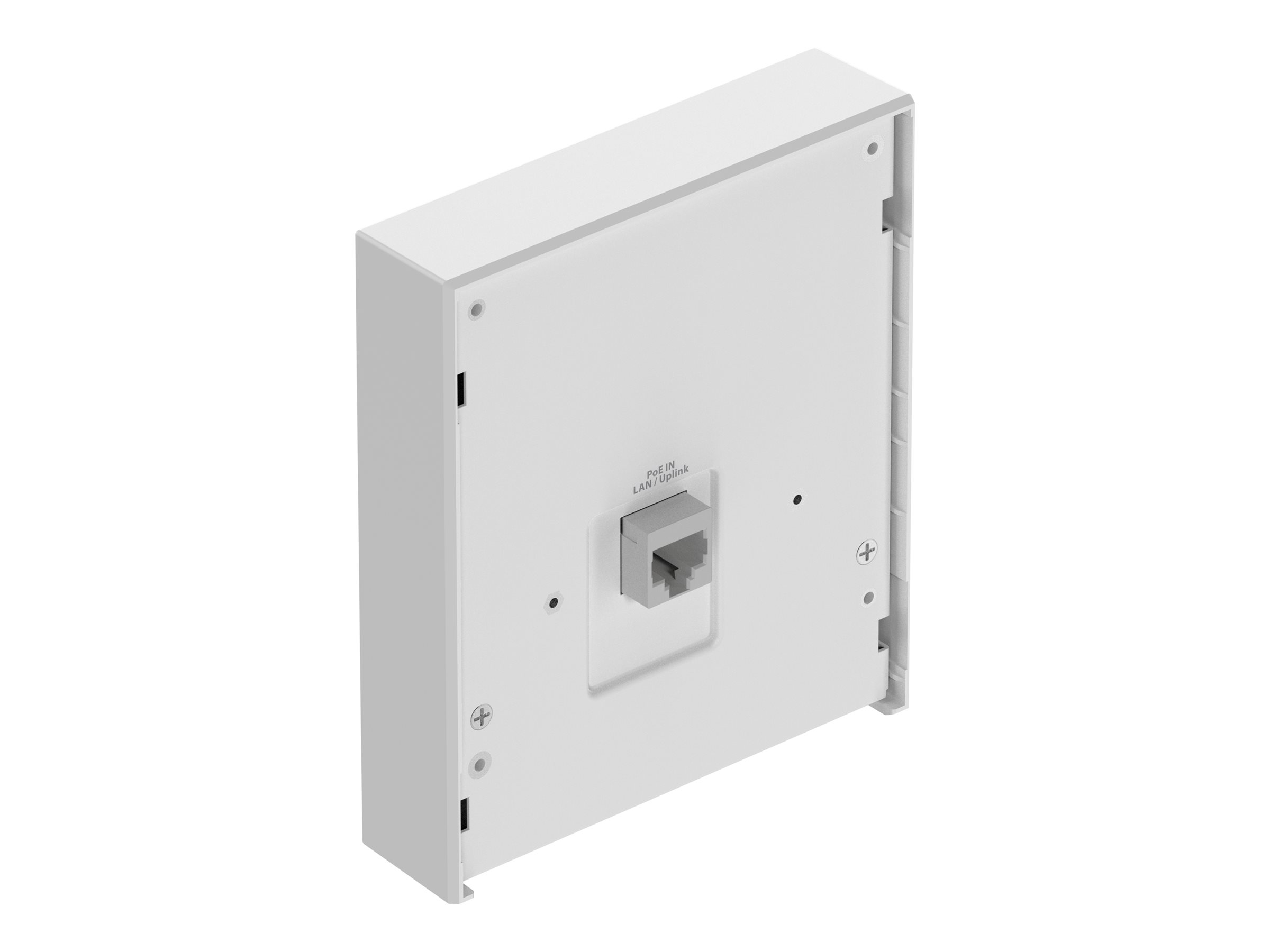

| Interfaces | 1 x 1000Base-T (uplink, PoE+ input) - RJ-45 ¦ 3 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (PoE output) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Wall mounting kit |
| Networking | |
| Form Factor | Wall mountable |
| Connectivity Technology | Wireless, wired |
| Line Coding Format | OFDM, OFDMA |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Spread Spectrum Method | OFDM, OFDMA |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Max Coverage Area | Up to 1,000 sq.ft |
| Performance | Maximum data rate (5 GHz): 1200 Mbps ¦ Maximum data rate (2.4 GHz): 600 Mbps ¦ Aggregate throughput: 1.8 Gbps |
| Capacity | Streams: 4 ¦ SSIDs total: 8 |
| Wi-Fi Rating | AX1800 |

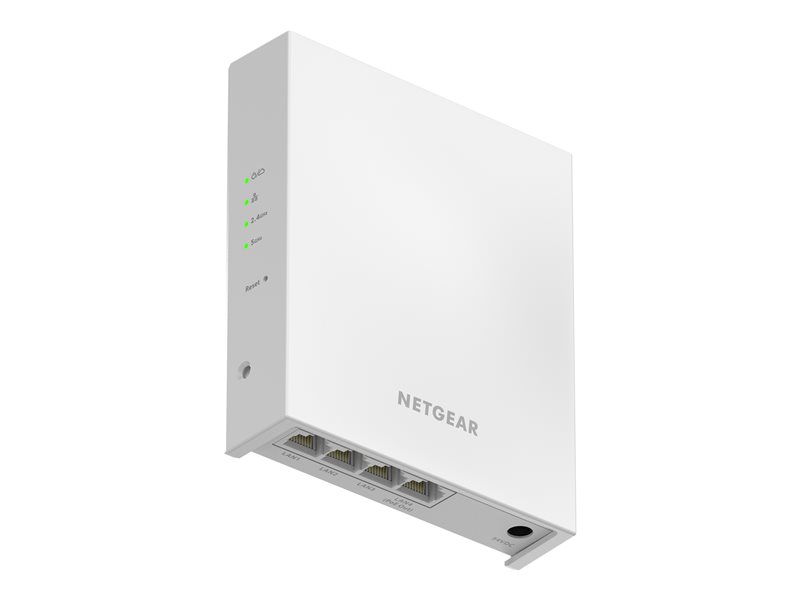

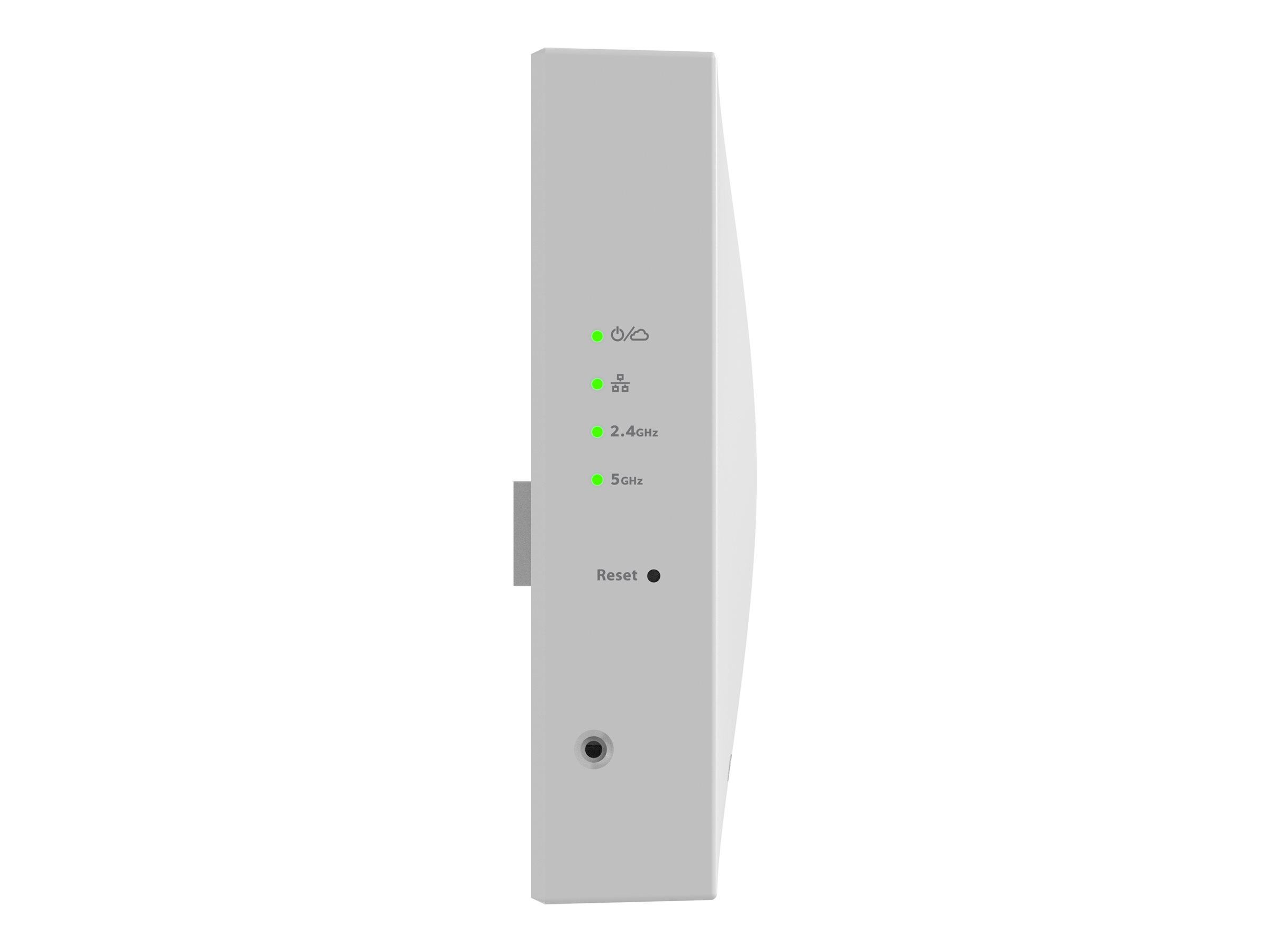

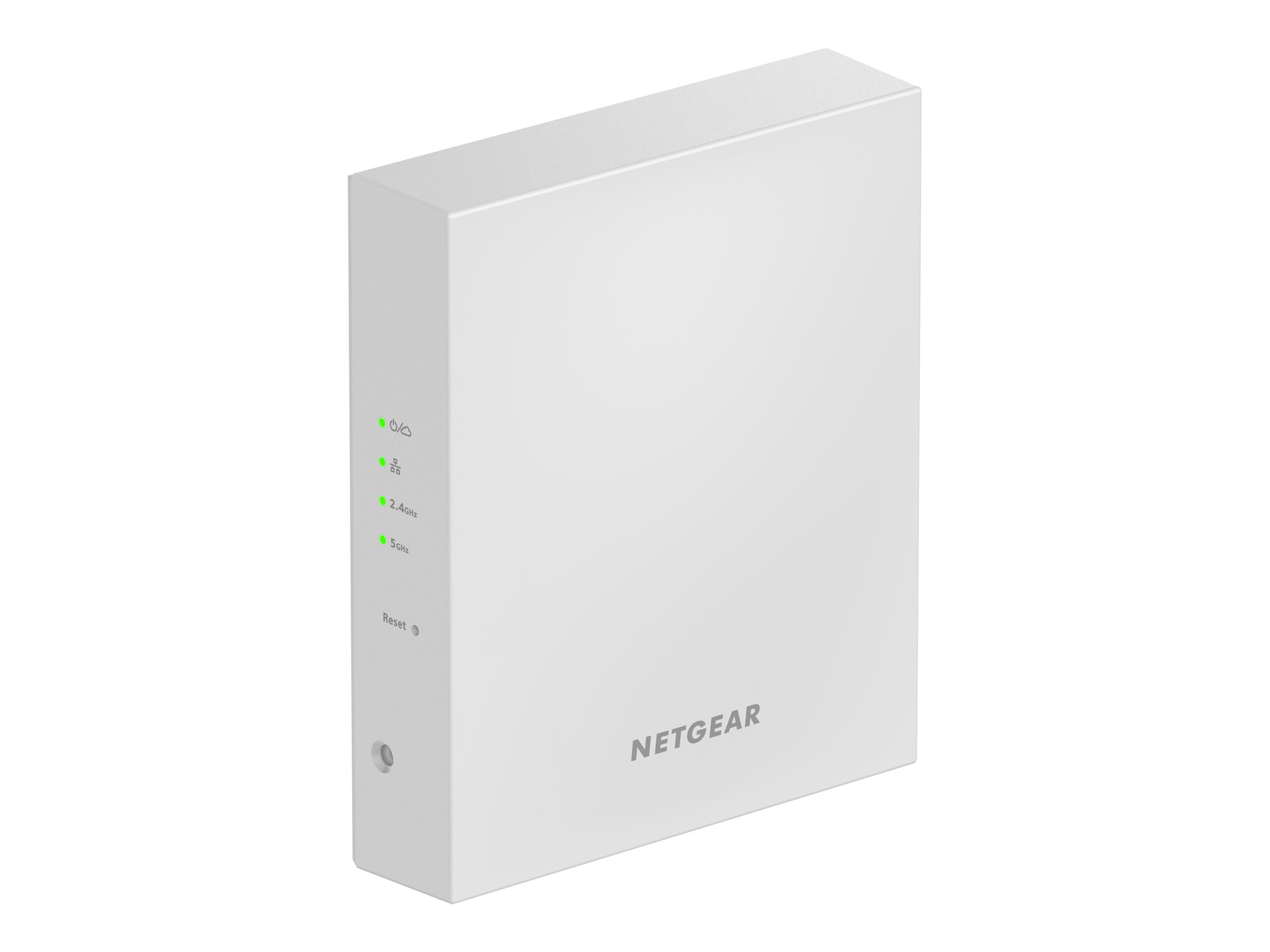

| Status Indicators | 5 GHz, 2.4 GHz, power, cloud, LAN |
| Features | Mesh networking, 2x2 MIMO technology, beamforming technology, BSS Coloring, reset button, bidirectional, Target Wait Time (TWT), NAT support, Wireless Distribution System (WDS) support, Neighbor AP detection, Block SSID Broadcast, Captive Portal, Guest Network, VLAN support, band steering, Link Layer Discovery Protocol, MAC address authentication, bridge mode, repeater mode, Transmit Power Control (TPC) |
| Encryption Algorithm | WPA, WPA2, WPA3, EAP-TLS, TTLS, PEAP, WPA2-Enterprise, WPA3-Enterprise, OWE |
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.3at, IEEE 802.3af, IEEE 802.11i, IEEE 802.1x, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter (not included) |
| Power Consumption Operational | 13.19 watt |
| Software / System Requirements | |
| Software Included | NETGEAR Insight (1 year subscription) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Antenna | |
| Antenna | Internal |
