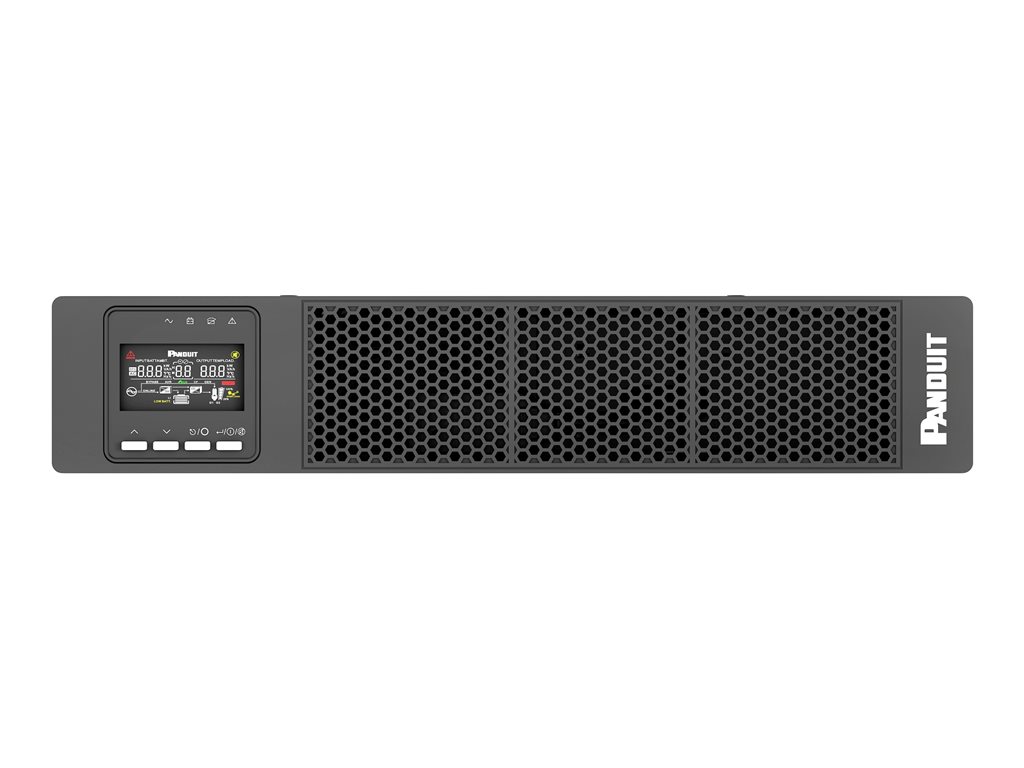

UPS (rack-mountable / external) - AC 110/120 V - 900 watt - 1000 VA - 1-phase - RS-232, Ethernet - 2U
| Main Specifications | |
|---|---|
| Product Description | Panduit SteadySine - UPS - 900 watt - 1000 VA |
| Device Type | UPS - rack-mountable / external |
| Rack Size | 2U |
| Input Wiring | 1-phase |
| Input Voltage | AC 110/120 V |
| Output Voltage | AC 110/120 V |
| Power Capacity | 900 watt / 1000 VA |
| Input Connectors | 1 x power NEMA 5-15P |
| Battery | Lithium ion |
| Networking | RS-232, Ethernet |
| Dimensions (WxDxH) | 17.3 in x 12.8 in x 3.4 in |
| General | |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) ¦ 1 x management (Ethernet) - RJ-45 |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Features | Vertical orientation, horizontal orientation, double conversion, LCD display, outlet bank switching, hot-swappable batteries, alarm silencer, audible alarm |
| Networking | |
| Remote Management Interface | RS-232, Ethernet |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Battery | |
| Technology | Lithium ion |
| Transfer Time | 0 ms |
| Power Device | |
| Input Voltage | AC 110/120 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Output Voltage | AC 110/120 V 50/60 Hz |
| Power Capacity | 900 watt / 1000 VA |
| Output Waveform | Sinewave |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 12.8 in |
| Height | 3.4 in |
