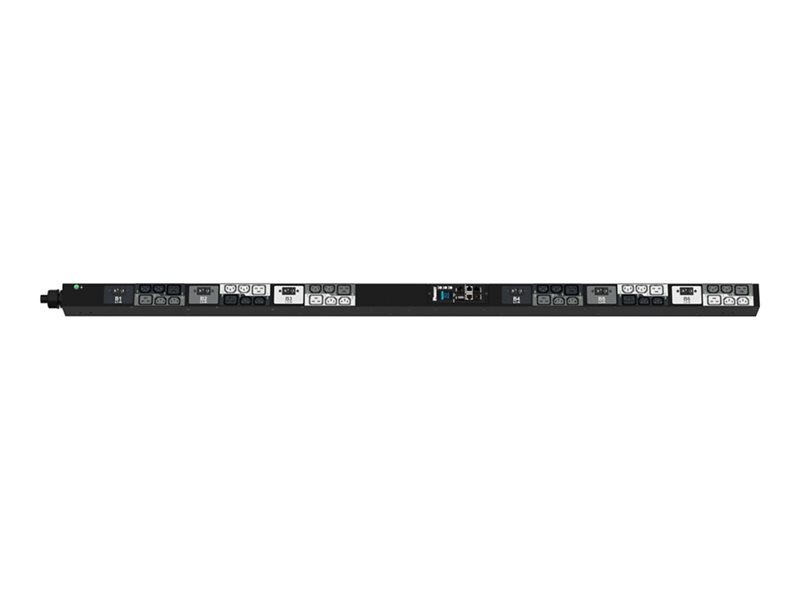

Power distribution unit (rack-mountable) - 240 V - 3-phase - RJ-45 - input: IEC 60309 3P+N+E - output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19) - 10 ft cord - black
| Main Specifications | |
|---|---|
| Product Description | Panduit G6 - power distribution unit |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Input Wiring | 3-phase |
| Input Voltage | 240 V |
| Output Voltage | 240 V |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Output connectors | 24 x power IEC 60320 C13 ¦ 19 x power IEC 60320 C19 |
| Networking | RJ-45 |
| Color | Black |
| Dimensions (WxDxH) | 66.1 in x 3 in x 2.3 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 10 ft |
| Rack Mounting Kit | Included |
| Features | Metal housing |
| Compliant Standards | UL 62368-1, IEC 62368-1, FCC-15 (Class A), NOM, UL, UKCA, RoHS, REACH, China RoHS |
| Networking | |
| Remote Management Interface | RJ-45 |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Power Device | |
| Input Voltage | 240 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Power Output Connectors Details | 24 x power IEC 60320 C13 ¦ 19 x power IEC 60320 C19 |
| Output Voltage | 240 V |
| Max Electric Current | 32 A |
| Dimensions & Weight | |
| Width | 66.1 in |
| Depth | 3 in |
| Height | 2.3 in |
