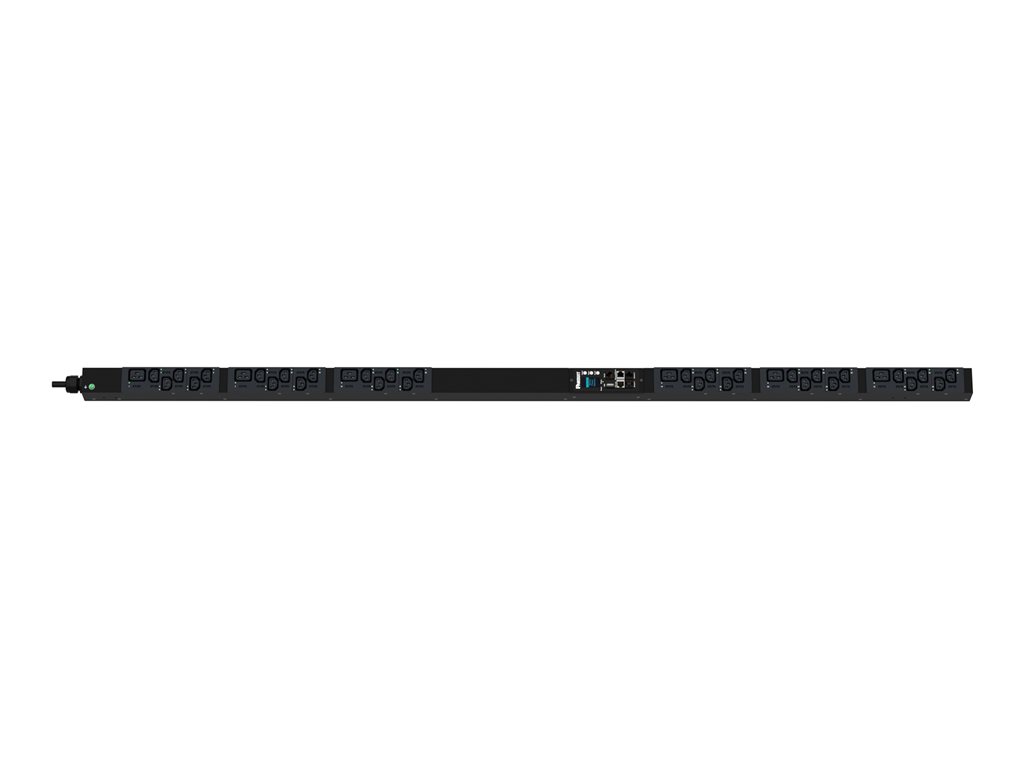

Power distribution unit (rack-mountable) - switched and monitored - AC 230 V - 11000 VA - 3-phase - Ethernet 10/100/1000 - input: IEC 60309 3P+N+E 6Hr - output connectors: 36 (30 x IEC 60320 C13, 6 x IEC 60320 C19) - 0U - 10 ft cord - European Economic Area - black
| Main Specifications | |
|---|---|
| Product Description | Panduit Intelligent Series G6 - power distribution unit - switched and monitored - 11000 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Localization | European Economic Area |
| Input Wiring | 3-phase |
| Input Voltage | AC 230 V |
| Output Voltage | AC 415 V |
| Power Capacity | 11000 VA |
| Input Connectors | 1 x power IEC 60309 3P+N+E 6Hr |
| Output connectors | 30 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Networking | Ethernet 10/100/1000 |
| Color | Black |
| Dimensions (WxDxH) | 2 in x 2.1 in x 68.9 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black |
| Localization | European Economic Area |
| Expansion / Connectivity | |
| Interfaces | 2 x sensor - RJ-45 ¦ 1 x LAN - RJ-45 ¦ 2 x daisy chain output - RJ-45 ¦ 1 x USB - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 10 ft |
| Rack Mounting Kit | Included |
| Features | Vertical orientation |
| Compliant Standards | UCKA, RoHS, REACH, China RoHS, RETIE |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 140 °F |
| Power Device | |
| Input Voltage | AC 230 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+E 6Hr |
| Power Output Connectors Details | 30 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Output Voltage | AC 415 V |
| Max Electric Current | 16 A |
| Power Capacity | 11000 VA |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 2.1 in |
| Height | 68.9 in |
