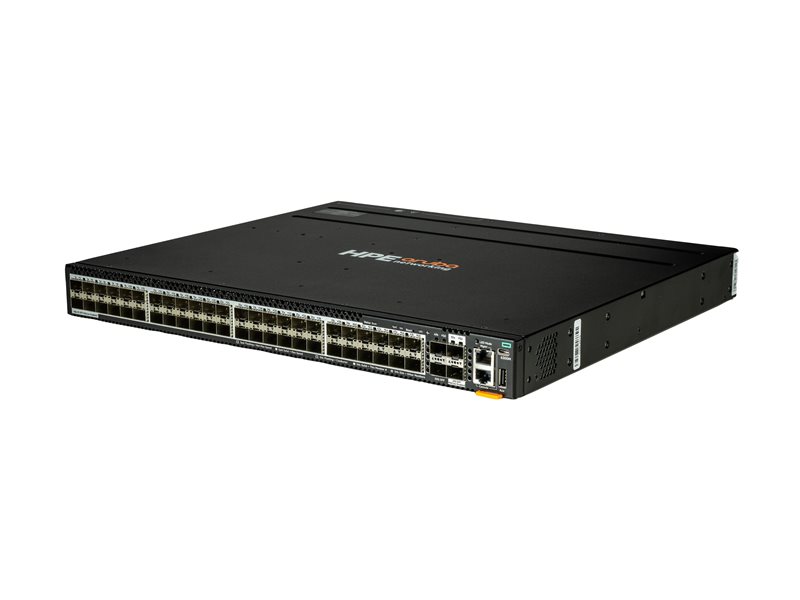

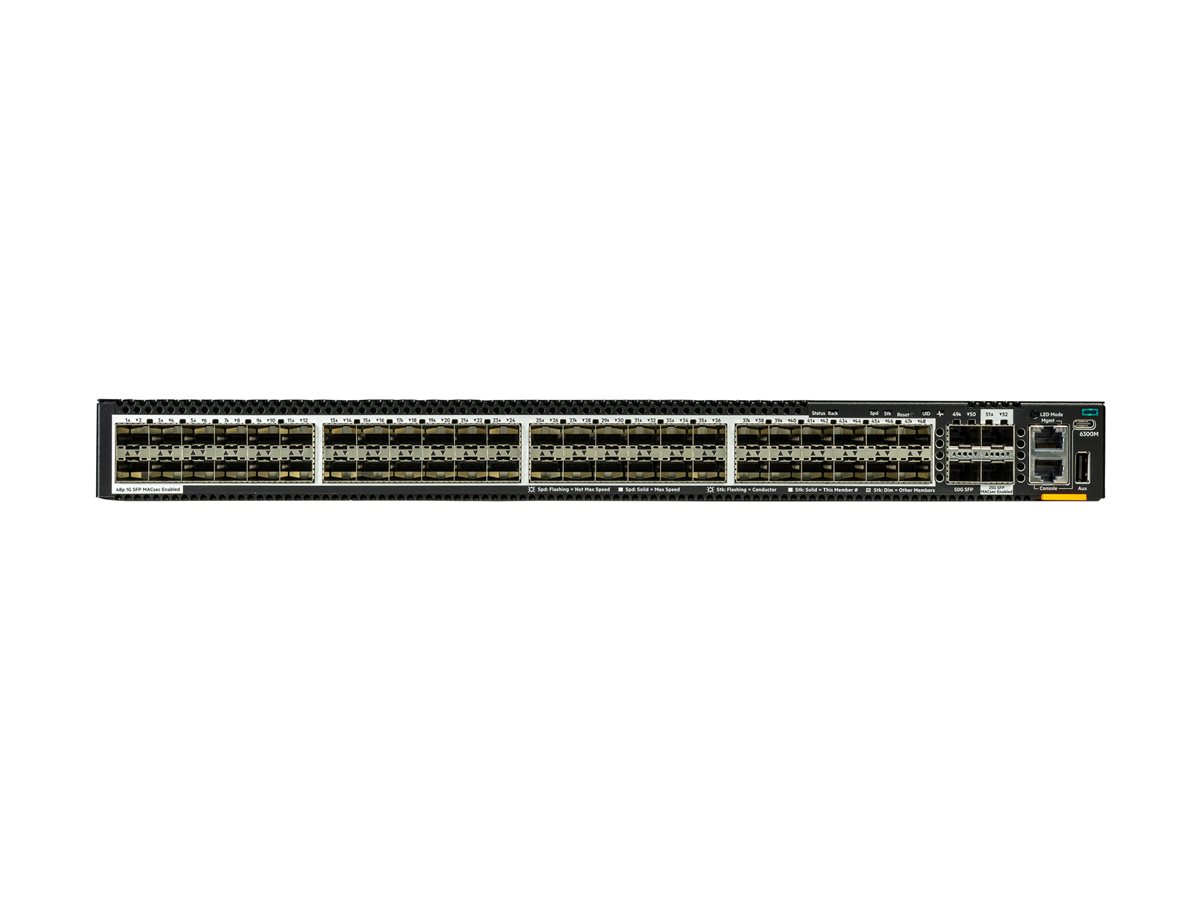

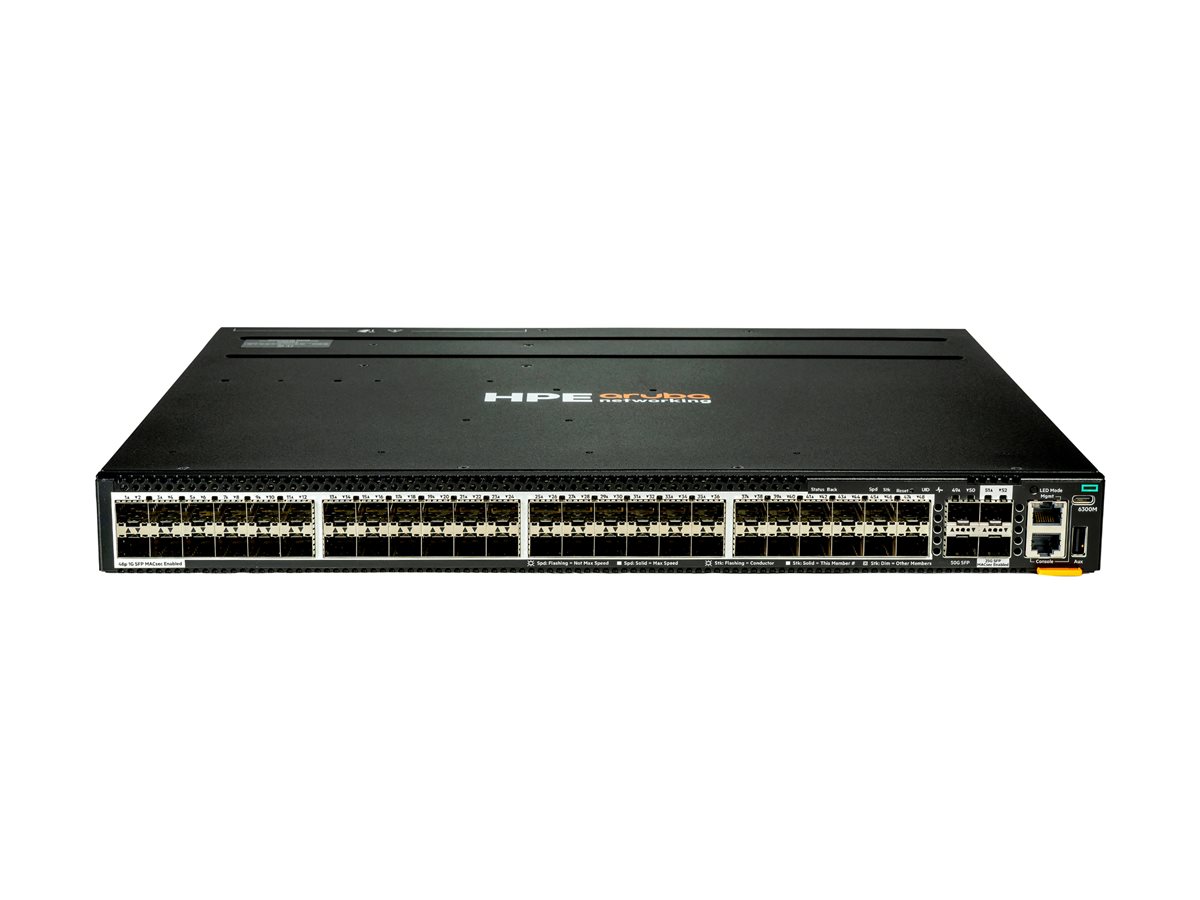

Switch - L3 - managed - 48 x Gigabit SFP + 2 x 10 Gigabit / 25 Gigabit SFP + 2 x 10 Gigabit / 25 Gigabit / 50 Gigabit SFP (uplink / stacking) - rack-mountable - BTO
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba Networking CX 6300M 48p SFP 1G 2p SFP56 50G 2p SFP28 25G MACsec Switch - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x Gigabit SFP + 2 x 10 Gigabit / 25 Gigabit SFP + 2 x 10 Gigabit / 25 Gigabit / 50 Gigabit SFP (uplink / stacking) |
| Performance | Switching capacity: 396 Gbps |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | BGP, VXLAN, VRF, OSPF, OSPFv2, IGMP, PIM-SM, BGP-4, ECMP, MP-BGP |
| Remote Management Protocol | SNMP, SNMP 2c, SNMP 3, RMON, CLI |
| Features | VSF, EVPN, UTM, ERPS, QoS, PTP, Rapid PVST+, ToR |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1v, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1t, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.4 in x 15.2 in x 1.7 in |
| Pricing Type | BTO |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x Gigabit SFP + 2 x 10 Gigabit / 25 Gigabit SFP + 2 x 10 Gigabit / 25 Gigabit / 50 Gigabit SFP (uplink / stacking) |
| Performance | Switching capacity: 396 Gbps |
| Jumbo Frame Support | 9198 bytes |
| Max Units In A Stack | 10 |
| Routing Protocol | BGP, VXLAN, VRF, OSPF, OSPFv2, IGMP, PIM-SM, BGP-4, ECMP, MP-BGP |
| Remote Management Protocol | SNMP, SNMP 2c, SNMP 3, RMON, CLI |
| Authentication Method | RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Features | VSF, EVPN, UTM, ERPS, QoS, PTP, Rapid PVST+, ToR |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1v, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1t, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Processor | 1 x ARM Cortex-A72: 1.8 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 48 x Gigabit LAN SFP MACsec enabled ¦ 2 x 10/25Gbit LAN SFP MACsec enabled ¦ 2 x 10/25/50Gbit LAN SFP uplink/stacking ¦ 1 x USB-C console ¦ 1 x management RJ-45 out-of-band network management ¦ 1 x console RJ-45 ¦ 1 x USB Type A AUX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | 2 fan trays |
| Pricing Type | BTO |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | N+1 (with optional power supply), N+N (with optional power supply) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 15.2 in |
| Height | 1.7 in |
