NAS server - 28 bays - 288 TB - rack-mountable - SATA 6Gb/s / SAS 12Gb/s - HDD 12 TB x 24 - RAID 0, 1, 5, 6, 10, 50, 60 - 25 Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 4U - for Vess R3600xiD
| Main Specifications | |
|---|---|

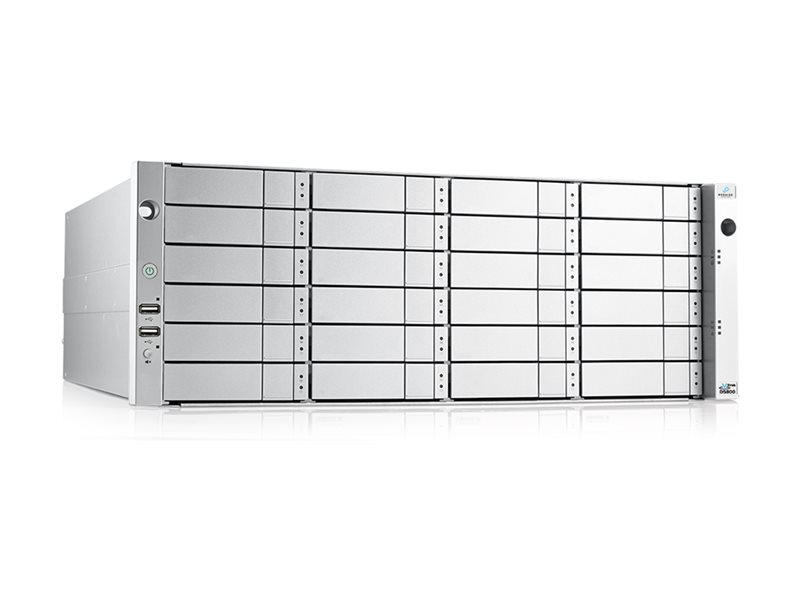

| Product Description | Promise VTrak 5800yxD - NAS server - 288 TB |
| Device Type | NAS server |
| Host Connectivity | 25 Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 4U |
| Total Storage Capacity | 288 TB |
| Installed Devices / Modules Qty | 24 (installed) / 28 (max) |
| Dimensions (WxDxH) | 17.6 in x 20 in x 6.9 in |
| Weight | 96.56 lbs () |
| Storage Controller | 2 x RAID SATA 6Gb/s / SAS 12Gb/s RAID 0, 1, 5, 6, 10, 50, 60 |
| Hard Drive | 24 x 12 TB |
| Networking | 10GbE, 25GbE |
| Power | AC 100-240 V (50/60 Hz) |
| System Requirements | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple macOS Sierra 10.12.6, Apple macOS Ventura 13.1, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 6.7, Red Hat Enterprise Linux 6.8, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 7.2, Red Hat Enterprise Linux 7.4, SuSE Linux Enterprise Server 11 SP4, SuSE Linux Enterprise Server 12 SP1, Citrix Hypervisor 7.0 LTSR, Citrix Hypervisor 7.1 LTSR, Citrix Hypervisor 8.0, Citrix Hypervisor 8.1, Citrix Hypervisor 8.2 LTSR, VMware ESXi 6.0, VMware ESXi 6.5, VMware ESXi 6.7, VMware ESXi 7.0, VMware ESXi 8.0 |
| Manufacturer Warranty | 3-year warranty |
| Designed For | Vess R3600xiD |
| General | |
| Device Type | NAS server |
| Host Connectivity | 25 Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 4U |
| Total Storage Capacity | 288 TB |
| Installed Devices / Modules Qty | 24 (installed) / 28 (max) |
| Width | 17.6 in |
| Depth | 20 in |
| Height | 6.9 in |
| Weight | 96.56 lbs () |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 0 (free) x hot-swap - 3.5" LFF ¦ 4 (total) / 4 (free) x hot-swap - 2.5" SFF |
| Interfaces | 4 x Ethernet 10Gb - SFP+ ¦ 1 x serial (management) - RJ-11 ¦ 2 x Ethernet 1000 (management) - RJ-45 ¦ 4 x Ethernet 25Gb ¦ USB (2 front) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Alarm with mute button, JBOD support, drive power management (MAID), Intelligent Bad Sector Remapping, NVRAM error logging, Predictive Data Migration (PDM), SMART error handling and write hole table |
| Compliant Standards | RoHS2, PC Green Label, WEEE |
| Networking | |
| Data Link Protocol | 10GbE, 25GbE |
| Network / Transport Protocol | iSCSI |
| Remote Management Protocol | SNMP, CLI, SSH |
| Network Services Compatibility | Microsoft CIFS, Network File System (NFS), Microsoft Active Directory (AD) |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| 80 PLUS Certification | 80 PLUS |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple macOS Sierra 10.12.6, Apple macOS Ventura 13.1, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 6.7, Red Hat Enterprise Linux 6.8, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 7.2, Red Hat Enterprise Linux 7.4, SuSE Linux Enterprise Server 11 SP4, SuSE Linux Enterprise Server 12 SP1, Citrix Hypervisor 7.0 LTSR, Citrix Hypervisor 7.1 LTSR, Citrix Hypervisor 8.0, Citrix Hypervisor 8.1, Citrix Hypervisor 8.2 LTSR, VMware ESXi 6.0, VMware ESXi 6.5, VMware ESXi 6.7, VMware ESXi 7.0, VMware ESXi 8.0 |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% |
| Sound Emission | 60 dB |
| Storage Controller | |
| Type | 2 x RAID |
| Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Hard Drive | |
| Type | HDD - hot-swap - 3.5" |
| Capacity | 24 x 12 TB |
| Compatibility Information | |
| Designed For | Promise Vess R3600xiD |
