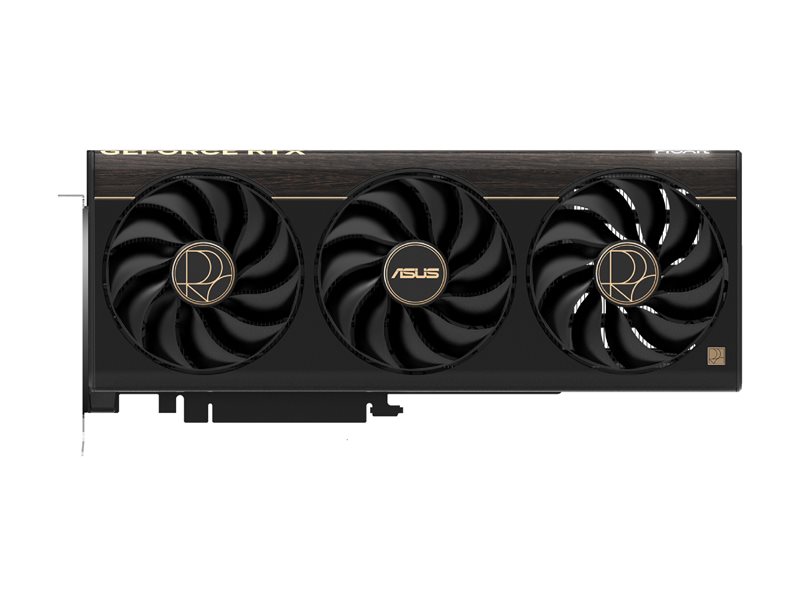

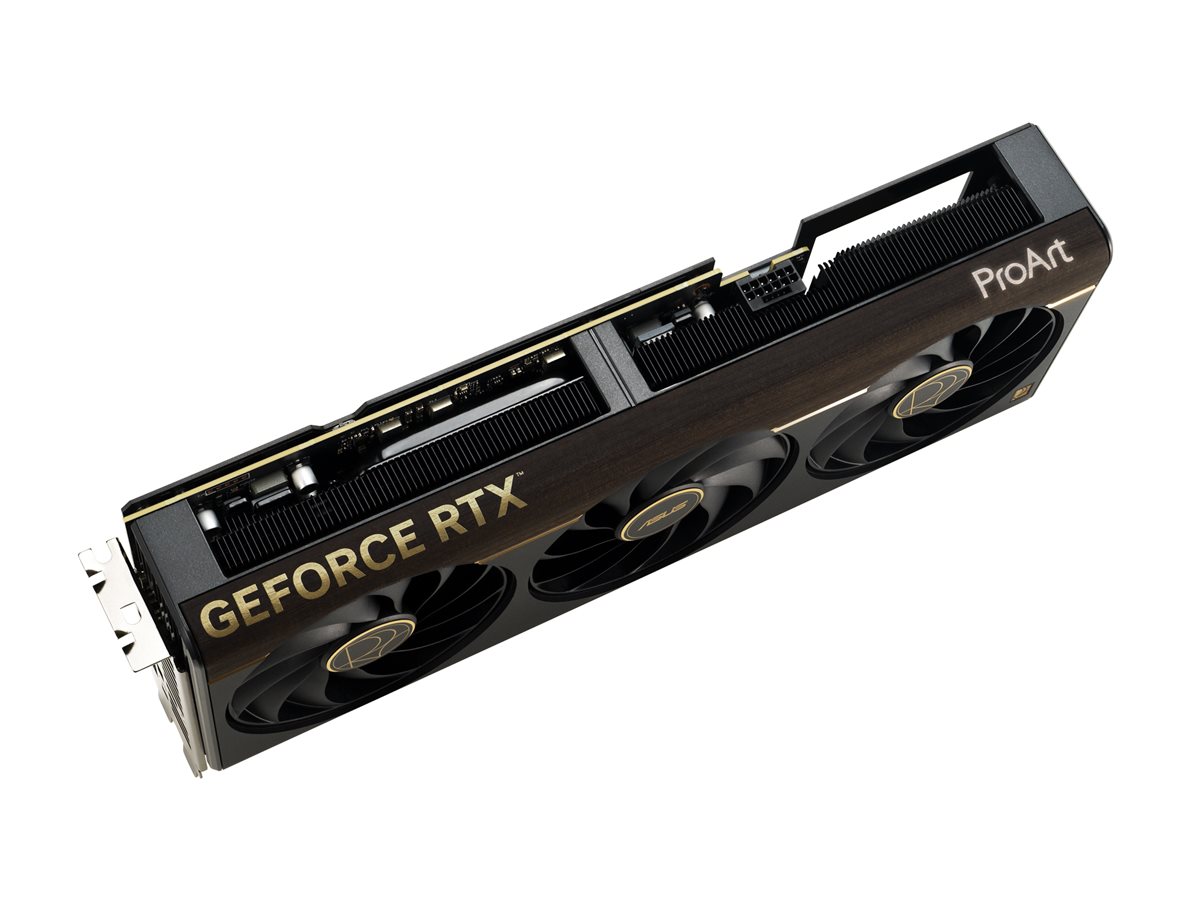

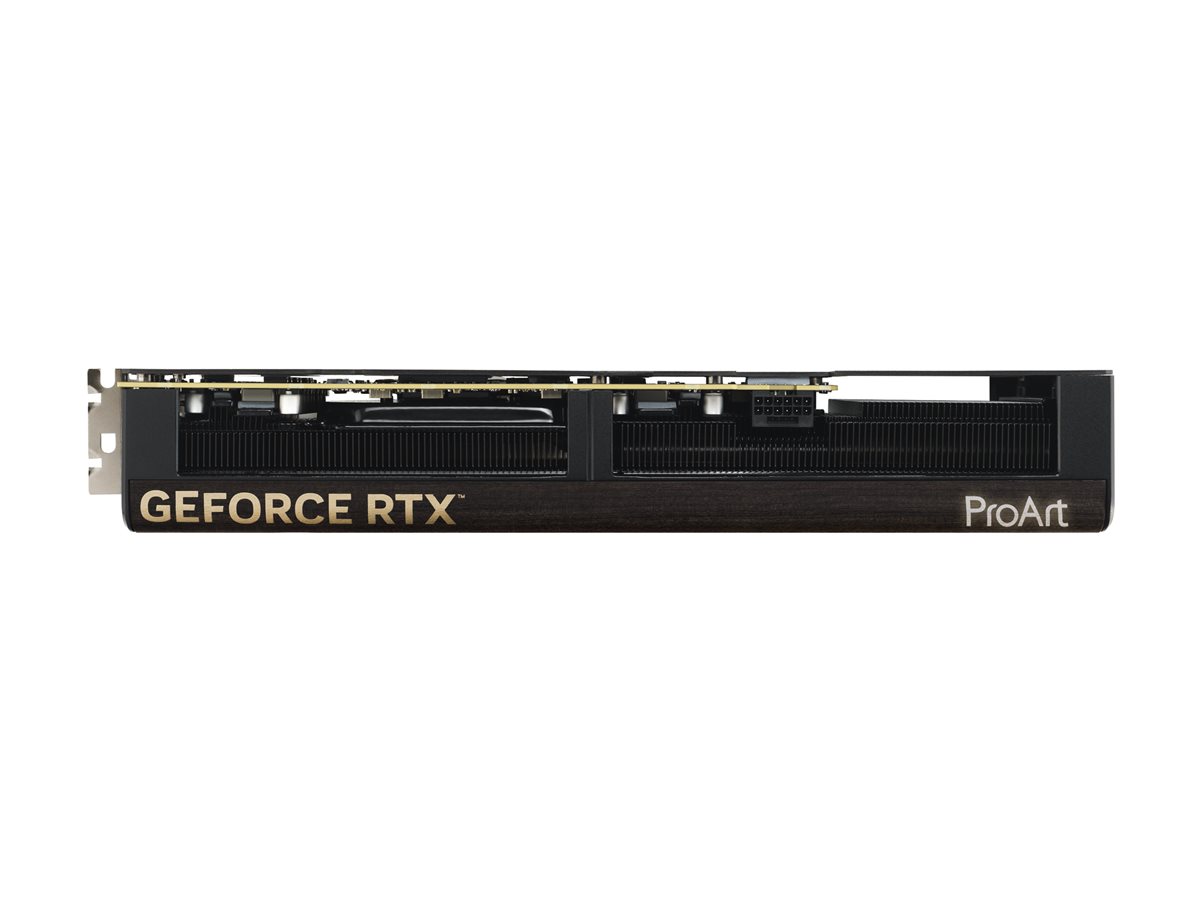

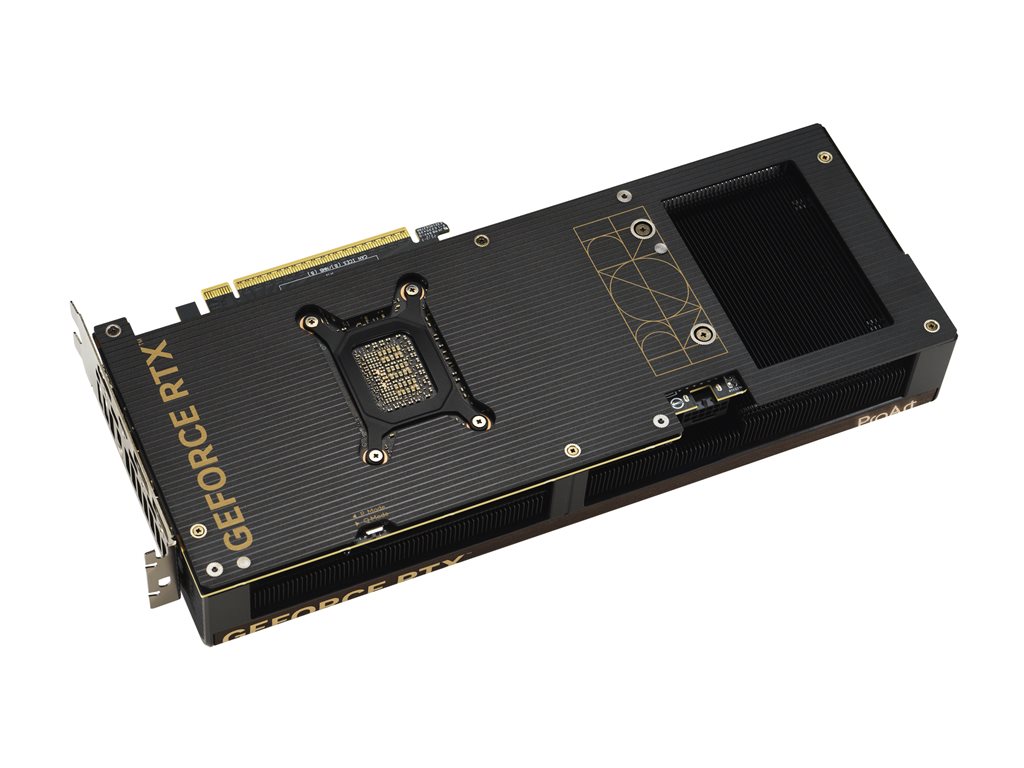

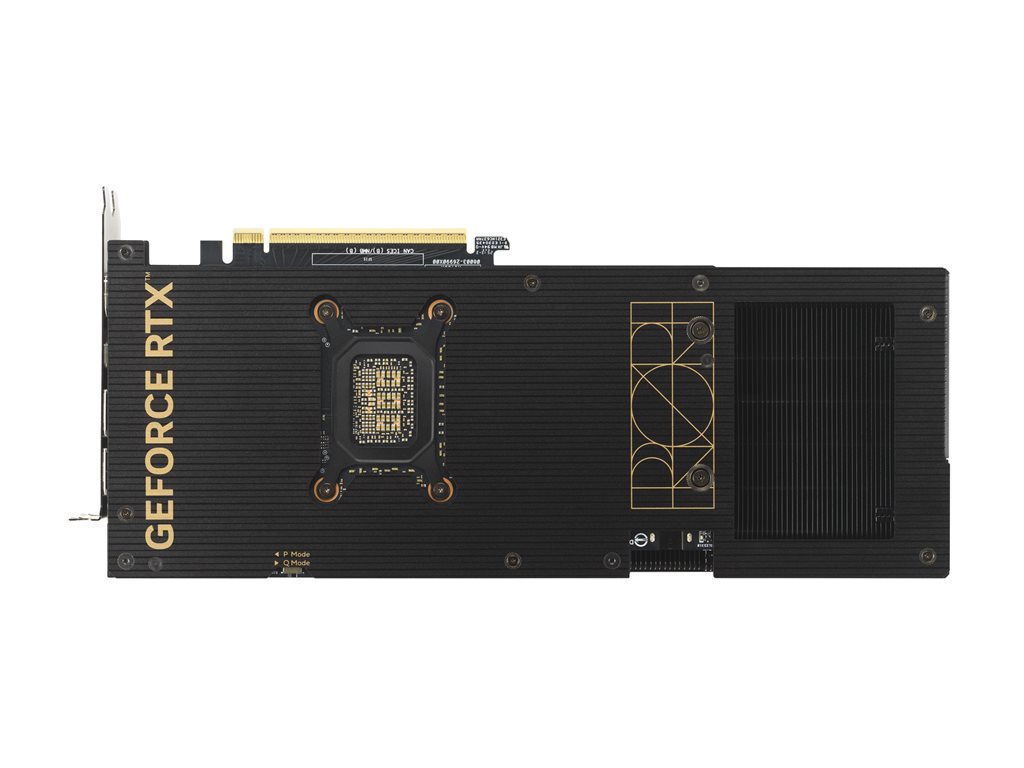

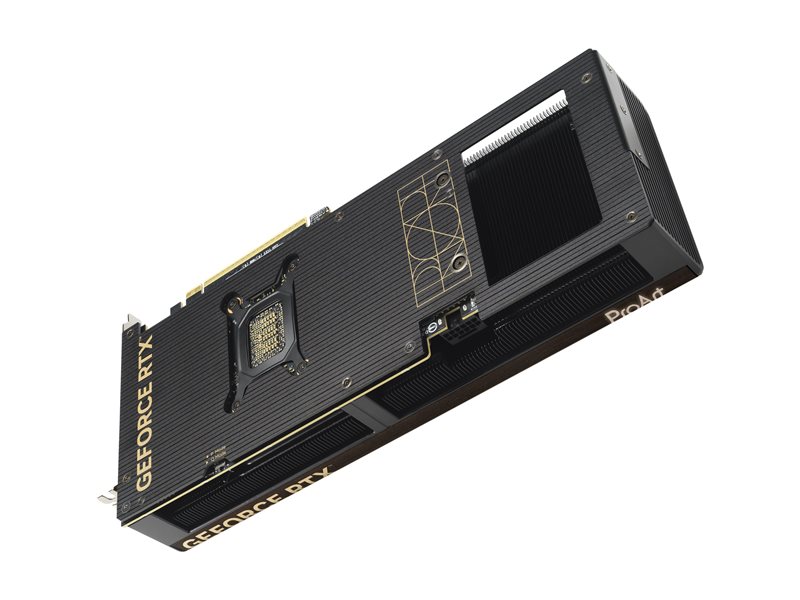

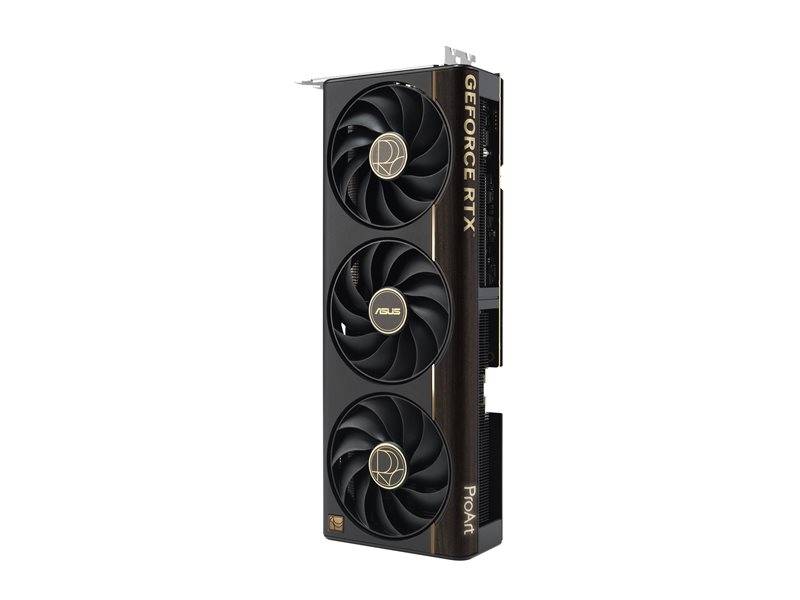

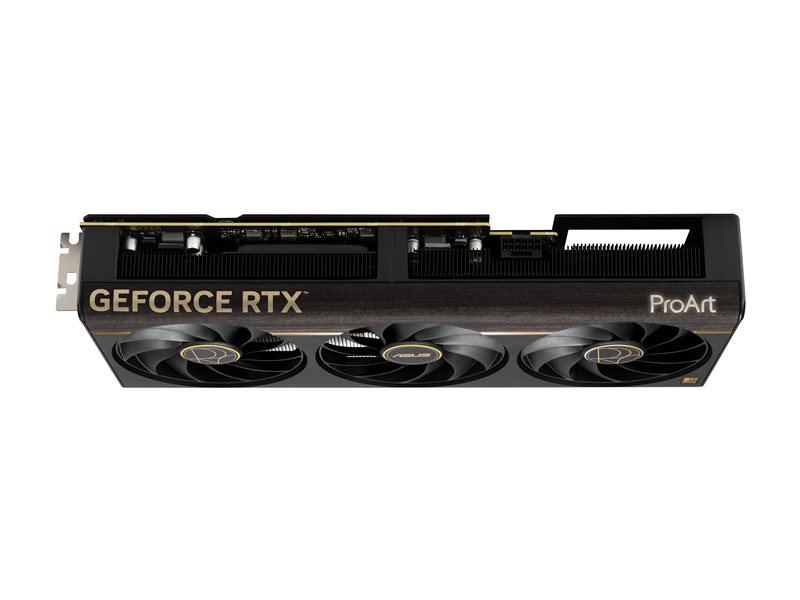

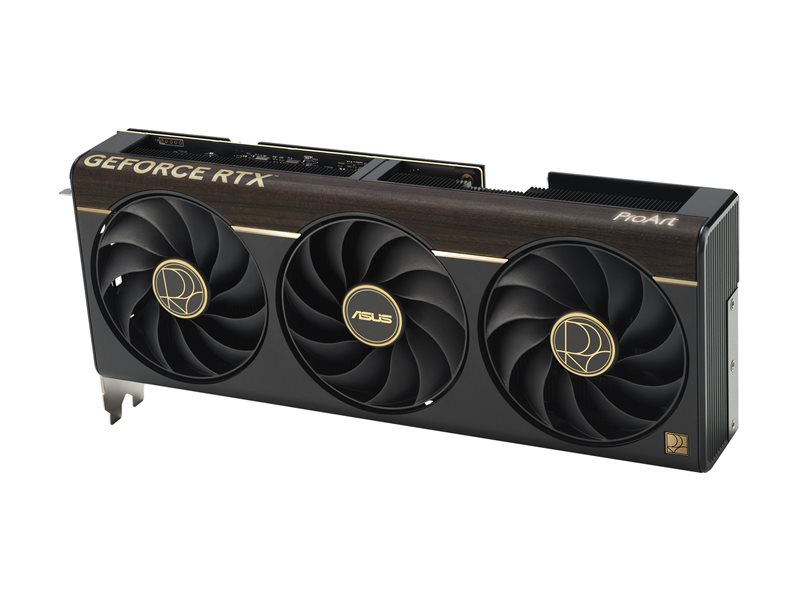

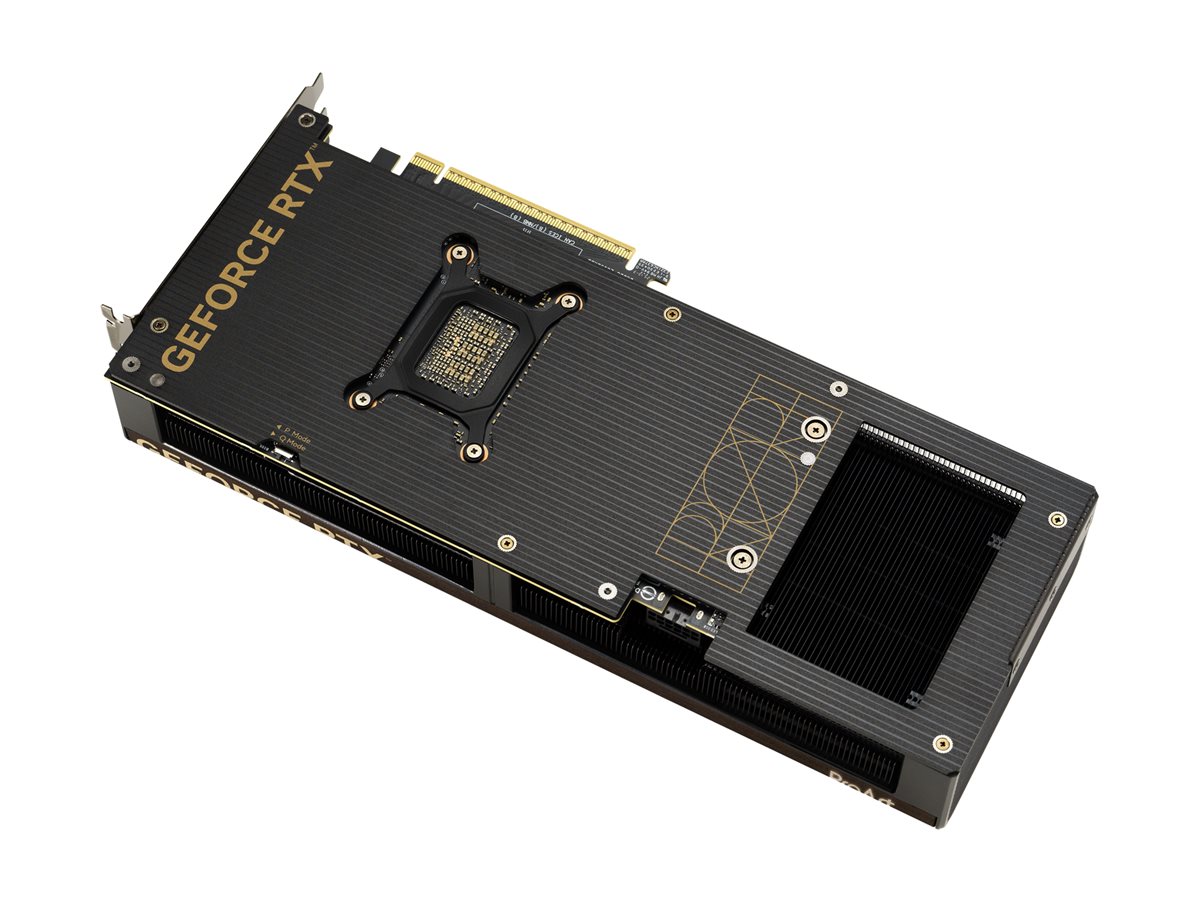

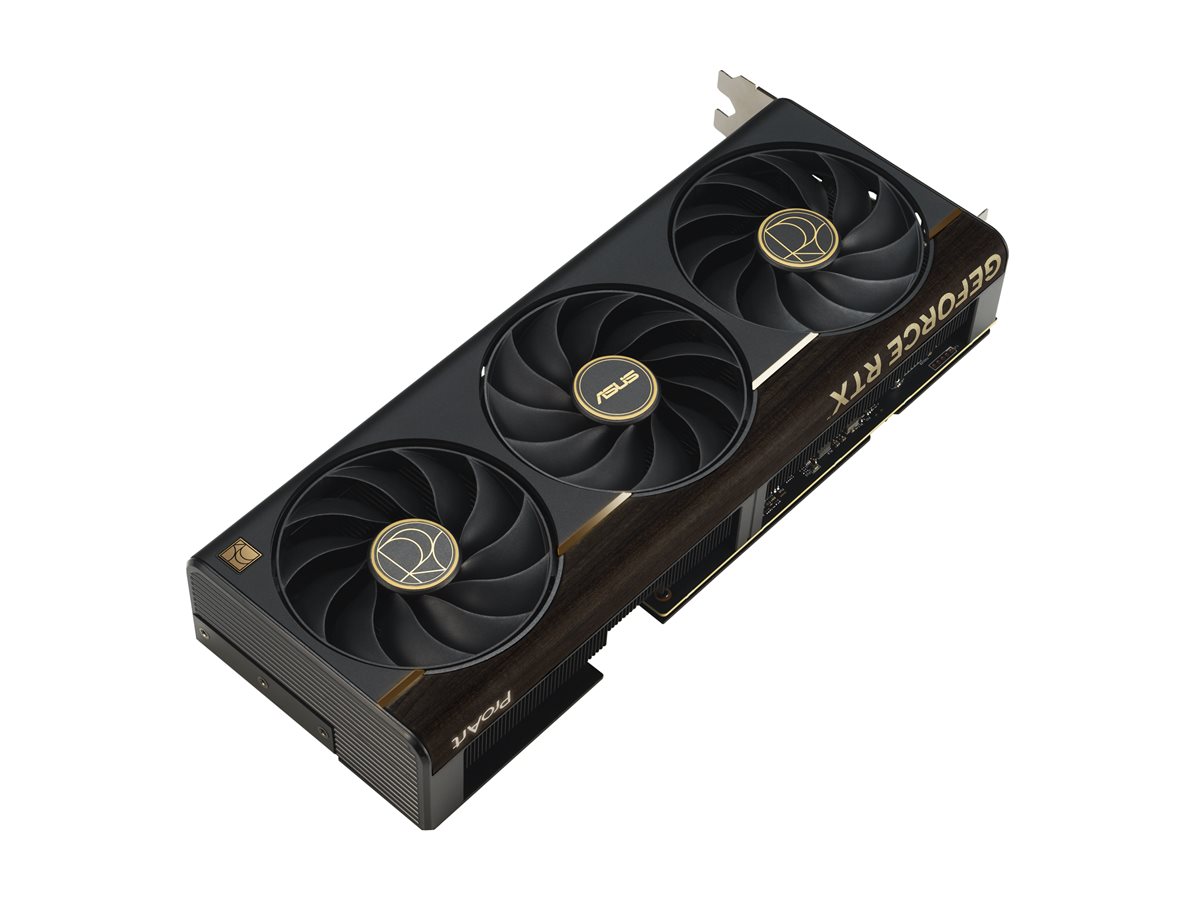

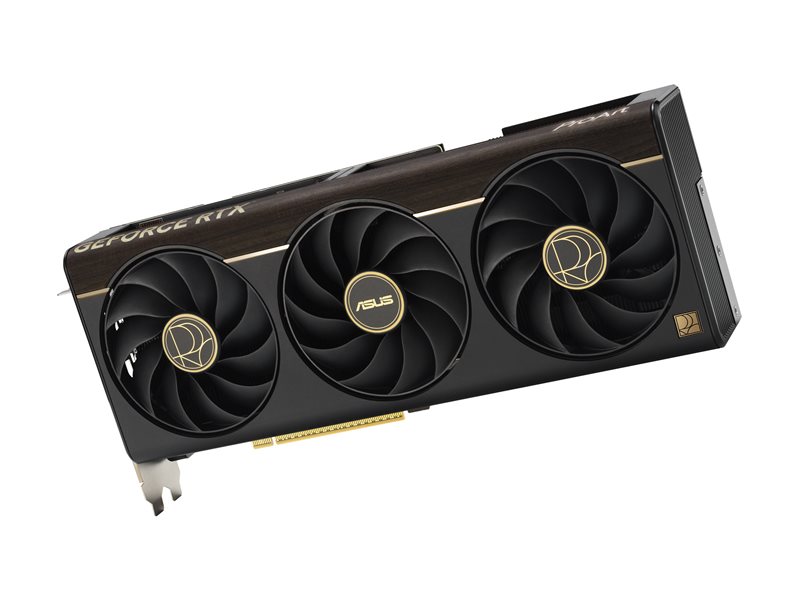

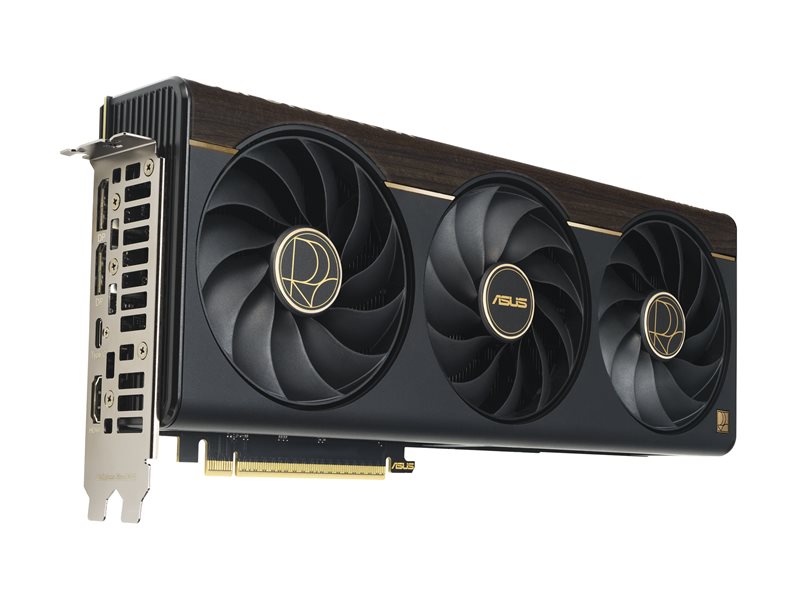

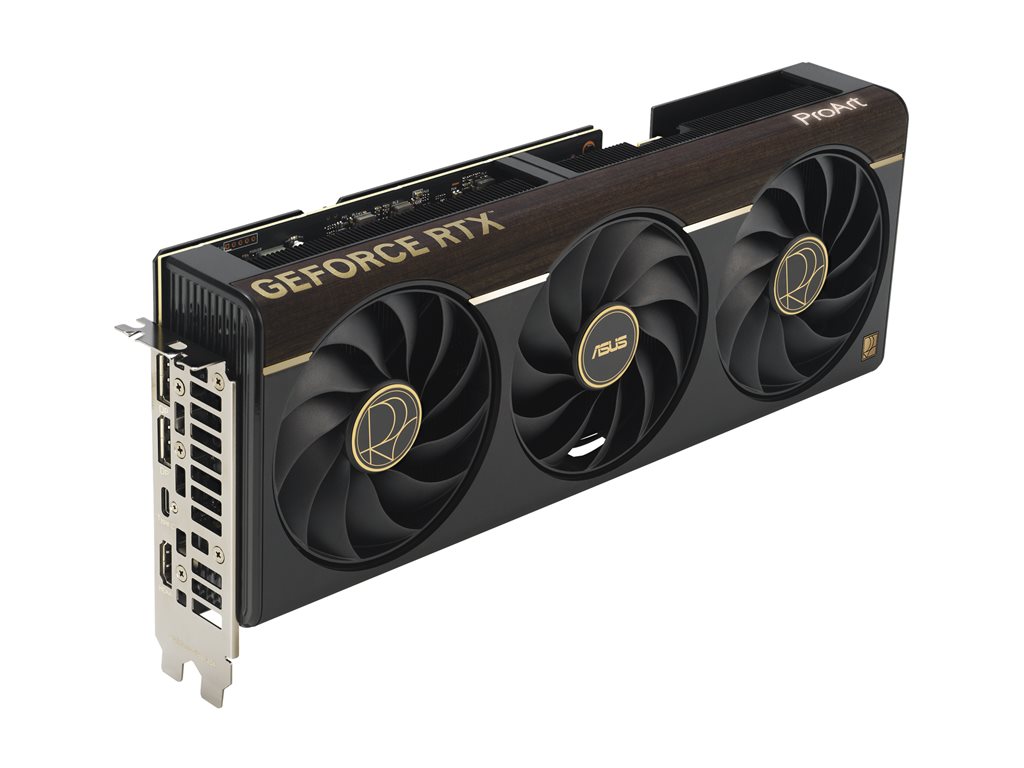

OC Edition - graphics card - GeForce RTX 5080 - 16 GB GDDR7 - PCI Express 5.0 - HDMI, 2 x DisplayPort, USB-C
| Main Specifications | |
|---|---|
| Product Description | ASUS ProArt - OC Edition - graphics card - GeForce RTX 5080 - 16 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | NVIDIA GeForce RTX 5080 - up to 1801 TOPS |
| Memory | 16 GB GDDR7 |
| Memory Speed | 30 Gbps |
| Boost Clock | 2700 MHz |
| Boost Clock (OC) | 2730 MHz |
| CUDA Cores | 10752 |
| Memory Interface | 256-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 2 x DisplayPort ¦ HDMI ¦ USB-C |
| API Supported | OpenGL 4.6 |
| Dimensions (WxDxH) | 2 in x 12 in x 5 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | NVIDIA GeForce RTX 5080 |
| Boost Clock | 2700 MHz |
| Boost Clock (OC) | 2730 MHz |
| CUDA Cores | 10752 |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 2 x DisplayPort ¦ HDMI ¦ USB-C |
| API Supported | OpenGL 4.6 |
| Features | Triple Fan Design, 2.5-slot Fan Cooler, NVIDIA Blackwell GPU architecture, 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA DLSS 4, NVIDIA Reflex 2, NVIDIA Avatar Cloud Engine (ACE), NVIDIA Frame Warp, NVIDIA Multi Frame Generation, Nvidia Broadcast, NVIDIA G-Sync ready, 9th Gen NVIDIA Encoder, NVIDIA GeForce SFF-Ready, phase-change thermal pad, Vapor chamber cooling technology, Axial-tech Fan Design, 0dB Technology, reverse airflow, vented backplate, Dual Bios, MaxContact technology, ASUS GPU Guard, moisture resistant, dust resistant, AUTO-EXTREME technology, ASUS AURA SYNC support, HDCP |
| Memory | |
| Size | 16 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 30 Gbps |
| Bus Width | 256-bit |
| Miscellaneous | |
| Included Accessories | ProArt graphics card holder, hook-and-loop fastener, thank you card, 16-pin to 3x 8-pin cable adapter |
| Software Included | ASUS GPU Tweak III, MuseTree, GeForce Game Ready Drivers, NVIDIA Studio drivers, NVIDIA App, Adobe Creative Cloud (1 month membership) |
| Compliant Standards | HDCP 2.3, DisplayPort 2.1b |
| Width | 2 in |
| Depth | 12 in |
| Height | 5 in |
| System Requirements | |
| Required Power Supply | 850 W |
| Additional Requirements | 16 pin PCI Express power connector |
| Performance | |
| NPU Performance Up To (TOPS) | 1801 TOPS |
