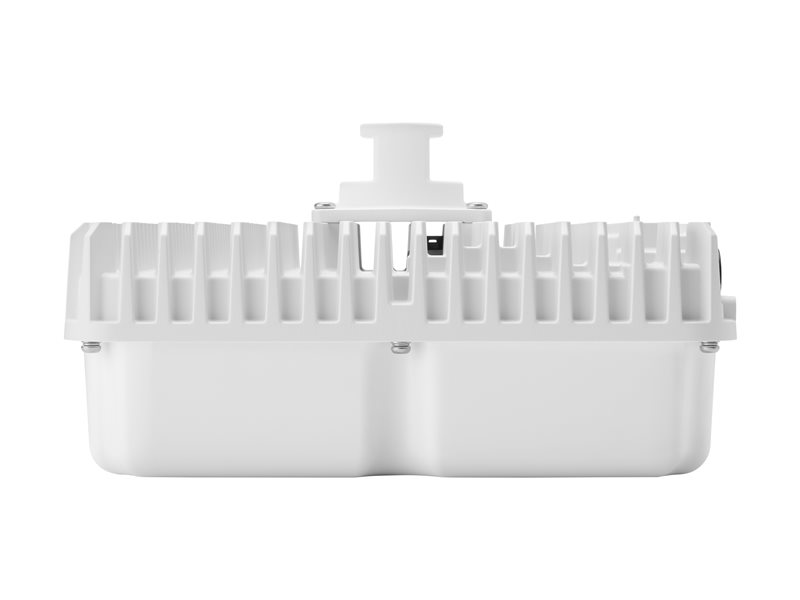

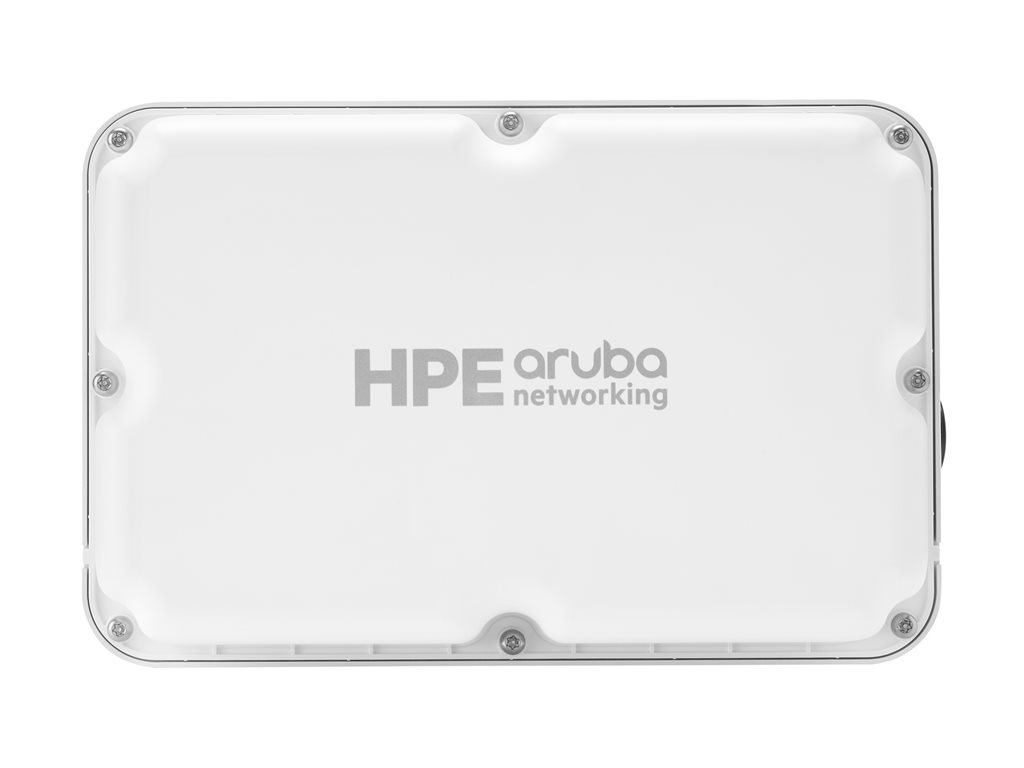

Wireless access point - built?in dynamic antennas - Wi-Fi 7, Bluetooth 5.4 LE - Wi-Fi 7, Bluetooth, ZigBee - 2.4 GHz, 5 GHz, 6 GHz - wall / pole mountable
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba Networking AP-765 (US) Flex - wireless access point - built?in dynamic antennas - Wi-Fi 7, Bluetooth, ZigBee |
| Device Type | Wireless access point |
| Form Factor | Wall / pole mountable - outdoor |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4 LE, ZigBee |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (5 GHz): 2.9 Gbps ¦ Maximum data rate (2.4 GHz): 688 Mbps ¦ Maximum data rate (6 GHz): 5.8 Gbps |
| Capacity | Spatial streams: 4 ¦ Associated client devices per radio: 400 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 37 |
| OS Required | ArubaOS 10.9 |
| Power Over Ethernet (PoE) Supported | PoE Class 5 |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Built-in Devices | GNSS receiver, GPS receiver |
| Expansion / Connectivity | |
| Interfaces | 1 x 100/1000/2500/5000Base?T - RJ-45 ¦ 1 x USB 3.0 (host) - Type C ¦ 1 x USB 2.0 (host) - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC, ISED, RED 2014/53/EU, IEC/EN 62368-1, EN 60601-1-1, EN60601-1-2, IP66, IP67, ASTM B117-07A, Class 1 Division 2, ATEX Zone 2, IECEx |
| Networking | |
| Form Factor | Wall / pole mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | CCK, BPSK, OFDM, QPSK, DSSS, 16 QAM, 64 QAM, 256 QAM, 1024 QAM, 4096 QAM |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4 LE, ZigBee |
| Spread Spectrum Method | DSSS, OFDM, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (5 GHz): 2.9 Gbps ¦ Maximum data rate (2.4 GHz): 688 Mbps ¦ Maximum data rate (6 GHz): 5.8 Gbps |
| Capacity | Spatial streams: 4 ¦ Associated client devices per radio: 400 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 37 |
| Status Indicators | System, status |
| Features | 2x2 MIMO technology, SU-MIMO technology, Direct Sequence Spread Spectrum (DSSS), Dynamic Frequency Selection (DFS), zero-wait DFS (ZWDFS), packet aggregation A-MPDU, packet aggregation A-MSDU, Advanced Cellular Coexistence (ACC), Cyclic Delay Diversity (CDD), cyclic shift diversity (CSD), Target Wait Time (TWT), Fine Timing Measurement (FTM), Energy-Efficient Ethernet (EEE), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), automatic thermal shutdown, Multi-Link Operation (MLO), 4x4 MIMO 6GHz, Maximum Ratio Combining (MRC), Space Time Blocking Code (STBC), Low Density Parity Check (LDPC) |
| Encryption Algorithm | WPA2, WPA3-Enterprise, WPA3-Personal, WPA3-Enhanced Open |
| Compliant Standards | IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11be, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED 7 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE Class 5 |
| Software / System Requirements | |
| OS Required | ArubaOS 10.9 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 100% (non-condensing) |
| Antenna | |
| Antenna | Internal |
| Directivity | Directional/omni-directional |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
