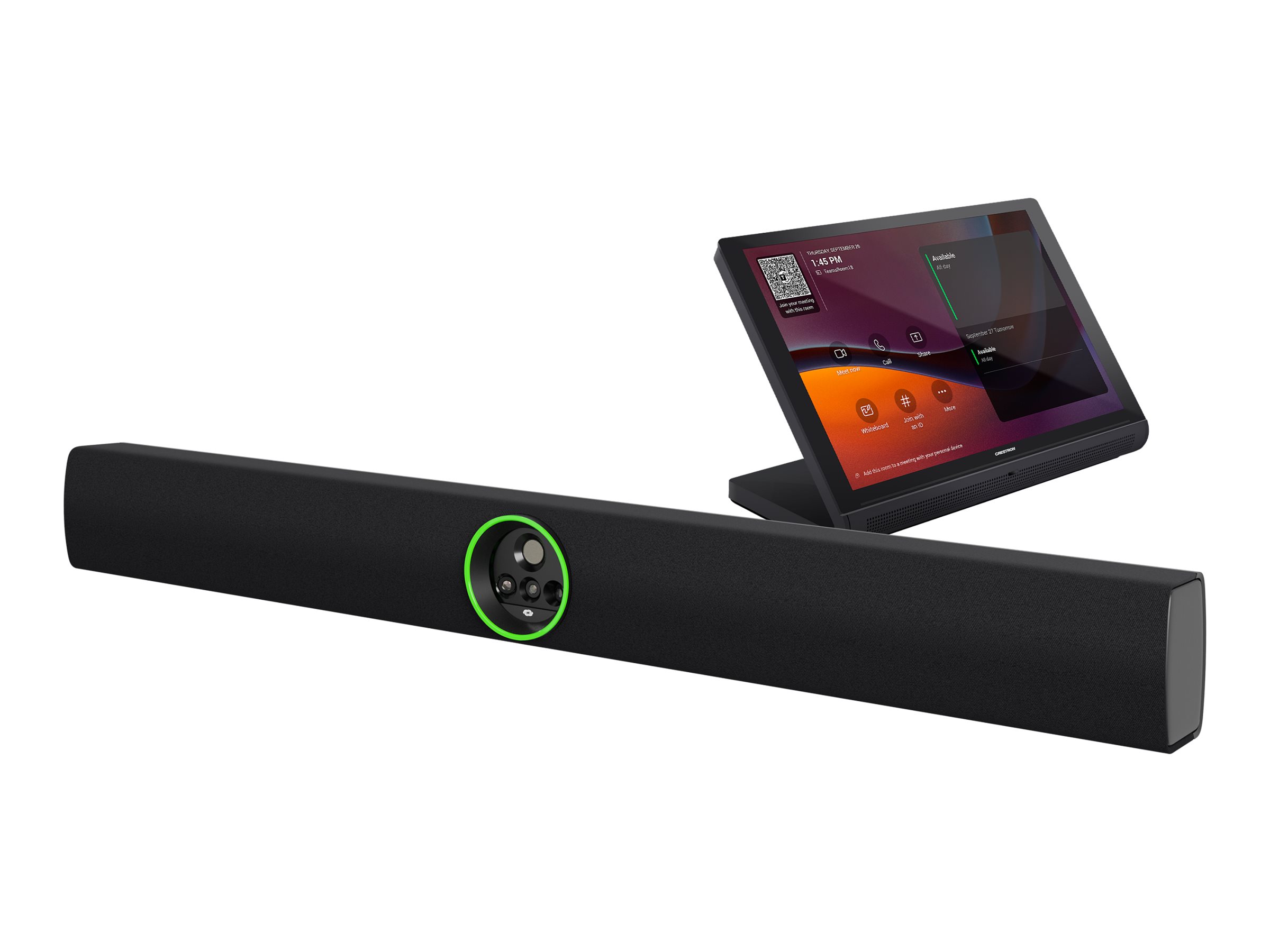

Conferencing system (touchscreen console, PoE injector, Creston Videobar 70) - black - power adapter included
| Main Specifications | |
|---|---|
| Product Description | Crestron Flex UC-B70-A-T - power adapter included |
| Device Type | Conferencing system |
| Kit Content | Touchscreen console, PoE injector, Creston Videobar 70 |
| Display | 10" TFT / 1920 x 1200 |
| Video Input | Quad digital video camera - Ethernet 100Base-TX/1000Base-T |
| Audio Input | 24-microphone array |
| Audio Output | Speaker(s) - stereo |
| Input Device | 10" touchscreen |
| Networking | Network adapter - Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Power | AC 100-240 V |
| General | |
| Device Type | Conferencing system |
| Kit Content | Touchscreen console, PoE injector, Creston Videobar 70 |
| Dimensions & Weight Details | Touch screen - Width 9.6 in Depth 4.7 in Height 5.3 in Weight 2.4 lbs ¦ Sound bar - Width 38.6 in Depth 3.8 in Height 4.3 in Weight 13.2 lbs |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Interfaces | Network - Ethernet 100Base-TX/1000Base-T - RJ-45 ¦ 3 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 1 x audio - line-out/line-in - mini-phone stereo 3.5 mm ¦ 1 x audio - line-in - mini-phone stereo 3.5 mm ¦ 1 x audio - line-out - mini-phone stereo 3.5 mm ¦ 2 x SuperSpeed USB 3.0 - Type A ¦ 2 x USB 3.1 - Type C |
| Miscellaneous | |
| Cables Included | 1 x network cable - 7 ft ¦ 1 x HDMI cable - 6 ft ¦ 1 x HDMI cable - 22 ft ¦ 1 x network cable - 20 ft |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wired |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Features | DHCP support, IPv6 support, SSH support, IPv4 support, SNMP support, CIP support, UDP support, HTTPS support, TCP/IP support, SFTP support, TLS encryption, SSL decryption |
| Compliant Standards | IEEE 802.3at, HDCP 1.4, HDCP 2.2 |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V |
| Software / System Requirements | |
| Software Included | Android, Zoom Rooms |
| Audio Output | |
| Type | Speaker(s) |
| Output Power / Channel | 10 Watt |
| Sound Output Mode | Stereo |
| Audio Input | |
| Type | 24-microphone array - integrated |
| Input Device | |
| Type | 10" touchscreen |
| Display | |
| Technology | TFT active matrix |
| Diagonal Size | 10" |
| Native Resolution | 1920 x 1200 |
| Monitor Features | Edge-to-edge glass, touch screen, plastic housing |
| Video Input | |
| Type | Quad digital video camera (color) - integrated |
| Interface Type | Ethernet 100Base-TX/1000Base-T |
| Digital Video Capture Resolution | 3840 x 2160, 5472 x 3078 |
| Video Modes | 4K |
| Digital Zoom | 7.5 |
| Features | 20 megapixels resolution |
