Presentation server - 1GbE - Wi-Fi 5 - 2.4 GHz, 5 GHz
| Main Specifications | |
|---|---|

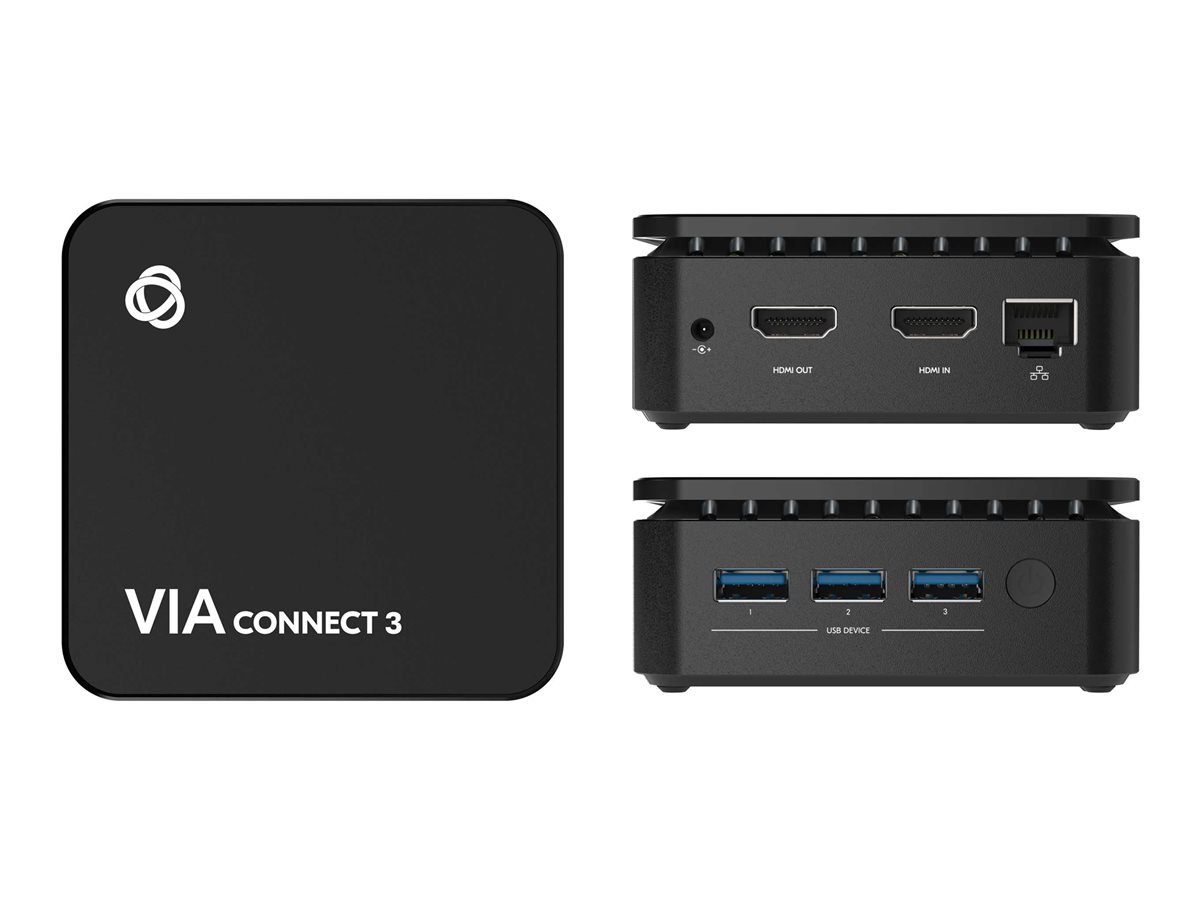

| Product Description | Kramer VIA Connect3 - presentation server - Wi-Fi 5 |
| Device Type | Presentation server |
| Form Factor | External |
| Processor | 1 x Intel N-series N100 - 3.4 GHz |
| RAM | 16 GB |
| Hard Drive | 128 GB x 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz, 5 GHz |
| Dimensions (WxDxH) | 3.5 in x 3.5 in x 1.3 in |
| Weight | 10.58 oz |
| General | |
| Device Type | Presentation server |
| Width | 3.5 in |
| Depth | 3.5 in |
| Height | 1.3 in |
| Weight | 10.58 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input - Type A ¦ 1 x HDMI output - Type A ¦ 1 x 1000Base-T - RJ-45 ¦ 3 x USB 3.0 - Type A |
| Miscellaneous | |
| Compliant Standards | FCC, UL, BIS |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Network / Transport Protocol | RTMP, RTMPS |
| Frequency Band | 2.4 GHz, 5 GHz |
| Features | VIA Site Management (VSM), 4K30Hz support, security slot (Kensington security lock compatible), cloud managed, guest access, 802.1x authentication, 1024-bit encryption, HDCP compliant |
| Power | |
| Power Device | External power adapter |
| Software / System Requirements | |
| OS Provided | Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Intel N-series N100 3.4 GHz |
| RAM | 16 GB DDR5 SDRAM |
| Hard Drive | SSD 128 GB x 1 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.2 in |
| Shipping Depth | 4.7 in |
| Shipping Height | 4.3 in |
| Shipping Weight | 31.74 oz |
