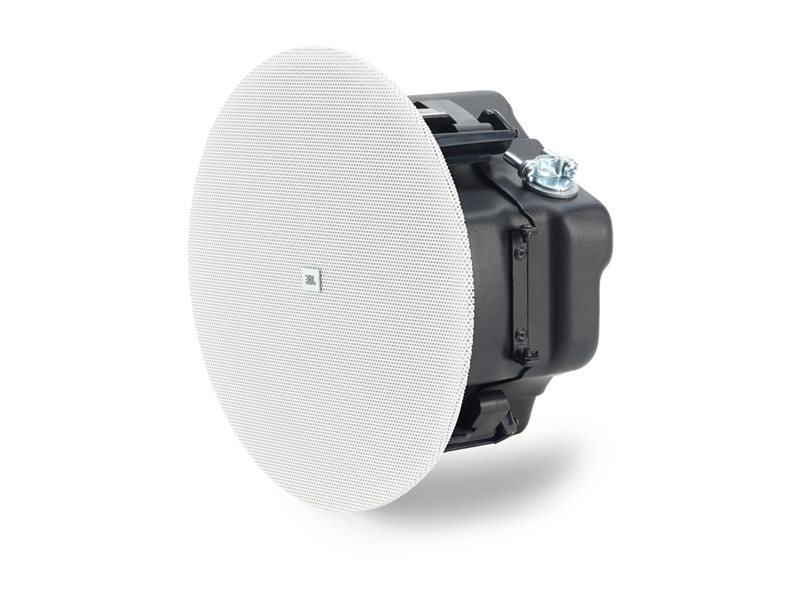

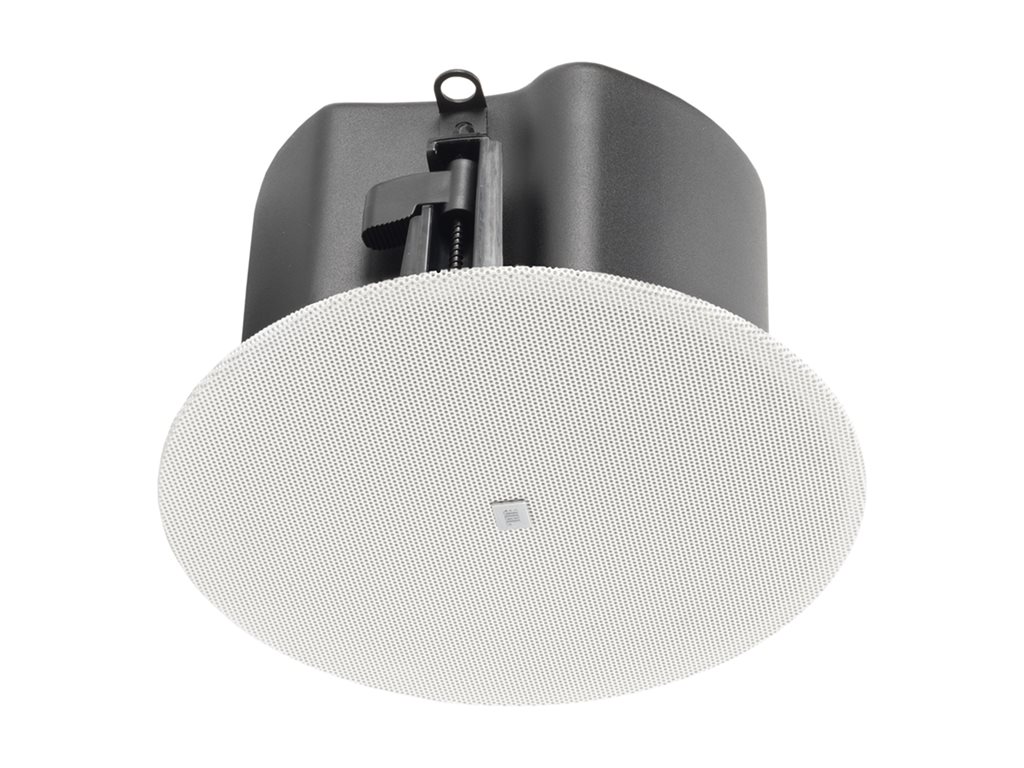

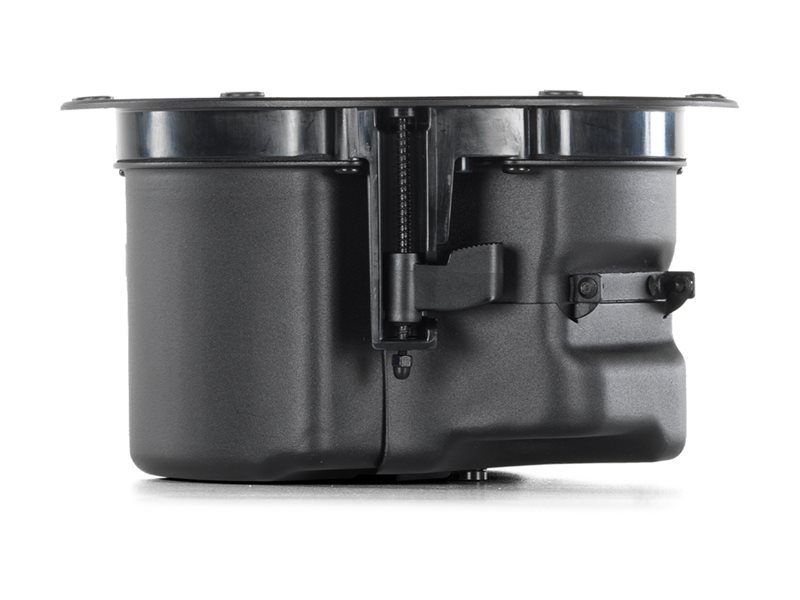

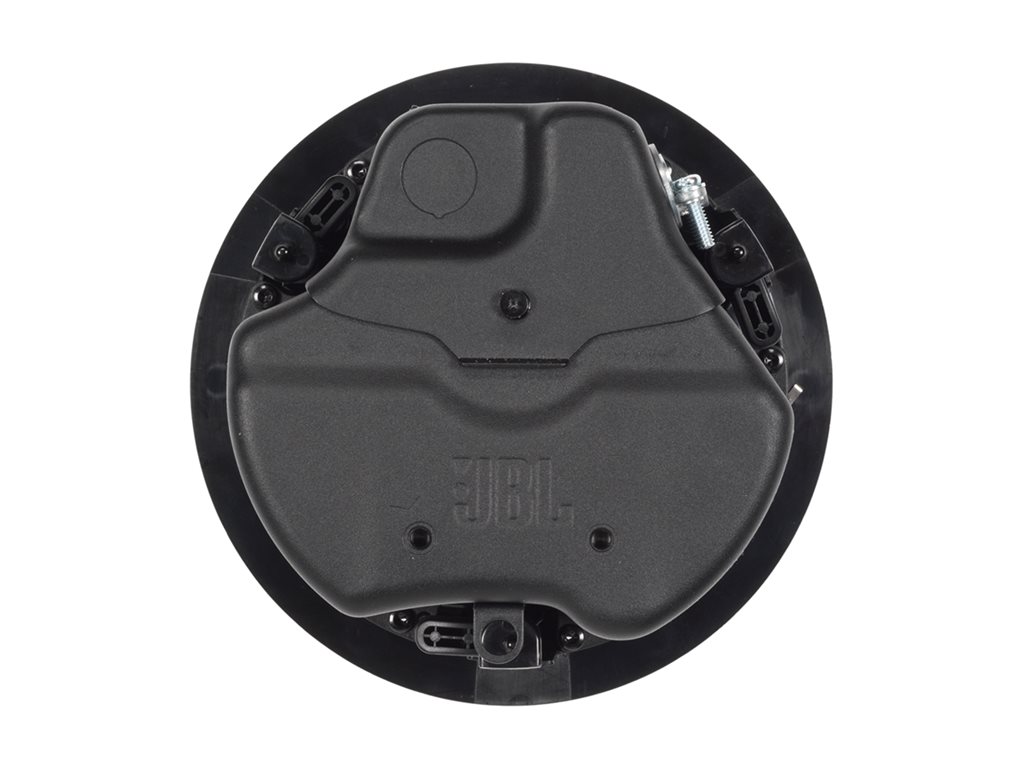

400 Series - speaker - 15 Watt - 2-way (grille color - white, RAL 9003)
| Main Specifications | |
|---|---|
| Product Description | JBL Professional Control 414C/T Micro - speaker |
| Product Type | 400 Series - speaker |
| Speaker Type | 2-way - passive |
| Continuous Power | 15 watt |
| Peak Power | 60 watt |
| Nominal Impedance | 8 ohm |
| Integrated Transformer | 70V/100V operation |
| Dimensions (WxDxH) | 4.5 in |
| Dimensions - Diameter | 8 in |
| Weight | 4.65 lbs |
| General | |
| Product Type | Speaker |
| Enclosure Material | PC/ABS, powder-coated steel |
| Design Features | Paintable, low-profile enclosure |
| Grille Color | White, RAL 9003 |
| Miscellaneous | |
| Compliant Standards | IP32, IEC 60529, EN 60529, RoHS, Directive 2011/65/EU, Directive 2015/863/EU, NFPA 90A, NFPA 70, CSA C22.2 No. 205, UL 1480A, UL 2043 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Dimensions & Weight | |
| Diameter | 8 in |
| Depth | 4.5 in |
| Weight | 4.65 lbs |
| Speaker System | |
| Series | 400 Series |
| Speaker Type | 2-way - passive |
| Continuous Power | 15 watt |
| Peak Power | 60 watt |
| Frequency Response (-10dB) | 69 - 25000 Hz |
| Nominal Impedance | 8 ohm |
| Max Output Level (Max SPL) | 104 dB |
| Sensitivity | 86 dB (1W@1m) |

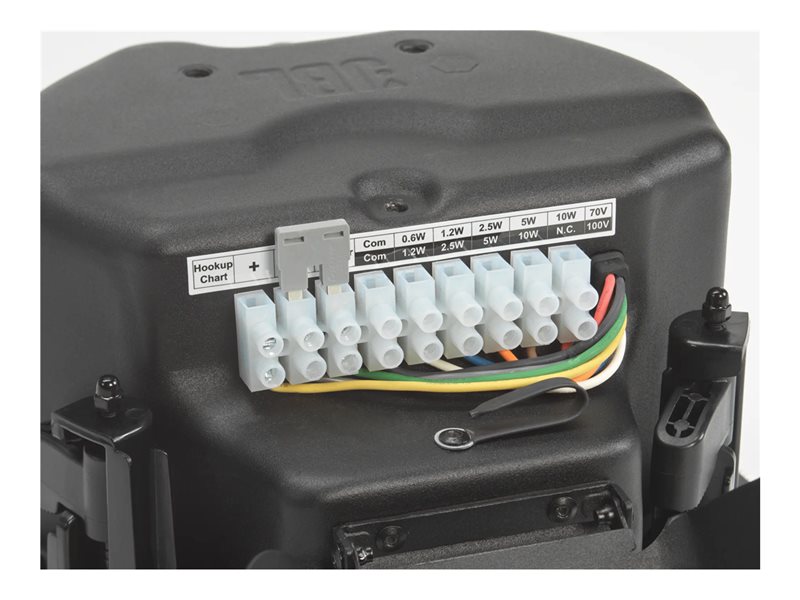

| Integrated Transformer | 70V/100V operation |
| Coverage | 160° conical |
| Recommended Placing | In-ceiling mounted |
| Detachable Grilles | Yes |
| Speaker System Details | |

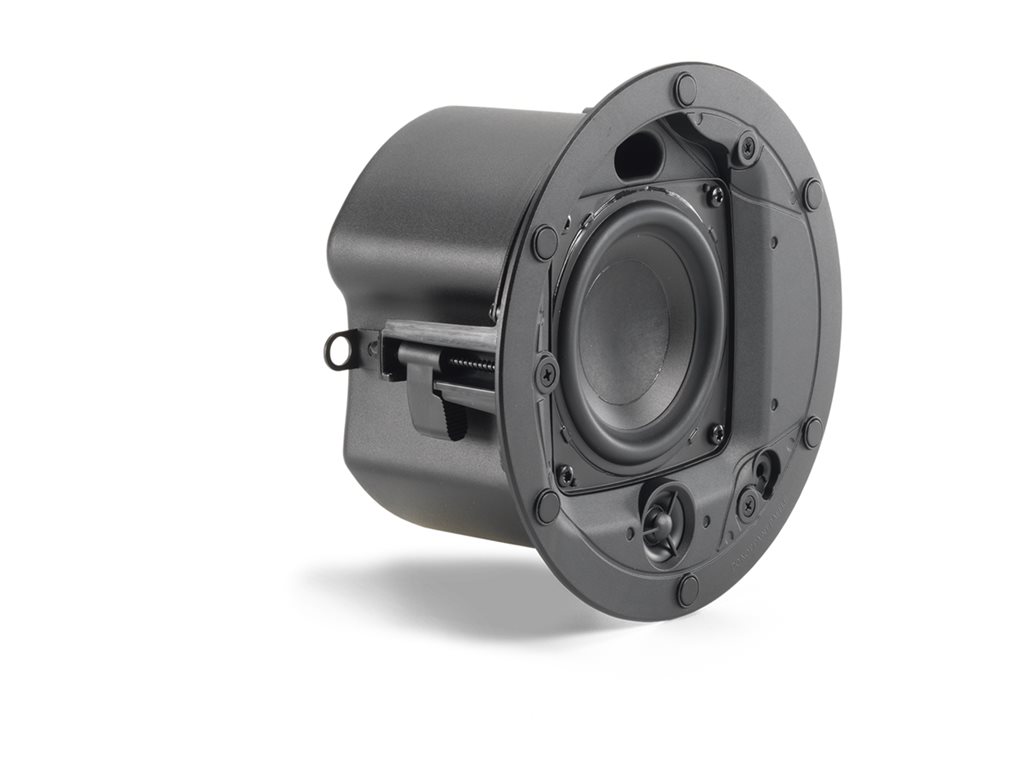

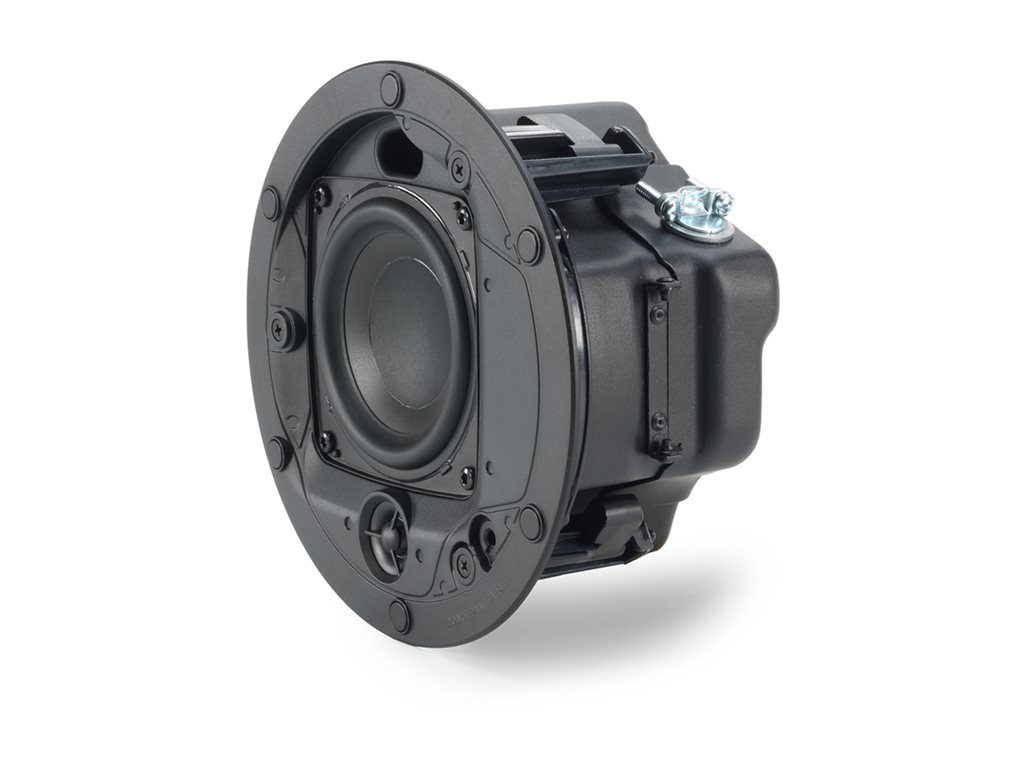

| Driver Details | Speaker: woofer driver - 4" - polypropylene cone and paper cup with SBR surround ¦ Speaker: tweeter driver - 0.5" - PEI dome |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 18.92 lbs |
| Cutout & Mounting Dimensions | |
| Diameter | 6.6 in |
