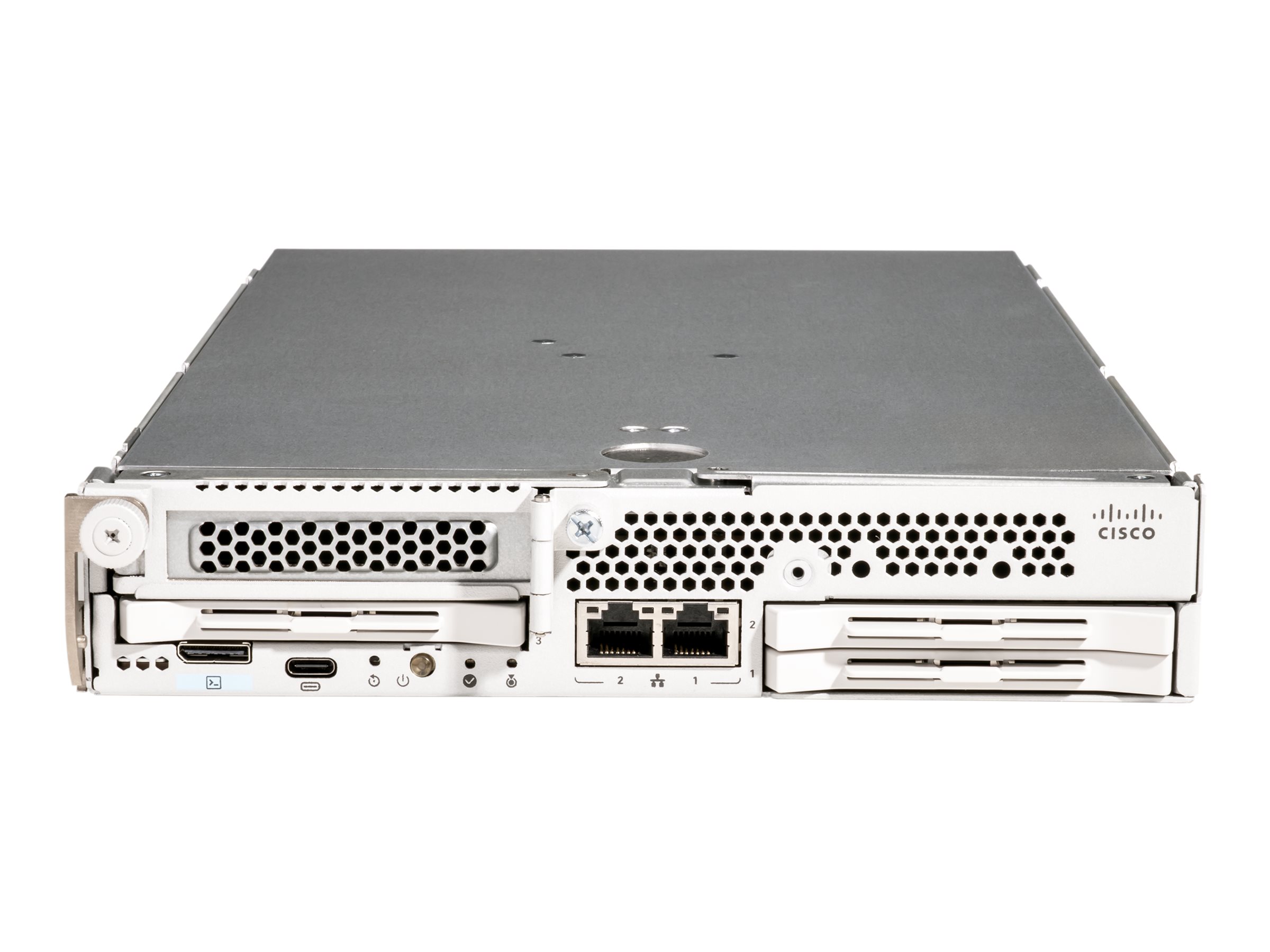

Server - compute node 1U - 1-way - 1 x Xeon 6513P-B - RAM 0 GB - SATA/SAS/PCI Express - hot-swap 2.5" bay(s) - no HDD - monitor: none
| Main Specifications | |
|---|---|
| Product Description | Cisco UCS XE130c M8 - compute node Xeon 6513P-B 2 GHz - 0 GB - no HDD |
| Type | Server - compute node |
| Height (Rack Units) | 1U |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon (6th Gen) 6513P-B / 2 GHz (20-core) |
| Processor Main Features | 130W TDP |
| RAM | 0 GB (installed) / 768 GB (max) - DDR5 SDRAM - ECC |
| Storage Controller | SAS |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Software Included | Cisco Intersight |
| Dimensions (WxDxH) | 8.2 in x 13.9 in x 1.6 in |
| Weight | 6.61 lbs |
| Manufacturer Warranty | Limited warranty - replacement - 3 years - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Compute node - 1U |
| Built-in Devices | Status LED |
| Server Scalability | 1-way |
| Internal Bays Qty | 2 |
| Front Accessible Bays Qty | 4 |
| Hot-Swap Bays Qty | 4 |
| Expansion / Connectivity | |
| Bays | 4 (total) / 4 (free) x hot-swap 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 - low-profile (half-length) ¦ 2 (total) / 2 (free) x LAN-on-Motherboard (LOM) |
| Interfaces | 1 x OCuLink (1 front) (console) ¦ 1 x USB-C (1 front) (console) ¦ 2 x 10 Gigabit Ethernet - RJ-45 (2 front) ¦ 1 x KVM (1 in front) (console) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
| Miscellaneous | |
| Compliant Standards | SMBIOS 3.7, ACPI 6.5, UEFI 2.9, WEEE |
| RAM | |
| Installed Size | 0 GB (installed) / 768 GB (max) |
| Technology | DDR5 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 8 (total) / 8 (empty) |
| Networking | |
| Remote Management Controller | Cisco Integrated Management Controller |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Storage Controller | |
| Type | 1 x SAS |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Operating System / Software | |
| Software | Cisco Intersight |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 8.2 in |
| Depth | 13.9 in |
| Height | 1.6 in |
| Weight | 6.61 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon (6th Gen) 6513P-B |
| Clock Speed | 2 GHz |
| Number of Cores | 20-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | 130W TDP |
