USB extender - USB 3.0 - over CAT 6 - up to 328 ft - for KanexPro RS-232 to Ethernet Control Processor
| Main Specifications | |
|---|---|
| Product Description | KanexPro - USB extender - USB 3.0 |
| Device Type | USB extender |
| Form Factor | External |
| Data Transfer Rate | 5 Gbps |
| Data Link Protocol | USB 3.0 |
| Transmission Medium | CAT 6 |
| Max Transfer Distance | 328 ft |
| Power | AC 100-240 V |
| Designed For | KanexPro RS-232 to Ethernet Control Processor |
| General | |
| Device Type | USB extender |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |

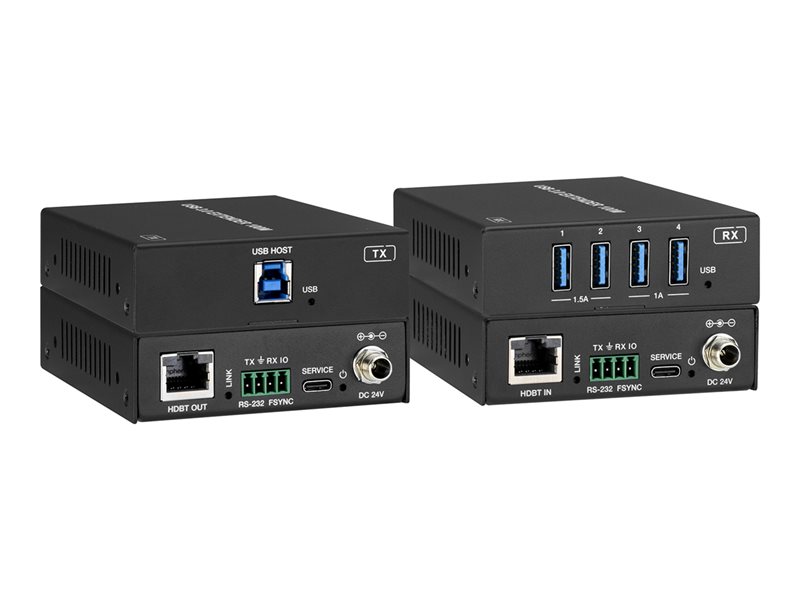

| Interfaces | 1 x USB (host) - Type B female ¦ 1 x HDBaseT output (output) - RJ-45 female ¦ 1 x RS-232 (transmitter) - 3 pin Phoenix ¦ 1 x GPIO (transmitter) - 1 pin Phoenix ¦ 1 x USB-C (transmitter) ¦ 1 x HDBaseT input (input) - RJ-45 ¦ 4 x USB 3.0 - USB type A ¦ 1 x RS-232 (receiver) ¦ 1 x GPIO (receiver) - 1 pin Phoenix ¦ 1 x USB-C (receiver) |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 3.0 |
| Data Transfer Rate | 5 Gbps |
| Max Transfer Distance | 328 ft |
| Features | HDBaseT technology, 10 Gbps bandwidth, metal housing |
| Compliant Standards | USB 3.0, USB 2.0, USB 1.1 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Receiver: 3.3 in x 3.9 in x 1 in / 9.2 oz ¦ Transmitter: 3.3 in x 3.9 in x 1 in / 8.9 oz |
| Compatibility Information | |
| Designed For | KanexPro RS-232 to Ethernet Control Processor |
