Microsoft Teams Rooms - video conferencing kit
| Main Specifications | |
|---|---|
| Product Description | Yealink MVC Series MVC S90-C5U - Microsoft Teams Rooms - video conferencing kit - power adapter included |
| Device Type | Video conferencing kit |

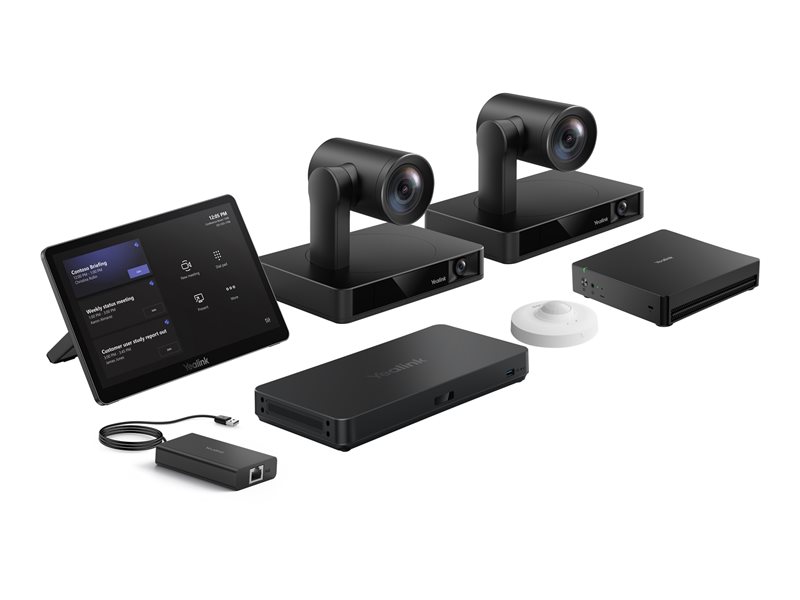

| Kit Content | MCore 4, MTouch Plus touch panel, RoomSensor, 2 x UVC86 USB PTZ camera, AVHub, MVC-BYOD-Extender |
| Display | 11.6" IPS / 1920 x 1080 |
| Video Input | Digital video camera - USB |
| Input Device | 11.6" touchscreen (wired, wireless) |
| PC Configuration | Core Ultra 5 125H, 16GB RAM, 256GB SSD |
| Networking | Network adapter - Bluetooth 5.2, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Gigabit Ethernet, Fast Ethernet, Ethernet |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | MCore 4, MTouch Plus touch panel, RoomSensor, 2 x UVC86 USB PTZ camera, AVHub, MVC-BYOD-Extender |
| Expansion / Connectivity | |
| Interfaces | 3 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x Yealink Mtouch port - RJ-45 |
| Miscellaneous | |
| Compliant Standards | EDID compatible, CEC |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Bluetooth 5.2, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Gigabit Ethernet, Fast Ethernet, Ethernet |
| Features | Trusted Platform Module 2.0 (TPM 2.0), CEC support |
| Power | |
| Power Device | Power adapter - external |
| Software / System Requirements | |
| Software Included | Windows 11 IoT Enterprise, Windows 11 IoT Enterprise License, Microsoft Teams Rooms App, Yealink RoomConnect |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% |
| Input Device | |
| Type | 11.6" touchscreen |
| Connectivity Technology | Wired, wireless |
| Features | 1920 x 1080 resolution, IPS screen, security lock slot |
| Display | |
| Technology | IPS |
| Diagonal Size | 11.6" |
| Native Resolution | 1920 x 1080 |
| Monitor Features | Narrow-bezel design |
| Video Input | |
| Type | Digital video camera (color) - external |
| Interface Type | USB |
| Digital Video Capture Resolution | 4K |
| Video Modes | 4K |
| Optical Zoom | 12 |
| Digital Zoom | 1.7 |
| Features | Security lock slot (cable lock sold separately), auto-framing, speaker tracking, presenter tracking, gesture control, multi-focus framing, PIP support |
| Video Output | |
| PC Configuration | Core Ultra 5 125H, 16GB RAM, 256GB SSD |
