Server - tower 4U - 1-way - 1 x Xeon 6325P / up to 5.2 GHz - RAM 32 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 2 x 960 GB - Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|

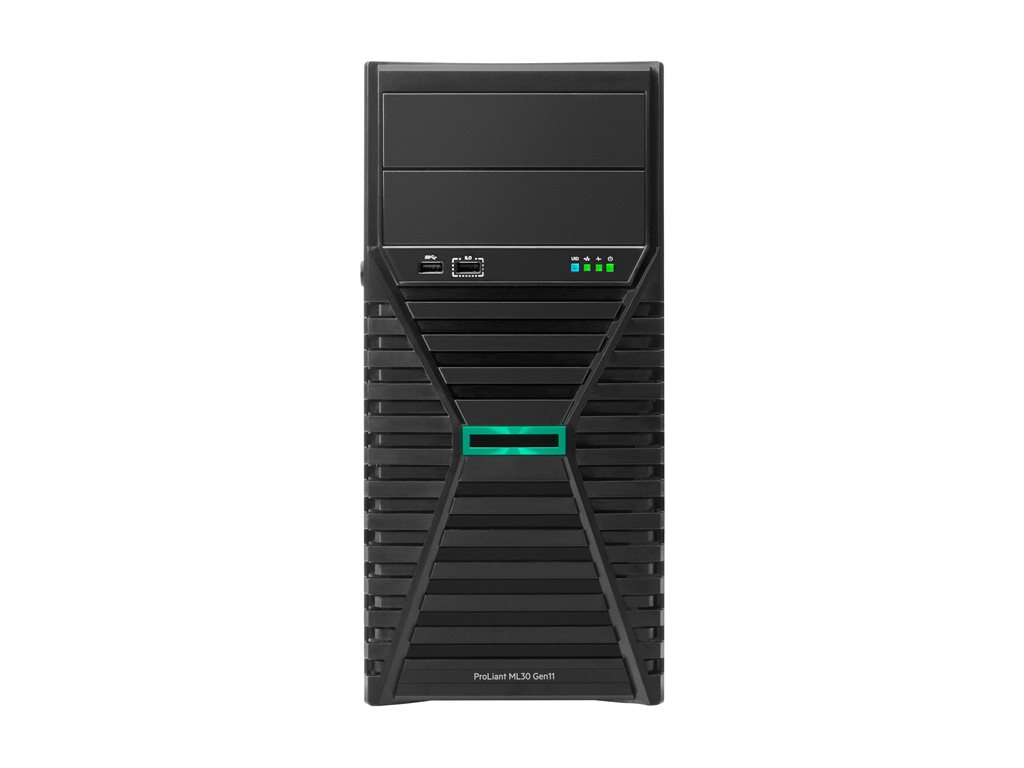

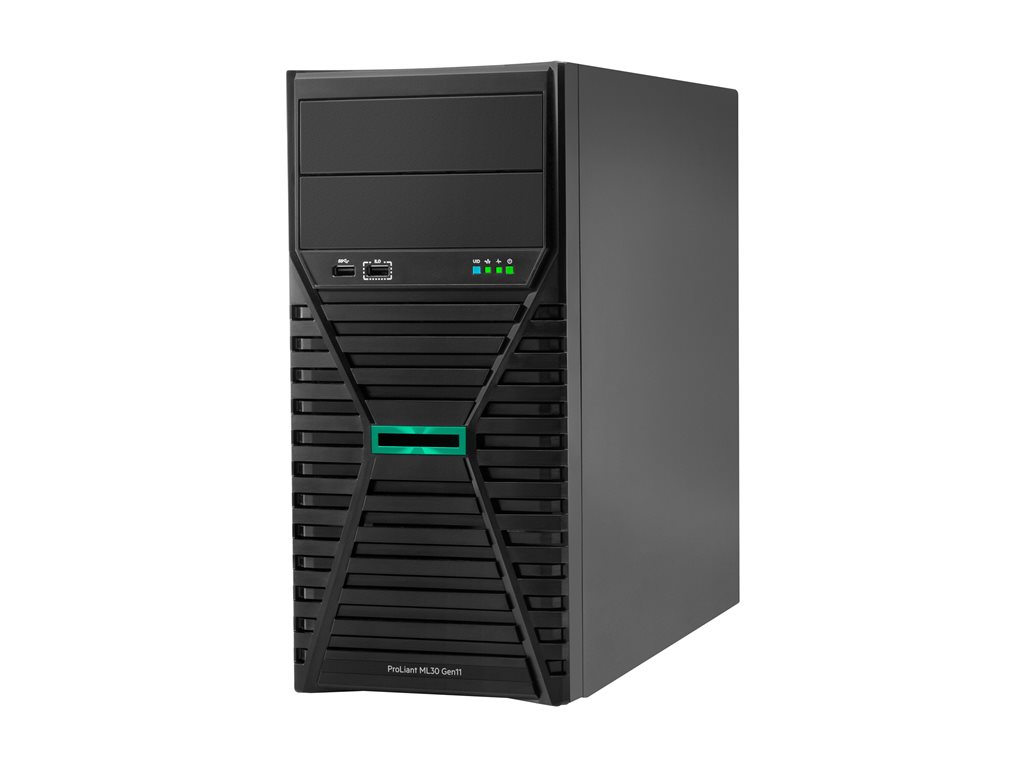

| Product Description | HPE ProLiant ML30 Gen11 - tower Xeon 6325P 3.5 GHz - 32 GB - SSD 2 x 960 GB |
| Type | Server - tower |
| Height (Rack Units) | 4U |
| Localization | Region: North America |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon 6325P / 3.5 GHz (up to 5.2 GHz, (Quad-Core) |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, 8 Threads, 55W TDP |
| Cache Memory | 12 MB L3 cache |
| Cache Per Processor | 12 MB |
| RAM | 32 GB (installed) / 128 GB (max) - DDR5 SDRAM |
| Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) (HPE MR216i-p Gen11 SPDM) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 2 x SSD 960 GB |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power Redundancy | Yes |
| Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Dimensions (WxDxH) | 6.9 in x 18.7 in x 14.5 in |
| Environmental Standards | ENERGY STAR Qualified EPEAT Bronze |
| Manufacturer Warranty | Limited warranty - parts - 3 years - on-site - response time: next business day ¦ Limited warranty - parts and labor - 1 year - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Tower - 4U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: North America |
| Expansion / Connectivity | |
| Bays | 8 (total) / 6 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x16 mode, processor) ¦ 1 (total) / 1 (free) x PCIe 4.0 x8 - full-length, full-height (x4 mode, processor) ¦ 2 (total) / 1 (free) x PCIe 4.0 x8 - half-length, full-height (x4 mode, PCH) ¦ 1 (total) / 1 (free) x M.2 Card (PCIe 3.0 x2/NVMe) |
| Interfaces | 1 x DisplayPort ¦ 1 x VGA ¦ 3 x LAN (Gigabit Ethernet) - RJ-45 (3 rear) ¦ 1 x HPE iLO - Type A (1 front) (service port) ¦ 5 x USB 3.2 Gen 1 (1 front, 4 rear) ¦ 1 x LAN (Gigabit Ethernet) / HPE iLO - RJ-45 (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years - on-site - response time: next business day ¦ Limited warranty - parts and labor - 1 year - on-site - response time: next business day |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock eye |
| Security Slot Type | Kensington security slot |
| Compliant Standards | AES, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, ACPI 6.3, Active Directory v1.0, UEFI 2.9 |
| RAM | |
| Installed Size | 32 GB (installed) / 128 GB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 3 (empty) |
| Features | Unbuffered, HPE Standard Memory |
| Configuration Features | 1 x 32 GB |
| Networking | |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5719 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | Wake on LAN (WoL), PXE support |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-120/200-240 V |
| Power Provided | 500 watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | HPE MR216i-p Gen11 SPDM |
| Channel Qty | 16 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Cache Memory | |
| Installed Size | L3 cache - 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA, DisplayPort |
| Operating System / Software | |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Hard Drive | |
| Type | SSD |
| Capacity | 2 x 960 GB |
| Dimensions & Weight | |
| Width | 6.9 in |
| Depth | 18.7 in |
| Height | 14.5 in |
| Processor / Chipset | |
| CPU | Intel Xeon 6325P |
| Clock Speed | 3.5 GHz |
| Max Turbo Speed | 5.2 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, 8 Threads, 55W TDP |
| Chipset Type | Intel C262 |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Bronze |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
