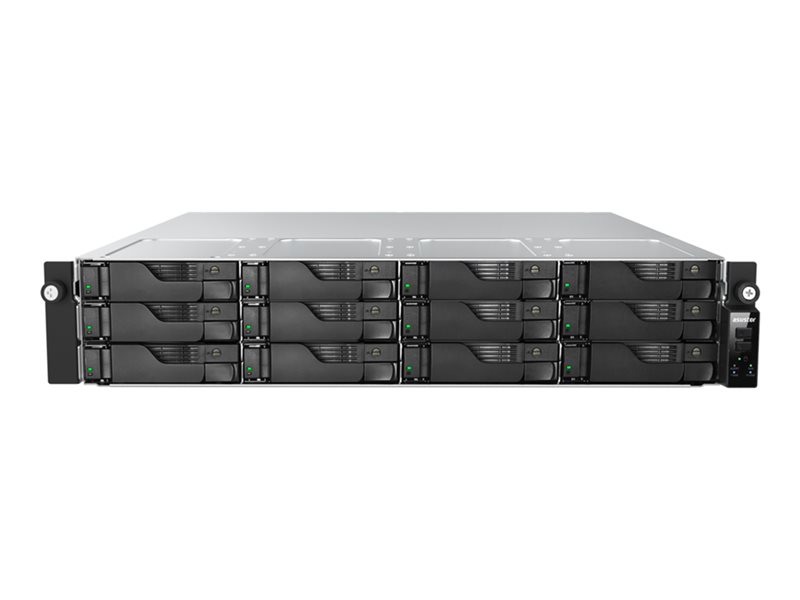

NAS server - 12 bays - SATA 6Gb/s - RAID 0, 1, 5, 6, 10, JBOD - RAM 16 GB - Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 2U
| Main Specifications | |
|---|---|
| Product Description | ASUSTOR Lockerstor 12R Pro Gen2 AS7212RDX - NAS server |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | 2U |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Dimensions (WxDxH) | 17.3 in x 22.7 in x 3.5 in |
| Weight | 30.86 lbs () |
| Processor | 1 x AMD Ryzen 7 Pro 7745 3.8 GHz (8-core) |
| Storage Controller | RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, JBOD |
| Networking | 100Mb LAN, 1GbE, 10GbE |
| Performance | Maximum number of users: 16384 ¦ Maximum number of groups: 512 ¦ Maximum number of shared folders: 512 ¦ Maximum concurrent connections: 2048 |
| RAM | 16 GB |
| Power | AC 100-240 V |
| Power Redundancy | Yes |
| System Requirements | Microsoft Windows 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple MacOS, UNIX, Linux, FreeBSD |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | 2U |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Width | 17.3 in |
| Depth | 22.7 in |
| Height | 3.5 in |
| Weight | 30.86 lbs () |
| Built-in Devices | 3 x 60 mm fans, LED panel |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | X M.2 2280 ¦ 1 (total) / 1 (free) x PCI Express 5.0 x8 ¦ 1 (total) / 1 (free) x PCI Express 4.0 x4 |
| Interfaces | 2 x Ethernet 10Gb - RJ-45 ¦ 2 x Ethernet 1000Base-T - RJ-45 ¦ 4 x USB 3.2 Gen 1 - Type A ¦ 1 x HDMI output |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | 2 x network cable ¦ 2 x 10GBase-T cable |
| Features | S.M.A.R.T. support |
| Compliant Standards | FCC, VCCI, BSMI, C-Tick, KCC, BIS, UKCA |
| Included Accessories | 2 x power cables, 48 x flat head screws (for 3.5" HDD), 48 x flat head screws (for 2.5" HDD) |
| Networking | |
| Data Link Protocol | 100Mb LAN, 1GbE, 10GbE |
| Network / Transport Protocol | TCP/IP, IPv4, IPv6, DDNS |
| Remote Management Protocol | TFTP, SSH, HTTP, HTTPS, SNMP, Syslog, Active Directory, LDAP, DDNS |
| Network Services Compatibility | Microsoft CIFS, Server Message Block (SMB), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Apple File Protocol (AFP), Network File System (NFS), FTP, Web-based Distributed Authoring and Versioning (WebDAV), SFTP |
| Performance | Maximum number of users: 16384 ¦ Maximum number of groups: 512 ¦ Maximum number of shared folders: 512 ¦ Maximum concurrent connections: 2048 |
| Features | Rsync compatible, load balancing, WOL, Jumbo Frames support, VLAN support, Network Recycle Bin, MyArchive cold backup technology support, bad block scan, ACL support, auto black list, white list, black list, trusted list, antivirus analysis, HiDrive support, cloud backup, VPN client, VPN Server, RADIUS Server, SNMP server, syslog server, UPnP Media Server |
| Encryption Algorithm | 256-bit AES, TLS |
| Compliant Standards | IEEE 802.3ad (LACP) |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 102 Watt |
| Power Provided | 550 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple MacOS, UNIX, Linux, FreeBSD |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% RH |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
| Processor / Memory | |
| Processors Installed | 1 x AMD Ryzen 7 Pro 7745 3.8 GHz |
| Number of Cores | 8-core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 5.3 GHz |
| RAM | 16 GB (installed) / 192 GB (supported) - DDR5 - 4800 MHz |
| Features | ECC |
| Flash Memory Installed | 32 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.8 in |
| Shipping Depth | 27.6 in |
| Shipping Height | 9.6 in |
| Shipping Weight | 35.65 lbs |
