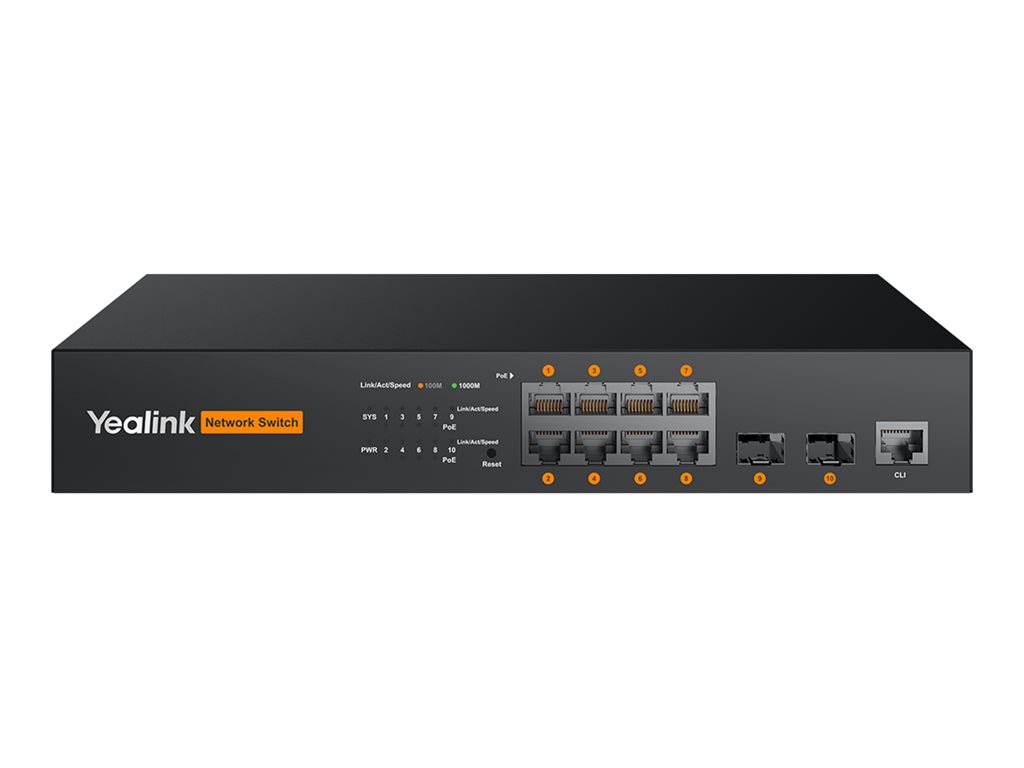

Switch - L2+ - managed - 8 x 10/100/1000 (PoE+) + 2 x 1 Gigabit SFP - rack-mountable - PoE+ (130 W)
| Main Specifications | |
|---|---|
| Product Description | Yealink RCH80 - switch - 8 ports - managed - rack-mountable |
| Device Type | Switch - 8 ports - L2+ - managed |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 1 Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 130 W |
| Performance | Switching capacity: 20 Gbps ¦ Packet forwarding rate: 28 Mpps |
| Routing Protocol | IGMPv2, IGMPv3, RSTP, MSTP, STP |
| Remote Management Protocol | DHCP |
| Features | AES67 audio network, Dante audio network, IGMP snooping, VoIP support, VLAN support, metal housing, QoS, IGMP multicast, 2 fans, GVRP, QinQ VLAN, Voice VLAN, BPDU, ERPS, IGMP fast leave, WRR |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p |
| Power | AC 100-240 V (50 Hz) |
| Dimensions (WxDxH) | 11 in x 7.1 in x 1.7 in |
| General | |
| Device Type | Switch - 8 ports - L2+ - managed |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 1 Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 130 W |
| Performance | Switching capacity: 20 Gbps ¦ Packet forwarding rate: 28 Mpps |
| Routing Protocol | IGMPv2, IGMPv3, RSTP, MSTP, STP |
| Remote Management Protocol | DHCP |
| Features | AES67 audio network, Dante audio network, IGMP snooping, VoIP support, VLAN support, metal housing, QoS, IGMP multicast, 2 fans, GVRP, QinQ VLAN, Voice VLAN, BPDU, ERPS, IGMP fast leave, WRR |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000 Base-T (PoE+) RJ-45 ¦ 4 x 1000Base-X SFP uplink |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 Hz) |
| Power Consumption Operational | 10 Watt |
| Dimensions & Weight | |
| Width | 11 in |
| Depth | 7.1 in |
| Height | 1.7 in |
