Switch - hardware with base software, redundant fans, 2 AC power supplies - L3 - 32 x 400 Gigabit QSFP-DD + 2 x 10 Gigabit SFP+ - front to back airflow - rack-mountable - DC - TAA Compliant - for P/N: APBR-ADP-M16, APBRU-M16, APBRU-T12, APOUTBR-ART, APOUTBR-ART2, APOUTBR-FM2, APWP-KIT
| Main Specifications | |
|---|---|

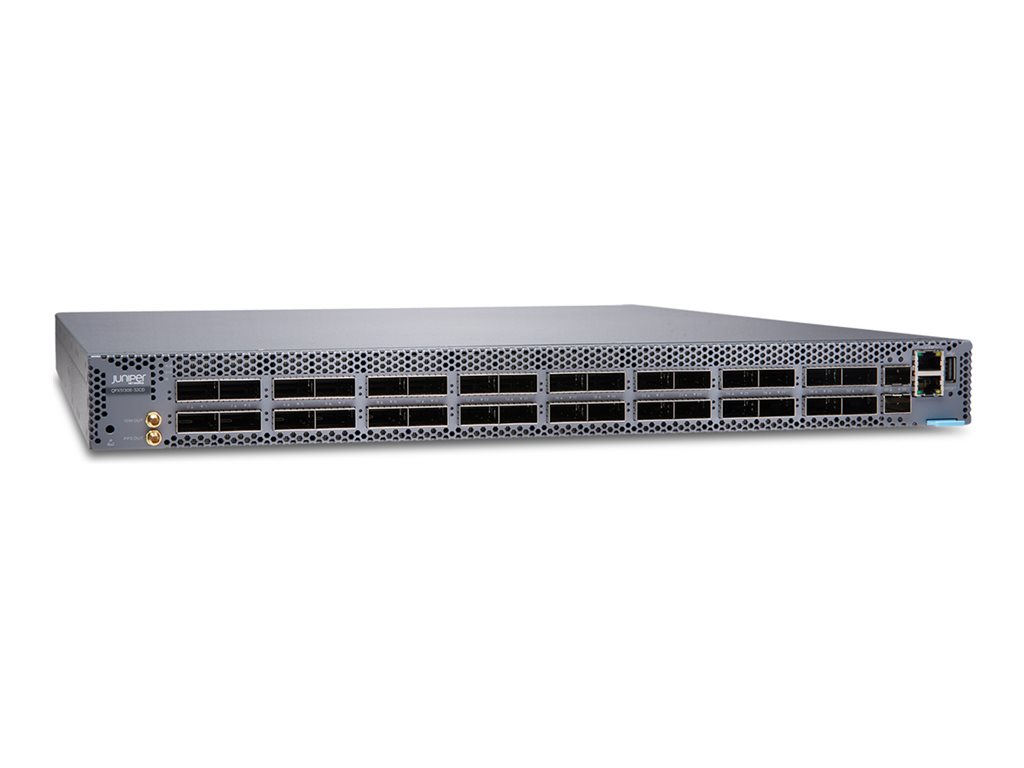

| Product Description | Juniper Networks QFX Series QFX5130E-32CD - switch - hardware with base software, redundant fans, 2 AC power supplies - 32 ports - rack-mountable - TAA Compliant |
| Device Type | Switch - 32 ports - L3 |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Ports | 32 x 400 Gigabit QSFP-DD + 2 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 8 Bpps ¦ Bidirectional throughput: 25.6 Tbps ¦ Unidirectional throughput: 12.8 Tbps ¦ Forwarding capacity: 5.3 Bpps |
| Capacity | Buffer capacity: 132 MB ¦ IPv4 routes: 720000 ¦ IPv6 routes: 428000 ¦ VLANs supported: 4000 ¦ ARP entries: 32000 ¦ Egress VLAN ACL (VACL): 2000 ¦ Port-based ACL entries (egress): 8000 ¦ Egress routed ACL: 4000 ¦ VLAN-based ACL entries (ingress): 10000 ¦ Port-based ACL entries (ingress): 40000 ¦ Ingress routed ACL: 40000 ¦ ARP entries: 32000 ¦ Link Access Groups (LAGs): 128 ¦ Maximum number of mirroring sessions: 4 ¦ QoS hardware queues per port (multicast): 2 ¦ QoS hardware queues per port (unicast): 8 |
| MAC Address Table Size | 160K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | BGP |
| Features | EVPN, VXLAN, 5+1 redundant fans, hot-swappable fan units, JTI, ZTP |
| Power | DC |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.2 in x 21.1 in x 1.7 in |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: APBR-ADP-CR9, APBR-ADP-CSC, APBR-ADP-M16, APBR-ADP-RT15, APBR-ADP-WS15, APBR-M16, APBR-SW1, APBR-T58, APBR-U, APBRU-M16, APBRU-T12, APOUTBR-ART, APOUTBR-ART2, APOUTBR-FM, APOUTBR-FM2, APWP-KIT, DC-01 |
| General | |
| Device Type | Switch - 32 ports - L3 |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Ports | 32 x 400 Gigabit QSFP-DD + 2 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 8 Bpps ¦ Bidirectional throughput: 25.6 Tbps ¦ Unidirectional throughput: 12.8 Tbps ¦ Forwarding capacity: 5.3 Bpps |
| Capacity | Buffer capacity: 132 MB ¦ IPv4 routes: 720000 ¦ IPv6 routes: 428000 ¦ VLANs supported: 4000 ¦ ARP entries: 32000 ¦ Egress VLAN ACL (VACL): 2000 ¦ Port-based ACL entries (egress): 8000 ¦ Egress routed ACL: 4000 ¦ VLAN-based ACL entries (ingress): 10000 ¦ Port-based ACL entries (ingress): 40000 ¦ Ingress routed ACL: 40000 ¦ ARP entries: 32000 ¦ Link Access Groups (LAGs): 128 ¦ Maximum number of mirroring sessions: 4 ¦ QoS hardware queues per port (multicast): 2 ¦ QoS hardware queues per port (unicast): 8 |
| MAC Address Table Size | 160K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | BGP |
| Features | EVPN, VXLAN, 5+1 redundant fans, hot-swappable fan units, JTI, ZTP |
| Built-in Devices | 6 x fans, 2 x 50 GB SSD |
| Expansion / Connectivity | |
| Interfaces | 32 x 400Gbit LAN QSFP-DD ¦ 2 x 10Gbit LAN SFP+ ¦ 1 x console RJ-45 ¦ 1 x management ¦ 1 x USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | DC |
| Power Consumption Operational | 341 watt |
| Software / System Requirements | |
| Software Included | Junos OS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 86 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 21.1 in |
| Height | 1.7 in |
| Compatibility Information | |
| Designed For | P/N: APBR-ADP-CR9, APBR-ADP-CSC, APBR-ADP-M16, APBR-ADP-RT15, APBR-ADP-WS15, APBR-M16, APBR-SW1, APBR-T58, APBR-U, APBRU-M16, APBRU-T12, APOUTBR-ART, APOUTBR-ART2, APOUTBR-FM, APOUTBR-FM2, APWP-KIT, DC-01 |
