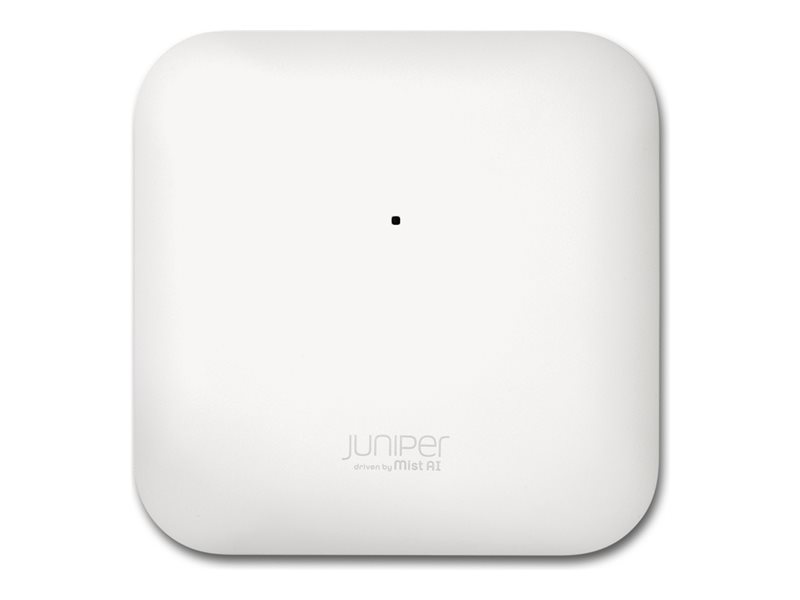

Wireless access point - with 3-year Cloud Subscription (default service is SUB-MAN) - Wi-Fi 7, Bluetooth - Wi-Fi 7, Bluetooth - 2.4 GHz, 5 GHz, 6 GHz - cloud-managed
| Main Specifications | |
|---|---|
| Product Description | Juniper AP47D - wireless access point - Wi-Fi 7, Bluetooth - cloud-managed - with 3-year Cloud Subscription (default service is SUB-MAN) |
| Device Type | Wireless access point |
| Bundled Services | 3-year Cloud Subscription (default service is SUB-MAN) |
| Form Factor | External - indoor |
| Data Link Protocol | IEEE 802.11be (Wi-Fi 7), IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (2.4 GHz): 1376 Mbps ¦ Maximum data rate (5 GHz): 5764 Mbps ¦ Maximum data rate (6 GHz): 11528 Mbps |
| Included Accessories | Mounting bracket |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 10 in x 10 in x 2.4 in |
| Weight | 4.41 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Bundled Services | 3-year Cloud Subscription (default service is SUB-MAN) |
| Ruggedized Design | Indoor |
| Built-in Devices | Temperature sensor, accelerometer |
| Width | 10 in |
| Depth | 10 in |
| Height | 2.4 in |
| Weight | 4.41 lbs |
| Expansion / Connectivity | |
| Interfaces | 2 x 100M/1G/2.5/5/10 Gigabit Ethernet - RJ-45 ¦ 1 x USB 2.0 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Mounting bracket |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11be (Wi-Fi 7), IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDMA |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (2.4 GHz): 1376 Mbps ¦ Maximum data rate (5 GHz): 5764 Mbps ¦ Maximum data rate (6 GHz): 11528 Mbps |
| Status Indicators | Status |
| Features | MACsec support, firmware upgradable, Wireless Intrusion Detection System (WIDS), Trusted Platform Module (TPM), reset button, Wireless Intrusion Prevention System (WIPS), radio resource management (RRM), MU-MIMO technology, SU-MIMO technology, guest access, 4x4:4 streams, vBLE technology, Spectrum Analysis, Transmit Beamforming, Maximum Ratio Combining (MRC), BSS Coloring, Target Wake Time (TWT), Juniper Mist Cloud Architecture, dynamic debugging, dynamic packet capture, Marvis Virtual Conversational Assistant, Multi-Link Operation (MLO) |
| Compliant Standards | IEEE 802.1ae, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.4 in |
| Shipping Depth | 11.5 in |
| Shipping Height | 3.5 in |
| Antenna | |
| Antenna | Internal |
| Directivity | Directional |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE) |
