Router 10GbE, 25GbE, 50GbE, 400GbE - front to back airflow - rack-mountable - for P/N: APBR-ADP-M16, APBRU-M16, APBRU-T12, APOUTBR-ART, APOUTBR-ART2, APOUTBR-FM2, APWP-KIT
| Main Specifications | |
|---|---|
| Product Description | Juniper Networks ACX7100 Series ACX7100-48L-DCI-K - router - rack-mountable |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 1U |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 400 Gigabit Ethernet |
| Performance | ASIC throughput: 4.8 Tbps |
| Network / Transport Protocol | L2TP, IPv4, IPv6, RSVP |
| Routing Protocol | RIP, RIPng, BGP, IS-IS, OSPFv2, OSPFv3, MPLS, RSVP, VRRP |
| Features | Full duplex mode, built-in ASIC, MPLS support, NVGRE, VXLAN, IRB, VLAN encapsulation, LACP, Jumbo Frames support, L2TP support, ACL support, LDP, LDP over RSVP, IPv4 support, IPv6 support, URPF, ECMP, VRRP support, L2VPN support, L3VPN support, VPLS, PTP, CFM, AAA, QoS, secure boot, SSH support, ZTP, DevID |
| Compliant Standards | IEEE 802.1BR, IEEE 802.1ad, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 1588v2 |
| Power | DC 48 - 60 V |
| Dimensions (WxDxH) | 17.4 in x 23.4 in x 1.8 in |
| Weight | 26.9 lbs |
| Designed For | P/N: APBR-ADP-CR9, APBR-ADP-CSC, APBR-ADP-M16, APBR-ADP-RT15, APBR-ADP-WS15, APBR-M16, APBR-SW1, APBR-T58, APBR-U, APBRU-M16, APBRU-T12, APOUTBR-ART, APOUTBR-ART2, APOUTBR-FM, APOUTBR-FM2, APWP-KIT, DC-01 |
| General | |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 400 Gigabit Ethernet |
| Performance | ASIC throughput: 4.8 Tbps |
| Network / Transport Protocol | L2TP, IPv4, IPv6, RSVP |
| Routing Protocol | RIP, RIPng, BGP, IS-IS, OSPFv2, OSPFv3, MPLS, RSVP, VRRP |
| Features | Full duplex mode, built-in ASIC, MPLS support, NVGRE, VXLAN, IRB, VLAN encapsulation, LACP, Jumbo Frames support, L2TP support, ACL support, LDP, LDP over RSVP, IPv4 support, IPv6 support, URPF, ECMP, VRRP support, L2VPN support, L3VPN support, VPLS, PTP, CFM, AAA, QoS, secure boot, SSH support, ZTP, DevID |
| Compliant Standards | IEEE 802.1BR, IEEE 802.1ad, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 1588v2, CAN/CSA-C22.2 No. 60950-1, EN 60950-1:2006+A2:2013, UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 62368-1-14, EN 60825-1, EN 62368-1:2014, IEC 60950-1:2005/A2:2013, IEC 62368-1: 2014 Second Edition, UL 62368-1, AS/NZS CISPR 32 Class A, BSMI CNS 13438, CISPR 32 Class A, EMI, EN 300 386 V1.6.1, EN 300 386 V2.1.1, EN 55032 Class A, FCC CFR47 Part 15 A, ICES-003, KN32, NCC C6357, TEC, GR-1089-CORE, GR-63-CORE, SR-3580 NEBS Level 3, CISPR 24, EN55024, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, KN 61000-4-11, KN 61000-4-2, KN 61000-4-3, KN 61000-4-4, KN 61000-4-5, KN 61000-4-6, KN35, EN 55035, CISPR 35: 2016 |

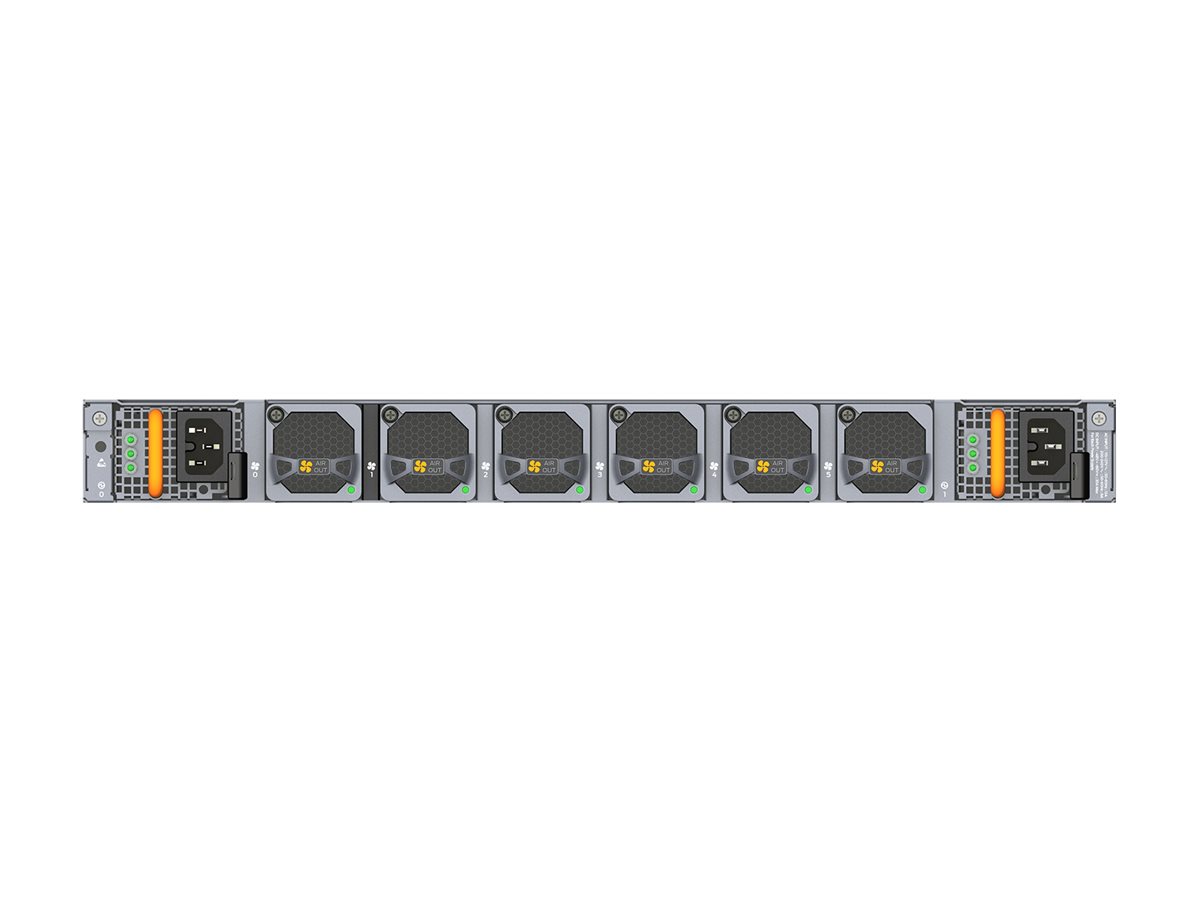

| Built-in Devices | 6 x fans |
| Expansion / Connectivity | |

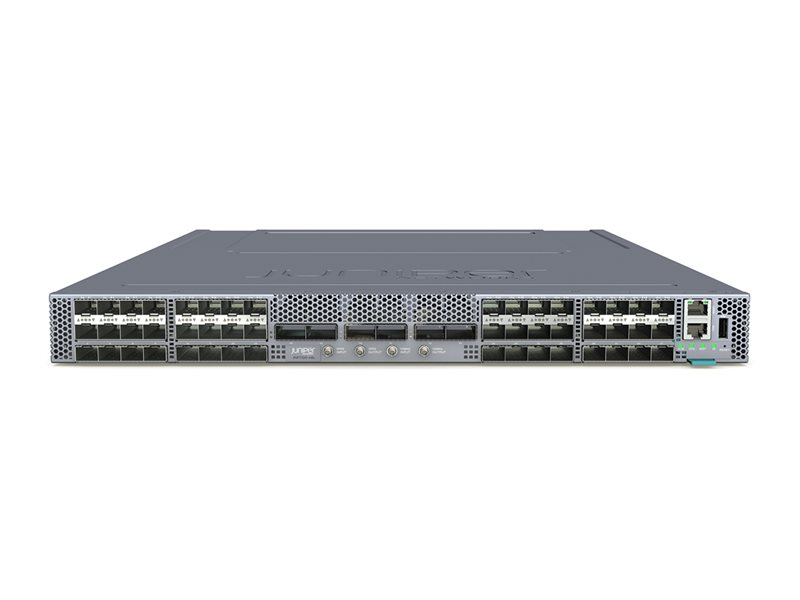

| Interfaces | 48 x 10Gb Ethernet / 25Gb Ethernet / 50Gb Ethernet - SFP56 ¦ 6 x 400Gb Ethernet - QSFP56-DD ¦ Management: 1 x RJ-45 ¦ Console: 1 x RJ-45 ¦ USB: 1 x ¦ Input / output - GPS |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | DC 48 - 60 V |
| Power Consumption Operational | 270 watt |
| Software / System Requirements | |
| OS Provided | JUNOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 23.4 in |
| Height | 1.8 in |
| Weight | 26.9 lbs |
| Compatibility Information | |
| Designed For | P/N: APBR-ADP-CR9, APBR-ADP-CSC, APBR-ADP-M16, APBR-ADP-RT15, APBR-ADP-WS15, APBR-M16, APBR-SW1, APBR-T58, APBR-U, APBRU-M16, APBRU-T12, APOUTBR-ART, APOUTBR-ART2, APOUTBR-FM, APOUTBR-FM2, APWP-KIT, DC-01 |
