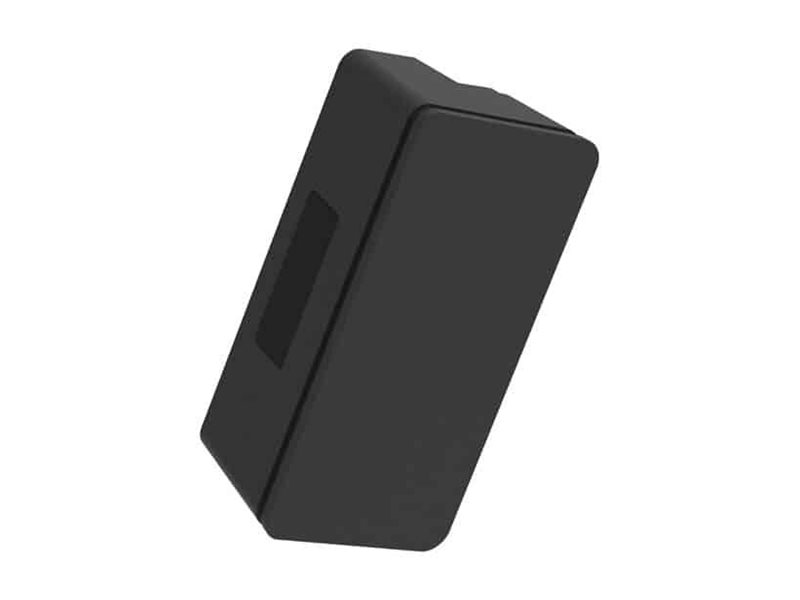

Barcode scanner - companion / stationary - 2D imager - decoded - USB
| Main Specifications | |
|---|---|
| Product Description | Custom - barcode scanner |
| Type | Barcode scanner - companion / stationary - USB - decoded |
| Color | Black |
| Scan Element Type | 2D imager - white LED / green LED |
| Sensor Resolution | 844 x 640 |
| Connectivity Technology | Wired |
| System Requirements | Windows, Android |
| Dimensions (WxDxH) | 3.3 in x 1.4 in x 1.7 in |
| Weight | 1.41 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Type | Barcode scanner - companion / stationary |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x micro-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Mounting screws |
| Power | |
| Electric Current Required | 375 mA (operating), 150 mA (sleep) |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| System Requirements | |
| OS Required | Windows, Android |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 1.4 in |
| Height | 1.7 in |
| Weight | 1.41 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.1 in |
| Shipping Depth | 4.4 in |
| Shipping Height | 2.2 in |
| Shipping Weight | 3.17 oz |
| Barcode | |
| Interface Type | USB |
| Scan Element Type | 2D imager - white LED / green LED |
| Sensor Resolution | 844 x 640 |
| Max Working Distance | 16.5 in |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 45 |
| Decode Capability | GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post, PDF417, MicroPDF417, GS1 DataBar Composites, Aztec code, Data Matrix, QR code, Micro QR code, MaxiCode, Han Xin, Intelligent Mail Barcode, Postal-4i, Australian Post, British Post, Canadian Post, Japanese Post, Kix (Netherlands) Post, Postnet, PLANET, OCR-A, OCR-B, MICR, UPC, EAN/JAN, NW-7 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper |
| Features | 6600SR barcode engine, Human Interface Device Profile (HID), USB keyboard emulation, presentation mode scanning |
