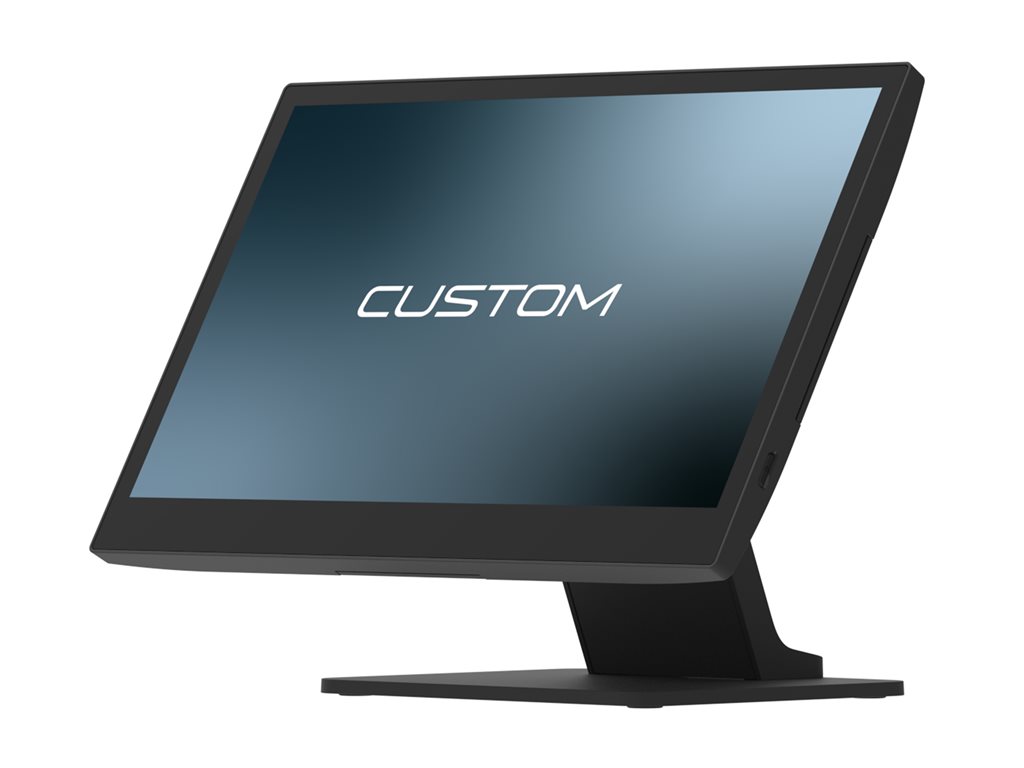

All-in-one 1 x N-series N97 / up to 3.6 GHz - RAM 8 GB - SSD 128 GB - UFS 2.1 - UHD Graphics - IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2, Gigabit Ethernet - no OS - monitor: LED 21.5" 1920 x 1080 (Full HD) touchscreen
| Main Specifications | |
|---|---|
| Product Description | Custom TREK - all-in-one N-series N97 - 8 GB - SSD 128 GB - LED 21.5" |
| Type | Point of sale terminal - all-in-one |
| Processor | 1 x Intel N-series N97 (up to 3.6 GHz, (Quad-Core) |
| Cache Memory | 6 MB |
| Cache Per Processor | 6 MB |
| RAM | 8 GB LPDDR4 SDRAM |
| Hard Drive | SSD 128 GB - UFS 2.1 |
| Optical Storage | No optical drive |
| Monitor | 21.5" - LED - 1920 x 1080 (Full HD) - touchscreen |
| Graphics Controller | Intel UHD Graphics |
| Networking | 802.11a, Wi-Fi 5, Wi-Fi 6, 802.11b/g/n, Bluetooth 5.2, 1GbE |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 22.5 in x 6.5 in x 13.2 in |
| Weight | 8.71 lbs |
| General | |
| Type | Point of sale terminal |
| Product Form Factor | All-in-one |
| Built-in Devices | Touch screen, 3W speaker |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 3.0 - Type A ¦ 2 x USB 2.0 - Type A ¦ 1 x USB-C 3.0 ¦ 3 x USB - micro-USB ¦ 1 x LAN - RJ-45 ¦ 1 x serial (RS-232) - RJ-48 ¦ 1 x cash drawer - RJ-11 ¦ 1 x Mini DisplayPort |
| Miscellaneous | |
| VESA Mounting Interface | 75 x 75 mm, VESA |
| RAM | |
| Installed Size | 8 GB |
| Technology | LPDDR4 SDRAM |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.2, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power adapter |
| Power Provided | 65 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 85% RH (non-condensing) |
| Cache Memory | |
| Installed Size | 6 MB |
| Cache Per Processor | 6 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED |
| Touchscreen | Yes (multi-touch) |
| Diagonal Size | 21.5" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Image Brightness | 310 cd/m² |
| Monitor Features | TouchPro Pro Projected Capacitive (PCAP) technology |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | SSD |
| Capacity | 1 x 128 GB |
| Features | UFS 2.1 |
| Dimensions & Weight | |
| Dimensions & Weight Details | 22.5 in - 6.5 in - 13.2 in - 8.7 lbs - with stand ¦ 22.5 in - 1.7 in - 12.2 in - 6.8 lbs - without stand |
| Width | 22.5 in |
| Depth | 6.5 in |
| Height | 13.2 in |
| Weight | 8.71 lbs |
| Processor / Chipset | |
| CPU | Intel N-series N97 |
| Max Turbo Speed | 3.6 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
