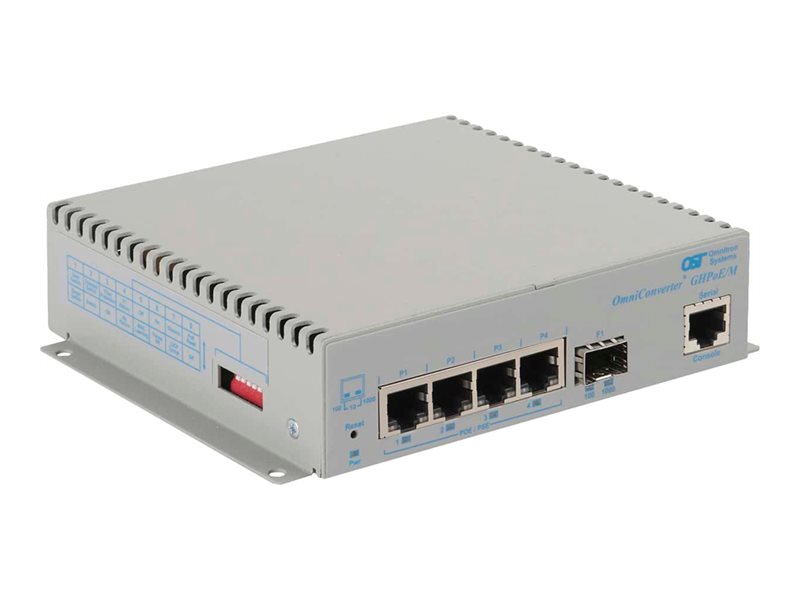

Switch - managed - 4 x 10/100/1000 (PoE) + 2 x 1000Base-X SFP - desktop, wall-mountable - PoE (100 W) - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Omnitron - switch - 6 ports - managed - TAA Compliant |
| Device Type | Switch - 6 ports - managed |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE) + 2 x 1000Base-X SFP |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 100 W |
| Jumbo Frame Support | 10240 bytes |
| Remote Management Protocol | Telnet, HTTP, SSH, SNMP 1, SNMP 2, SNMP 3, SMTP, RSTP |
| Features | Link Aggregation, VLAN Tagging, DHCP relay, IGMP snooping |
| Compliant Standards | IEEE 802.1x, IEEE 802.1w, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.1ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Dimensions (WxDxH) | 6.3 in x 5.2 in x 1.5 in |
| Weight | 25.92 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Switch - 6 ports - managed |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE) + 2 x 1000Base-X SFP |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 100 W |
| Jumbo Frame Support | 10240 bytes |
| Remote Management Protocol | Telnet, HTTP, SSH, SNMP 1, SNMP 2, SNMP 3, SMTP, RSTP |
| Authentication Method | RADIUS, TACACS+ |
| Features | Link Aggregation, VLAN Tagging, DHCP relay, IGMP snooping |
| Compliant Standards | IEEE 802.1x, IEEE 802.1w, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.1ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T RJ-45 PoE ¦ 2 x 1000Base-X SFP ¦ 1 x serial (console) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years ¦ Limited warranty - power supply - 2 years ¦ Technical support |
| Miscellaneous | |
| MTBF | 266,000 hours |
| Compliant Standards | IEC 62439-2, UL 60950-1, UL 62368-1, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1-14, CISPR 32, EN 55032, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011+A2:2013, EN55024, FCC CFR47 Part 15 B Class A, IEC 60950-1:2005 + A1:2009, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014, IP20, REACH, RoHS, WEEE |
| TAA Compliant | Yes |
| Software / System Requirements | |
| Software Included | Omnitron NetOutlook |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 176 °F |
| Dimensions & Weight | |
| Width | 6.3 in |
| Depth | 5.2 in |
| Height | 1.5 in |
| Weight | 25.92 oz |
