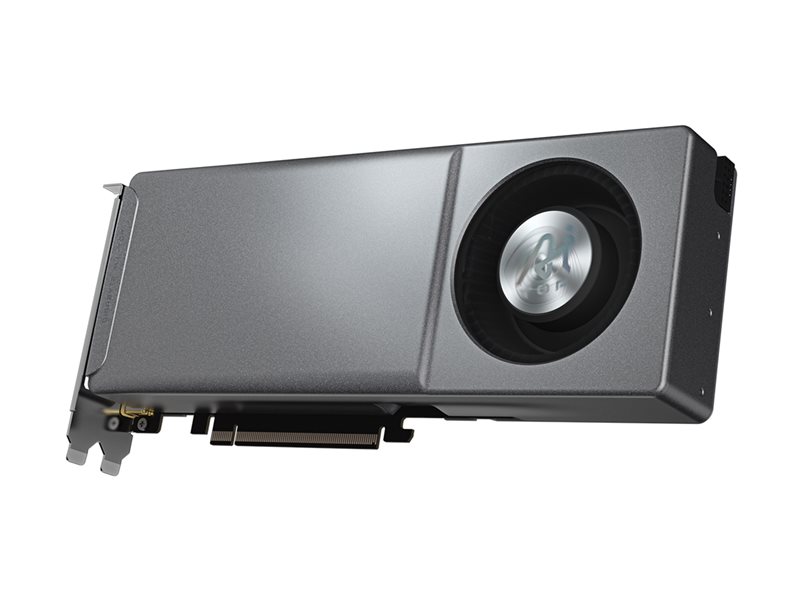

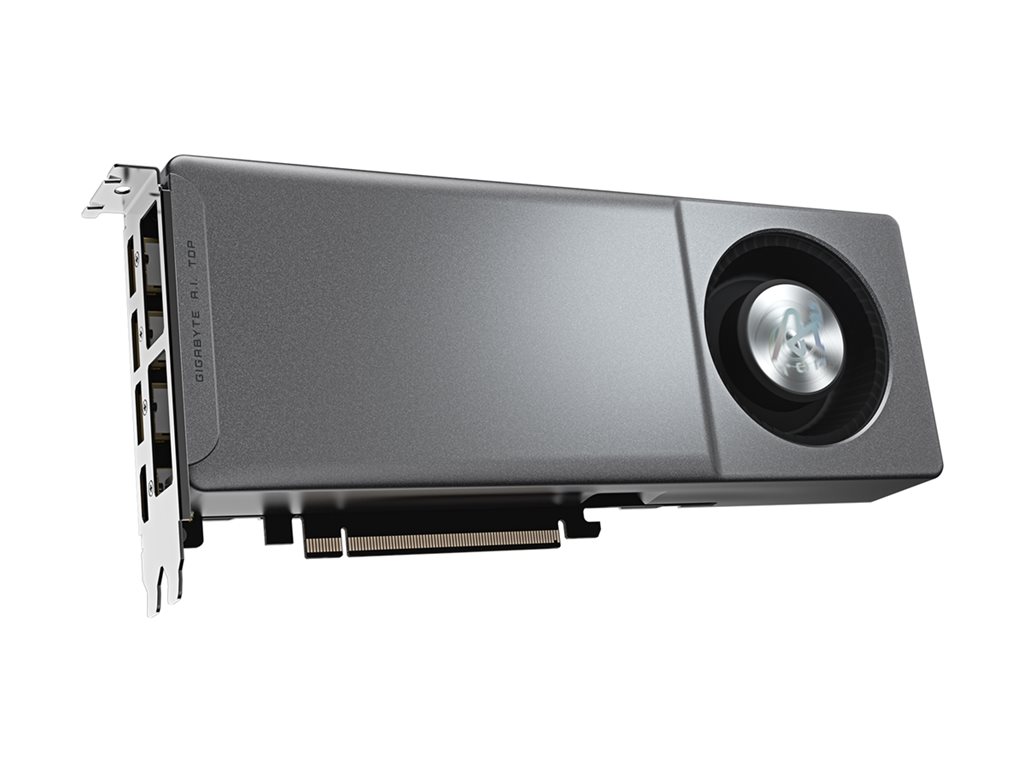

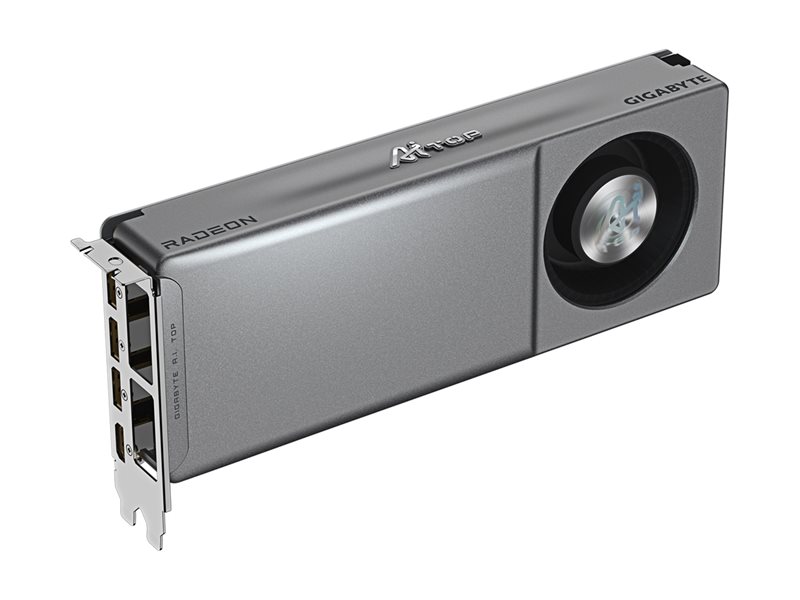

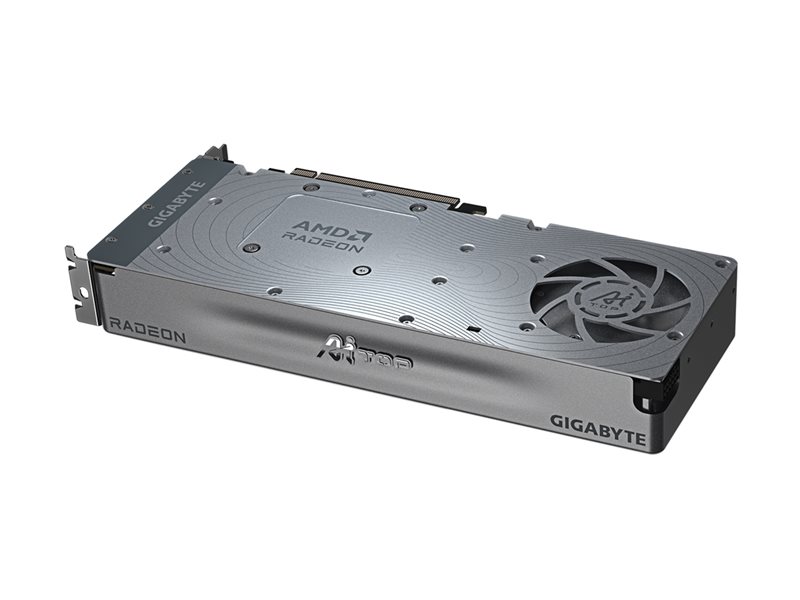

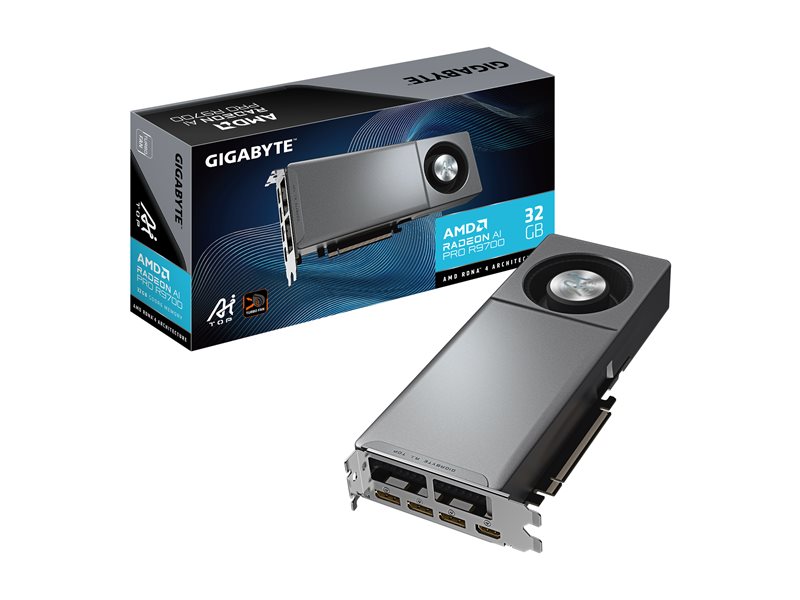

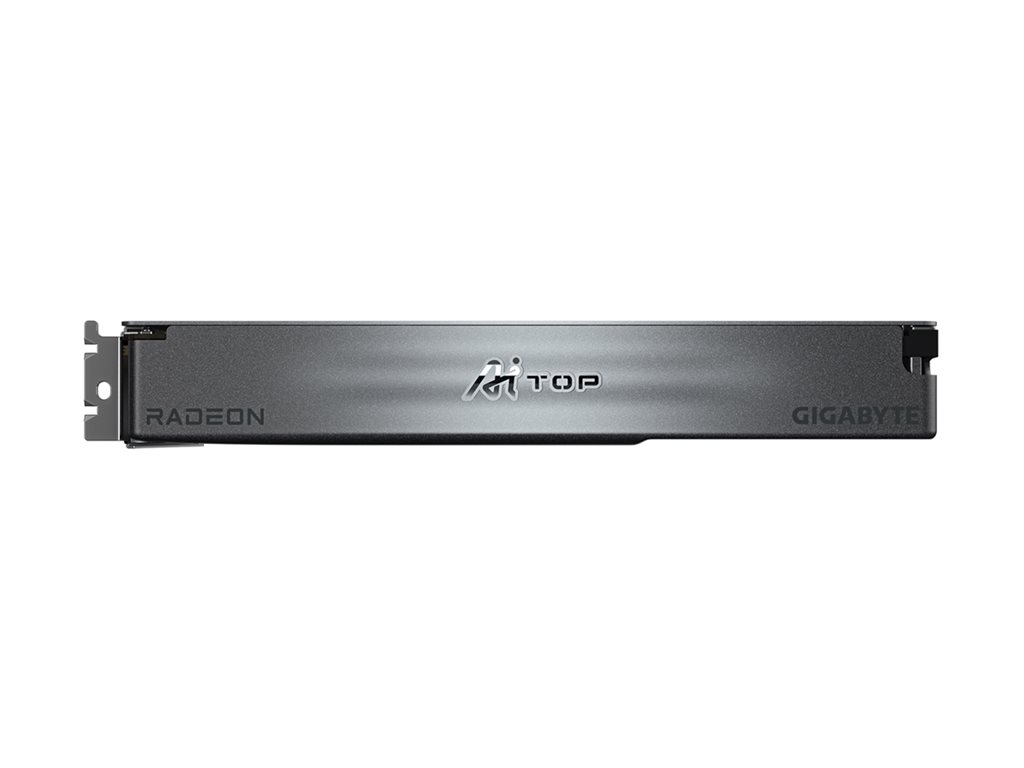

Rev 1 - graphics card - Radeon AI PRO R9700 - 32 GB GDDR6 - PCIe 5.0 x16 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | Gigabyte AI TOP - Rev 1 - graphics card - Radeon AI PRO R9700 - 32 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 |
| Graphics Engine | AMD Radeon AI PRO R9700 - up to 1531 TOPS |
| Memory | 32 GB GDDR6 |
| Boost Clock | 2920 MHz |
| Stream Processors | 4096 |
| Effective Memory Clock | 20000 MHz |
| Memory Interface | 256-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |

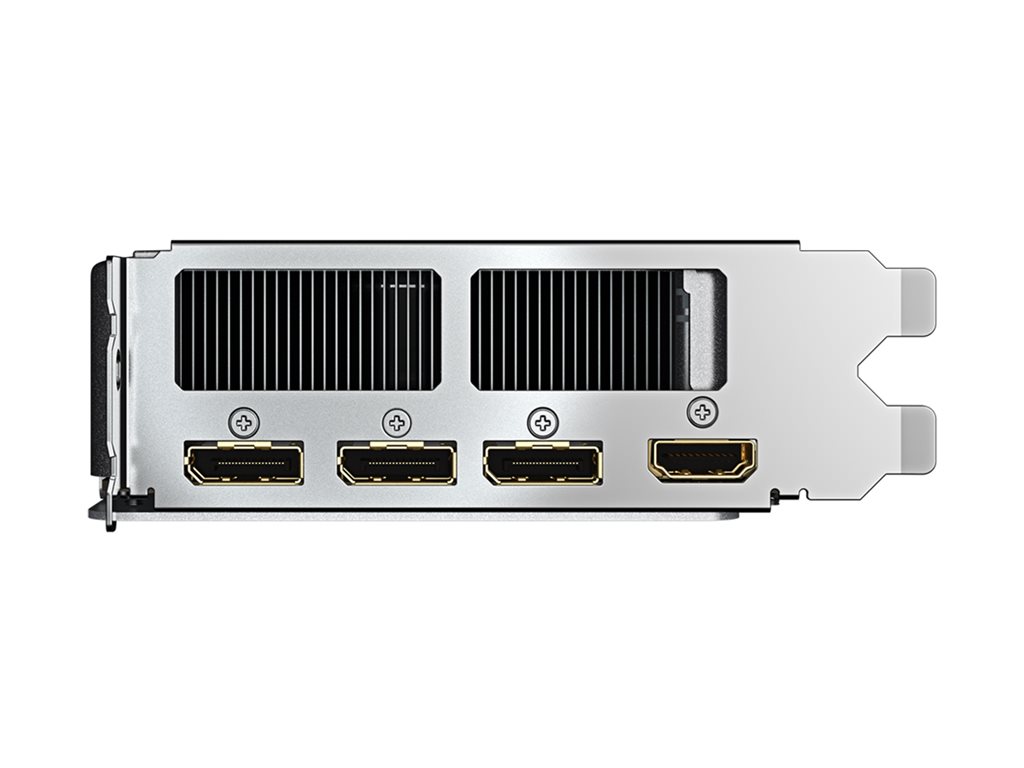

| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12, OpenGL 4.6 |
| Dimensions (WxDxH) | 1.6 in x 10.5 in x 4.4 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 |
| Graphics Engine | AMD Radeon AI PRO R9700 |
| Boost Clock | 2920 MHz |
| Stream Processors | 4096 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12, OpenGL 4.6 |
| Features | Single Fan Design, metal backplate, dust resistant, moisture resistant, corrosion resistant, Ultra Durable VGA, all-metal cover, composite metal grease, copper heatsink, Dual ball Bearing Fan, server-grade thermal conductive gel, Vapor chamber cooling technology, Turbo Fan Cooling System, 64 AMD RDNA 4 compute units, 128 AI Accelerators, 64 Ray Accelerators, 47.8 Tflops peak single-precision (FP32) performance, 95.7 Tflops peak half-precision (FP16) performance, 128 ROPs, Dual Slot Fan Cooler, 4K H264 decode and encode support, 4K H265/HEVC decode and encode support, AV1 decode support, AV1 encode support |
| Memory | |
| Size | 32 GB |
| Technology | GDDR6 SDRAM |
| Effective Clock Speed | 20000 MHz |
| Bus Width | 256-bit |
| Bandwidth | 640 GBps |
| Miscellaneous | |
| Included Accessories | 16-pin to 2x 8-pin cable adapter |
| Compliant Standards | DisplayPort 2.1a |
| Width | 1.6 in |
| Depth | 10.5 in |
| Height | 4.4 in |
| System Requirements | |
| Required Power Supply | 750 W |
| Additional Requirements | 16 pin PCI Express power connector |
| Performance | |
| NPU Performance Up To (TOPS) | 1531 TOPS |
| AI Datatype Support on NPU | INT4 |
