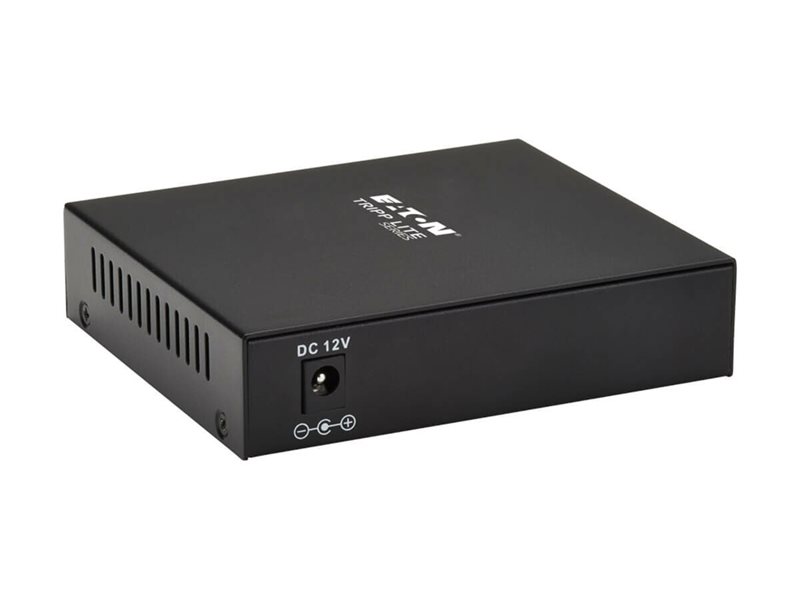

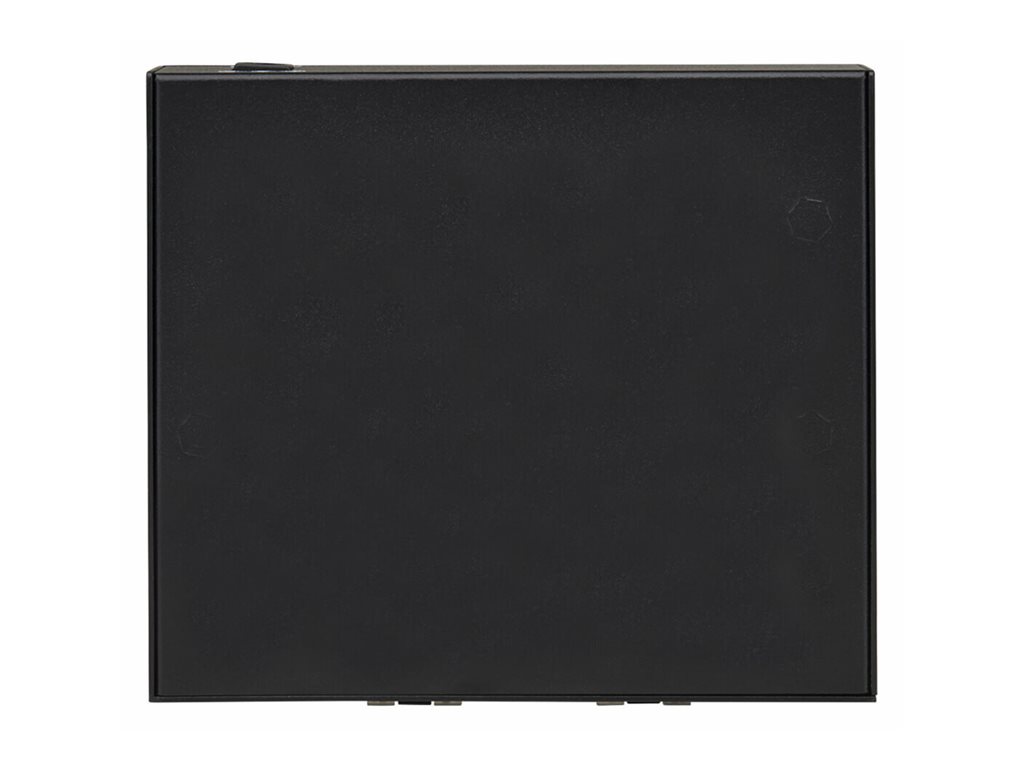

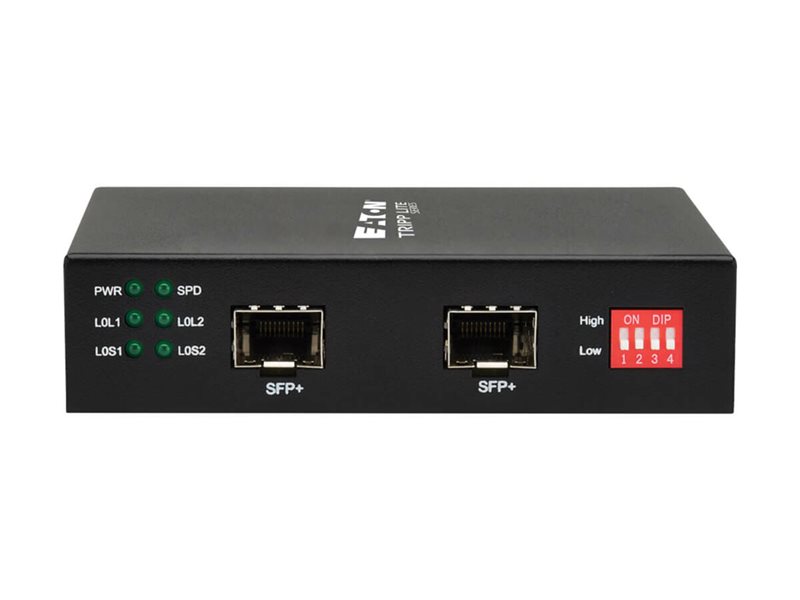

Fiber media converter - 10GbE - 1000Base-FX, 1000Base-TX - SFP+ / SFP+ - up to 49.7 miles - 1310 / 1550 nm
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| Device Type | Fiber media converter - SFP+ / SFP+ |
| Form Factor | Desktop |
| Cabling Type | 1000Base-FX, 1000Base-TX |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1310 / 1550 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| Max Transfer Distance | 49.7 miles |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 2.9 in x 4.3 in x 0.9 in |
| Weight | 29.98 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | Desktop |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 2 x 10Gb Ethernet - SFP+ female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty |
| Miscellaneous | |
| Included Accessories | 4 power plug adapters |
| Cables Included | 1 x power cable - 4.6 ft |
| Compliant Standards | OM3, OM4, OM5, OS2, FCC, GS, LPS, TUV, UL, WEEE, CU, CAN/CSA-C22.2 No. 62368-1, FCC Part 15 Class B, IEC 62368-1, REACH, RoHS, UL 62368-1 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-FX, 1000Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1310 / 1550 nm |
| Max Transfer Distance | 49.7 miles |
| Status Indicators | Ethernet link/activity, fiber, power, signal detect fiber |
| Features | Single-mode, multimode, metal housing, built-in DIP switch, Digital Diagnostics Monitoring (DDM), rugged, half duplex mode, full duplex mode |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3z |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 80% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 2.9 in |
| Depth | 4.3 in |
| Height | 0.9 in |
| Weight | 29.98 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.5 in |
| Shipping Depth | 9.4 in |
| Shipping Height | 3 in |
