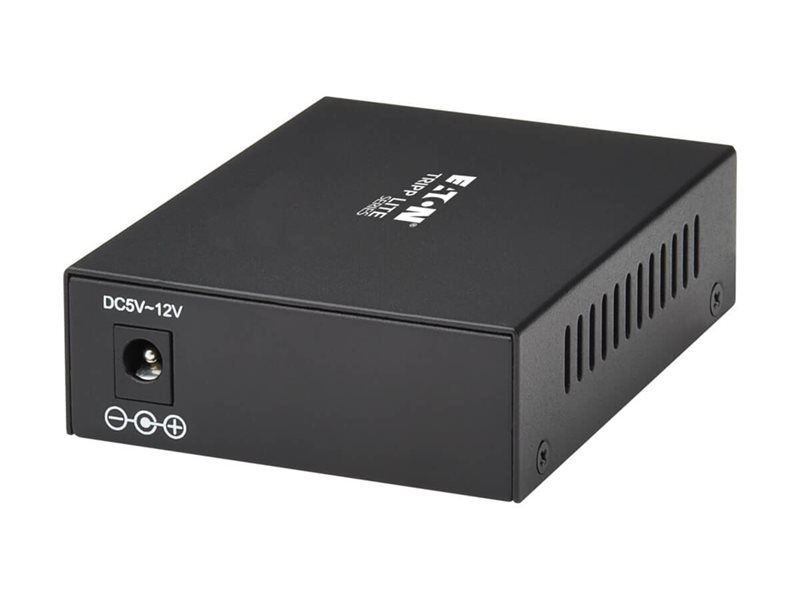

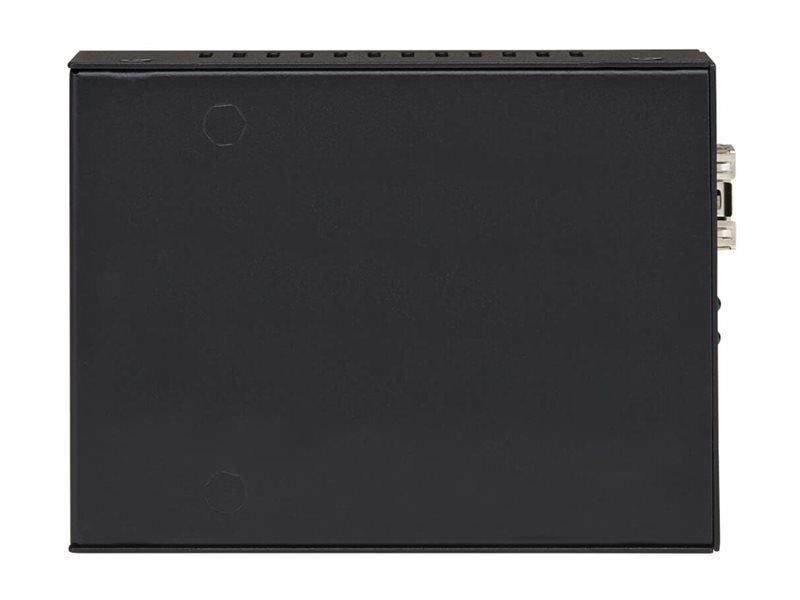

Fiber media converter - 10GbE, 2.5GbE - over CAT 5/5e/6/6a - 10GBase-T, 100Base-TX, 1000Base-T, 2.5GBase-T - SFP+ / RJ-45 - up to 49.7 miles - 850 nm / 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series - fiber media converter - 10GbE, 100Mb LAN, 1GbE, 2.5GbE |
| Device Type | Fiber media converter - SFP+ / RJ-45 |
| Form Factor | External |
| Cabling Type | 10GBase-T, 100Base-TX, 1000Base-T, 2.5GBase-T |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm / 1310 nm |
| Data Link Protocol | 10GbE, 100Mb LAN, 1GbE, 2.5GbE |
| Transmission Medium | CAT 5/5e/6/6a |
| Max Transfer Distance | 49.7 miles |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 2.9 in x 4.3 in x 0.9 in |
| Weight | 30.09 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-T - SFP+ female ¦ 1 x Ethernet 10GBase-T - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play, RoHS, GS, LPS, TUV, UL, WEEE, cUL, CAN/CSA-C22.2 No. 62368-1, FCC Part 15 Class B, IEC 62368-1, REACH, UKCA, UL 62368-1, OM3, OM4, OM5, OS2 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-T, 100Base-TX, 1000Base-T, 2.5GBase-T |
| Data Link Protocol | 10GbE, 100Mb LAN, 1GbE, 2.5GbE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm / 1310 nm |
| Max Transfer Distance | 49.7 miles |
| Status Indicators | Power, link/activity, signal detect fiber, speed |
| Features | Auto-uplink (auto MDI/MDI-X), metal housing, half/full duplex mode |
| Compliant Standards | IEEE 802.3x |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 10 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 80% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 2.9 in |
| Depth | 4.3 in |
| Height | 0.9 in |
| Weight | 30.09 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.1 in |
| Shipping Depth | 9.4 in |
| Shipping Height | 2.4 in |
