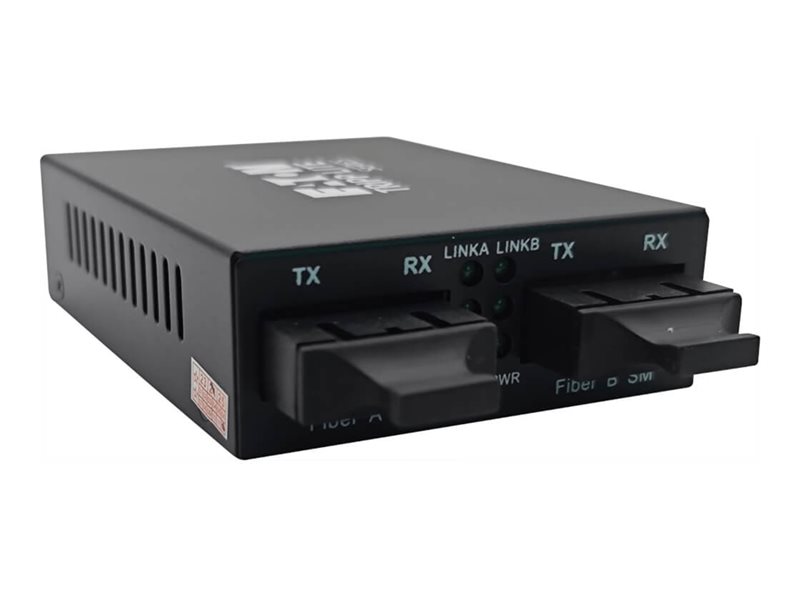

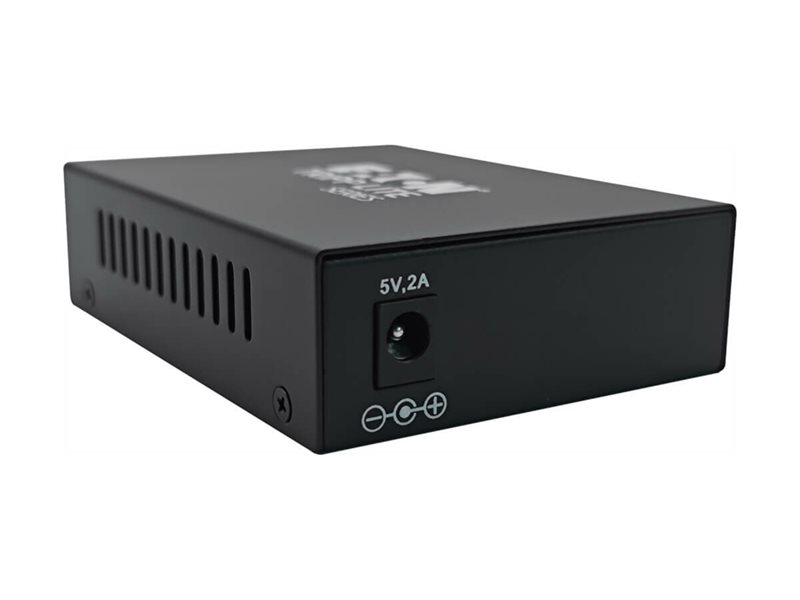

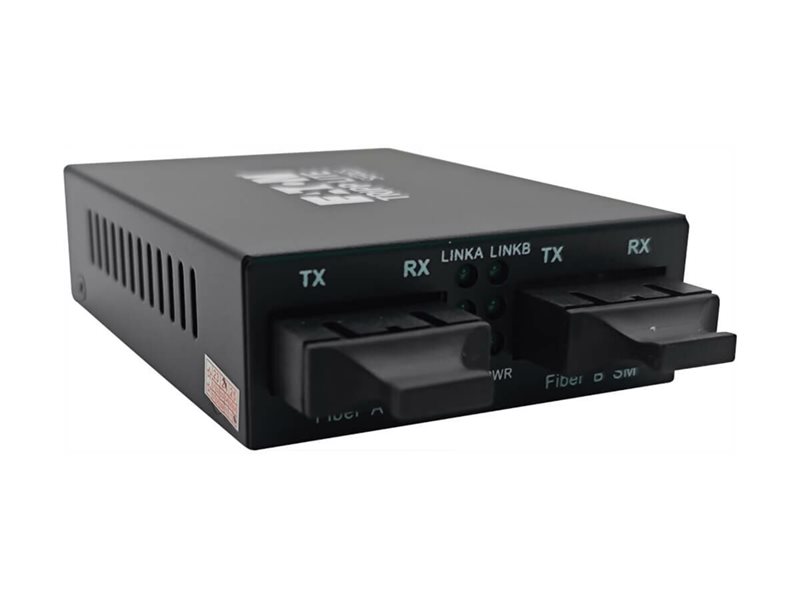

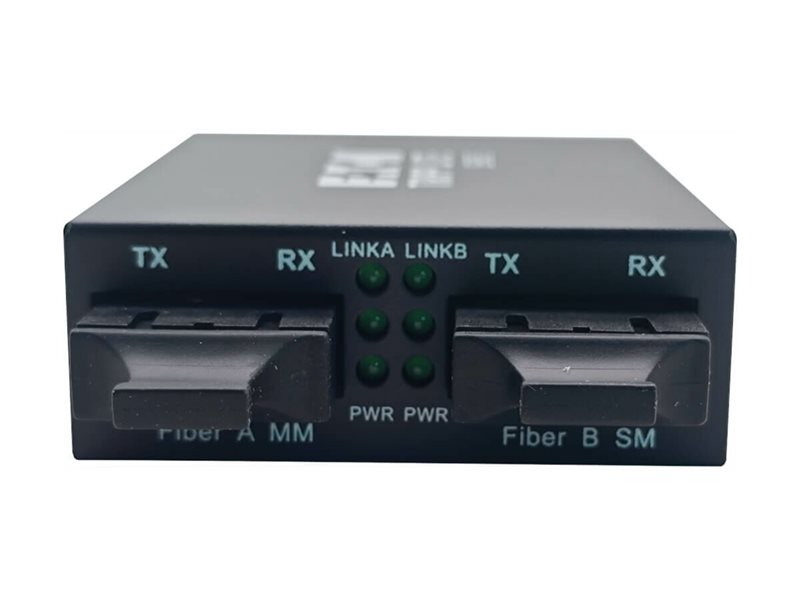

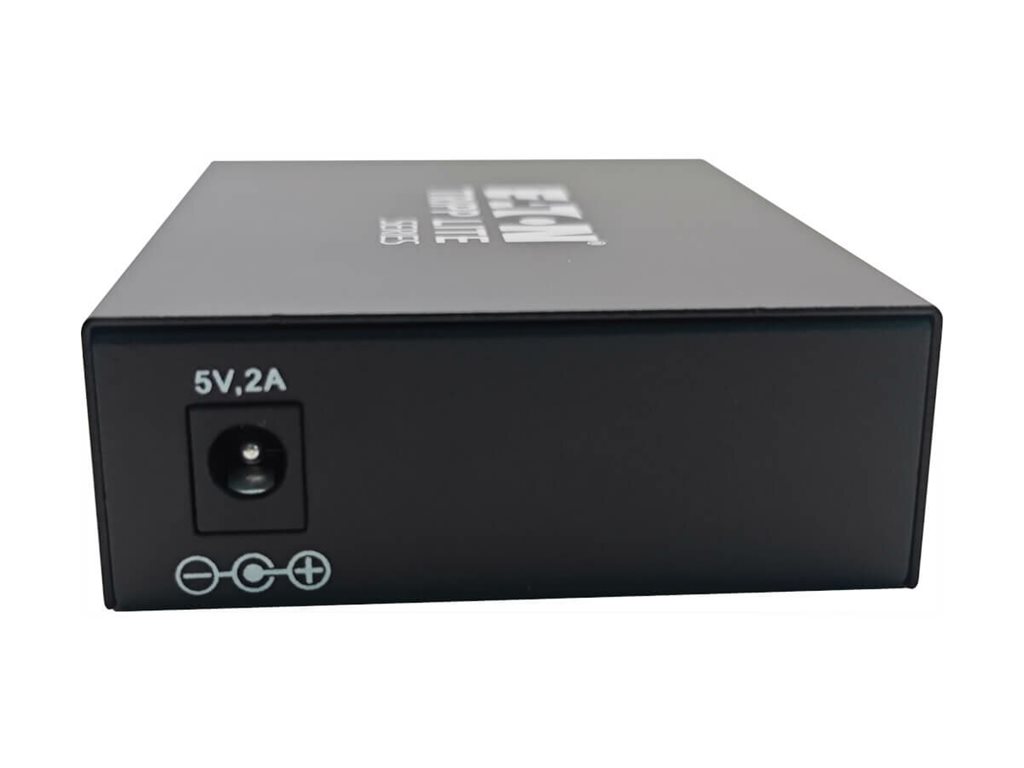

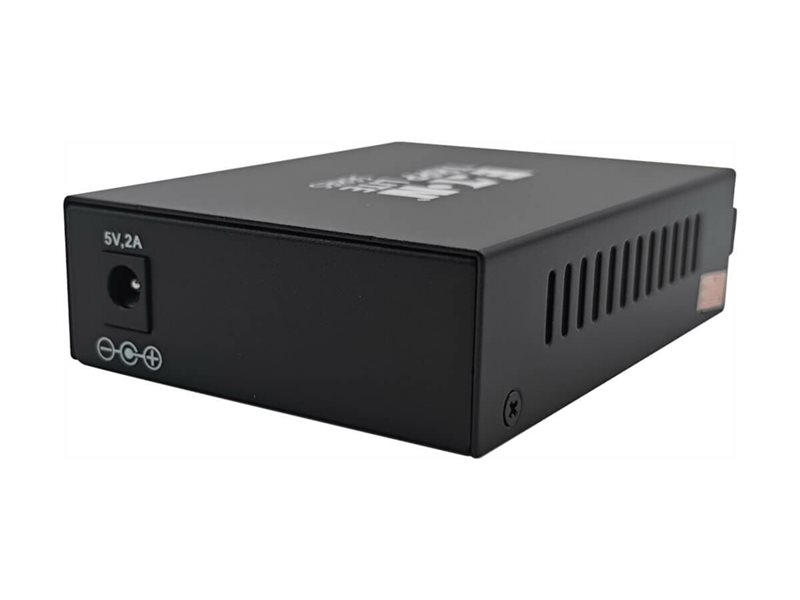

Fiber media converter - 100Mb LAN - 10/100/1000Base-RX, 10/100Base-TX - SC multi-mode / SC single-mode - up to 37.3 miles - 850 nm / 1300 nm / 1310 nm / 1550 nm
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series - fiber media converter - 10Mb LAN, 100Mb LAN |
| Device Type | Fiber media converter - SC multi-mode / SC single-mode |
| Form Factor | External |
| Cabling Type | 10/100/1000Base-RX, 10/100Base-TX |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 850 nm / 1300 nm / 1310 nm / 1550 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Max Transfer Distance | 37.3 miles |
| Dimensions (WxDxH) | 2.9 in x 4.3 in x 0.9 in |
| Weight | 29.98 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10/100Base-TX - SC multi-mode female ¦ 1 x Ethernet 10/100Base-TX - SC single-mode female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 4 power plug adapters |
| Compliant Standards | OM1, OM2, OM3, OS2, Plug and Play, FCC, GS, LPS, TUV, UL, WEEE, cUL, CAN/CSA-C22.2 No. 62368-1, IEC 62368-1, REACH, RoHS, UL 62368-1, FCC Part 15 Class B |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10/100/1000Base-RX, 10/100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 850 nm / 1300 nm / 1310 nm / 1550 nm |
| Max Transfer Distance | 37.3 miles |
| Status Indicators | Diagnostic, fail, link/speed, power, signal strength, status |
| Features | Metal housing, rugged, multimode, single-mode, half duplex mode, full duplex mode |
| Compliant Standards | IEEE 802.3u |
| Power | |
| Power Device | External power adapter |
| Voltage Required | (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 2.9 in |
| Depth | 4.3 in |
| Height | 0.9 in |
| Weight | 29.98 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.1 in |
| Shipping Depth | 9.4 in |
| Shipping Height | 2.4 in |
