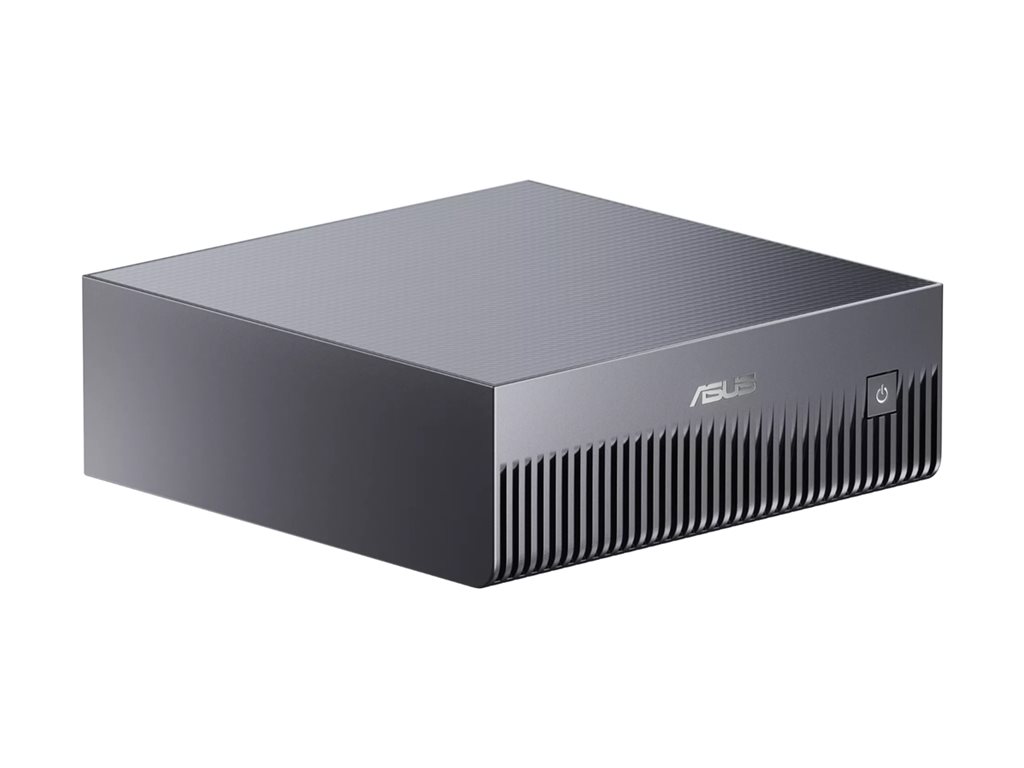

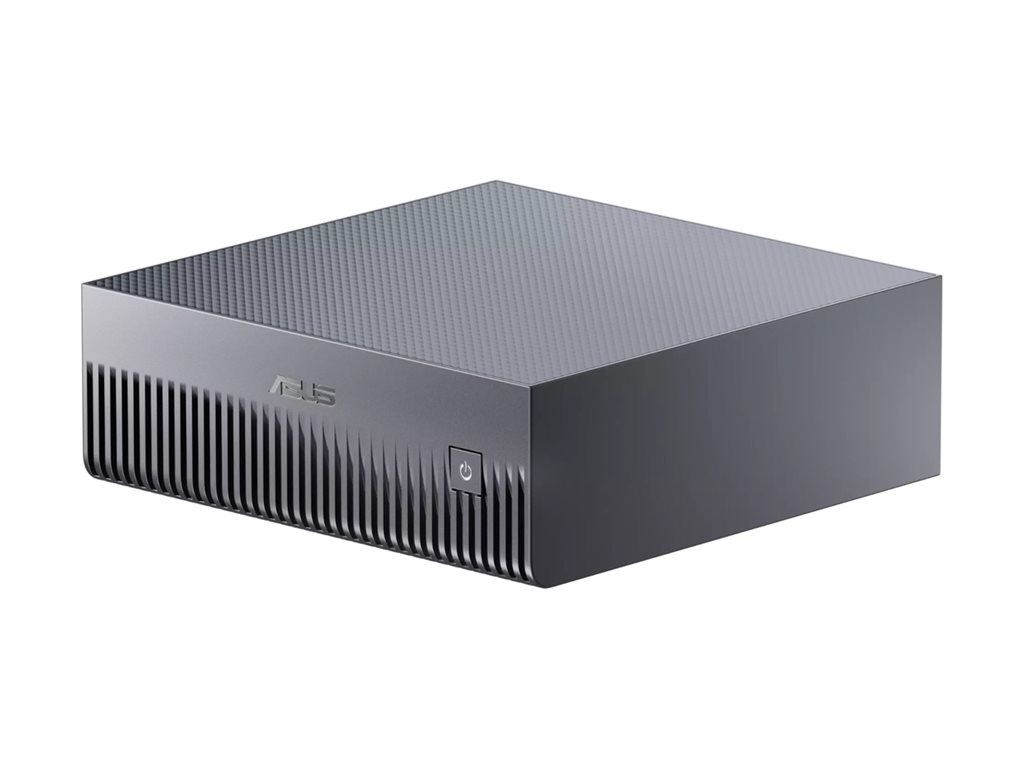

Mini PC GB10 Grace Blackwell Superchip v9.2-A - RAM 128 GB - SSD 1 TB - NVIDIA Blackwell - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7) - NVIDIA DGX Base OS - monitor: none - stellar gray
| Main Specifications | |
|---|---|
| Product Description | ASUS Ascent GX10 - mini PC GB10 Grace Blackwell Superchip v9.2-A - 128 GB - SSD 1 TB |
| Type | Personal computer - mini PC |
| Processor | NVIDIA GB10 Grace Blackwell Superchip v9.2-A (20-core) |
| RAM | 128 GB LPDDR5X SDRAM |
| Hard Drive | SSD 1 TB - PCI Express 4.0 x4 - M.2 |
| Optical Storage | No optical drive |
| Graphics Controller | NVIDIA Blackwell |
| Networking | 1GbE, 2.5GbE, 5GbE, 10GbE, Bluetooth 5.0, 802.11a, Wi-Fi 5, Wi-Fi 6, Wi-Fi 7, 802.11b/g/n |
| OS Provided | NVIDIA DGX Base OS |
| Color | Stellar gray |
| Dimensions (WxDxH) | 5.9 in x 5.9 in x 2 in |
| Weight | 3.26 lbs |
| General | |
| Type | Personal computer |
| Product Form Factor | Mini PC |
| Color | Stellar gray |
| Expansion / Connectivity | |
| Slots | 1 (total) / 1 (free) x expansion slot (for NIC adapter) |

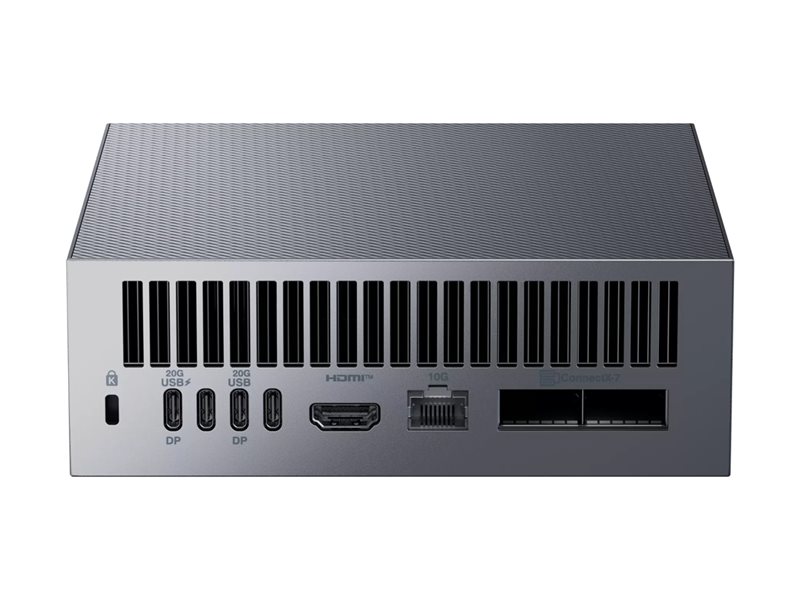

| Interfaces | 3 x USB-C 3.2 Gen 2x2/DisplayPort (3 rear) ¦ 1 x USB-C 3.2 Gen 2x2/DisplayPort (1 rear) (Power Delivery 3.1) ¦ 1 x HDMI (1 rear) ¦ 1 x LAN (10Gigabit Ethernet) (1 rear) |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | BSMI, CB, FCC, UL, CCC, C-Tick, VCCI |
| RAM | |
| Installed Size | 128 GB |
| Technology | LPDDR5X SDRAM |
| Configuration Features | Provided memory is soldered |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n |
| Power | |
| Device Type | Power adapter |
| Power Provided | 240 Watt |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | NVIDIA Blackwell |
| Video Interfaces | HDMI, USB-C |
| Operating System / Software | |
| OS Provided | NVIDIA DGX Base OS |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 x4 |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 5.9 in |
| Height | 2 in |
| Weight | 3.26 lbs |
| Processor / Chipset | |
| CPU | NVIDIA GB10 Grace Blackwell Superchip v9.2-A |
| Number of Cores | 20-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
